Engine Compartment, Headlights, UNDERHOOD

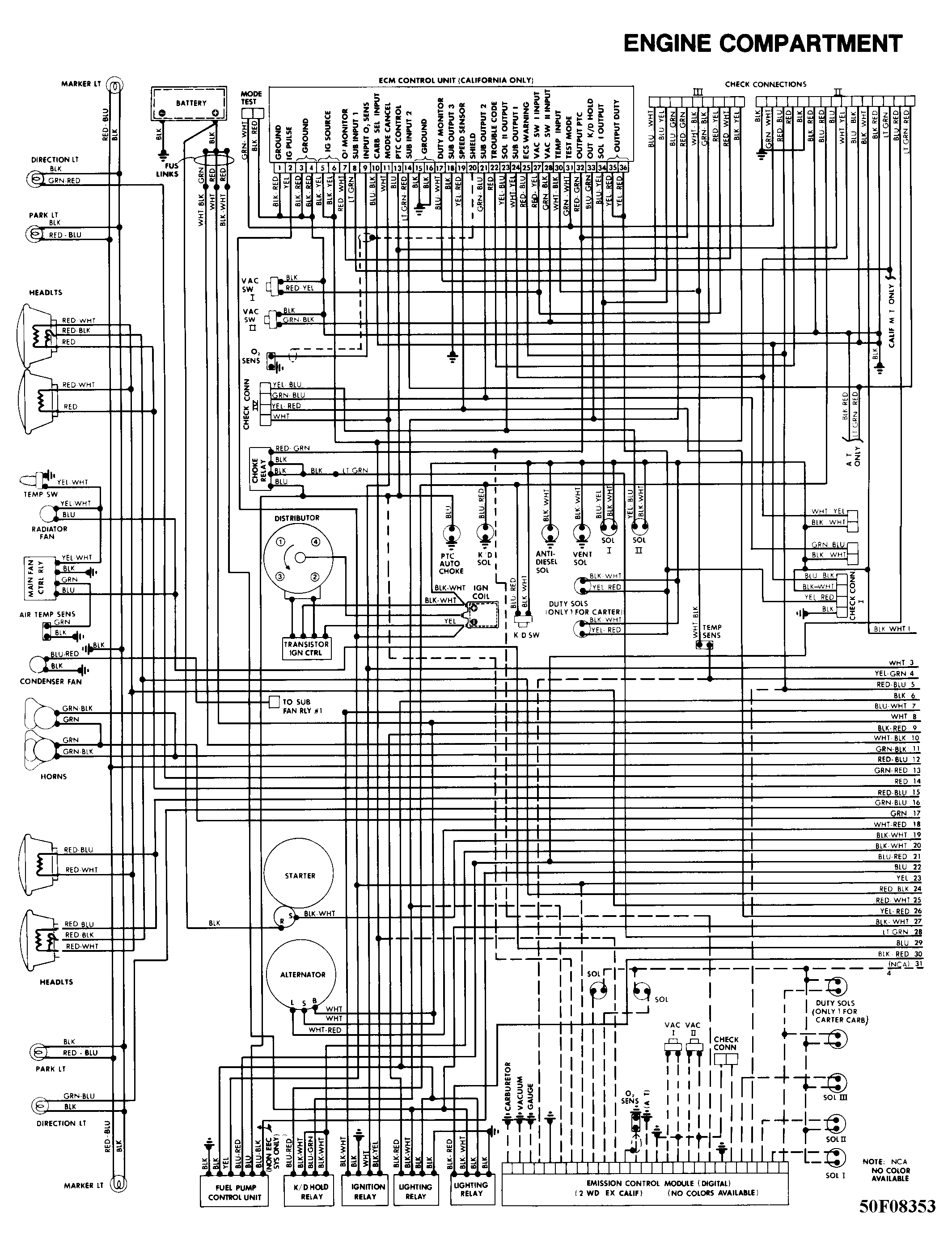

Fig 1: Engine Compartment, Headlights, Underhood

G50F08353
