Wiring Diagrams

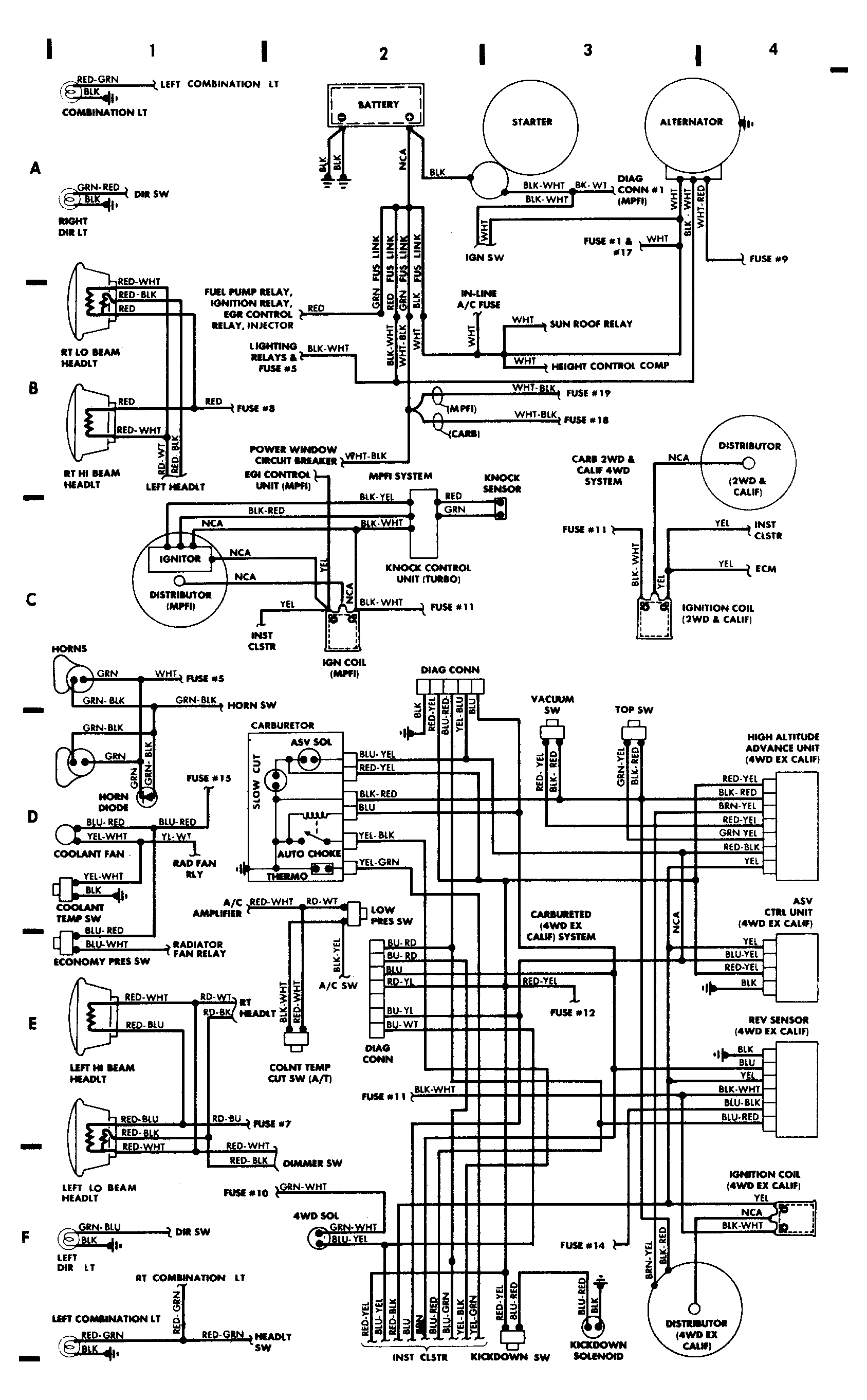

Fig 1: Engine Compartment, Headlights, Underhood

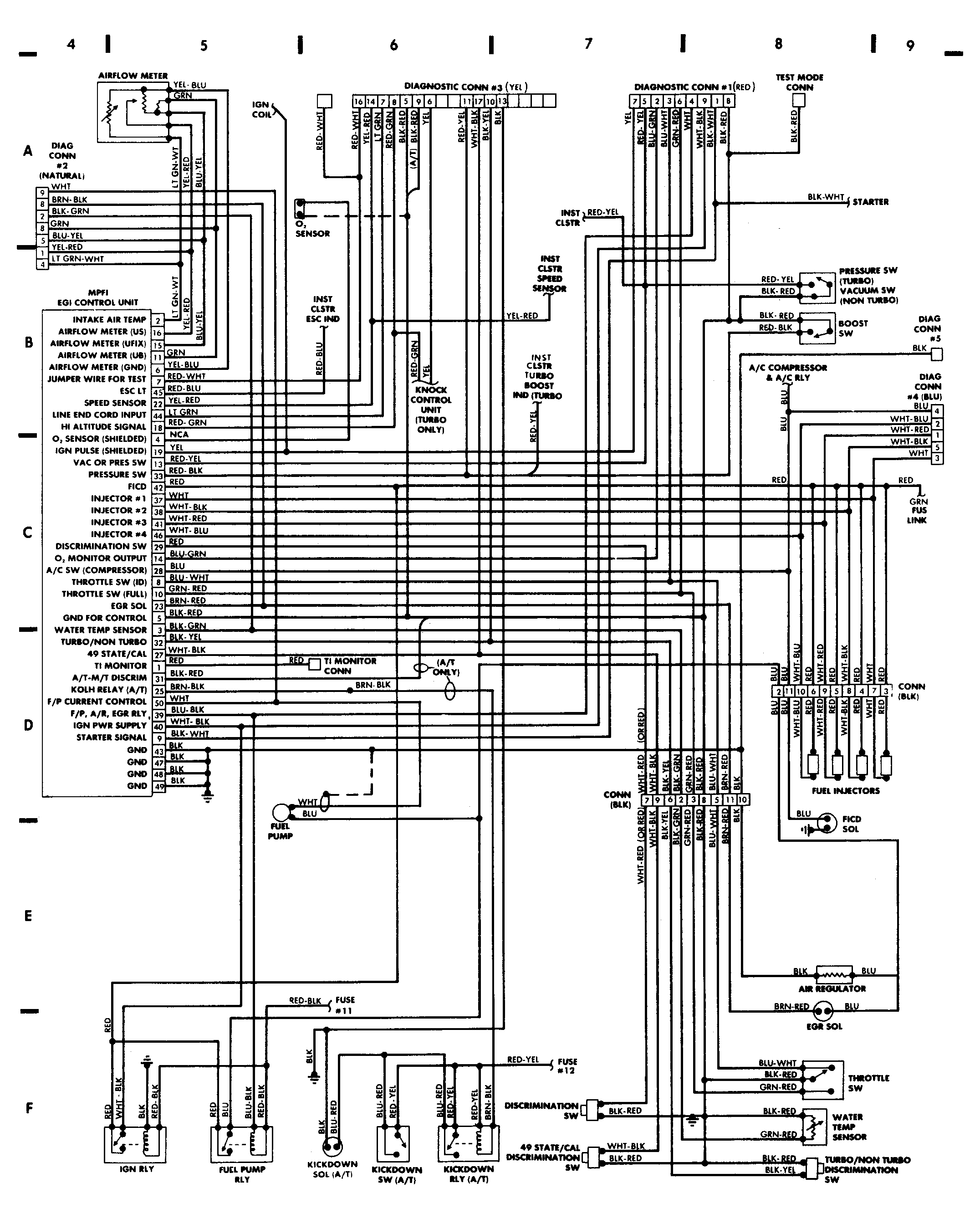

Fig 2: MPFI ECU, Diagnostic Connectors, Emission Control

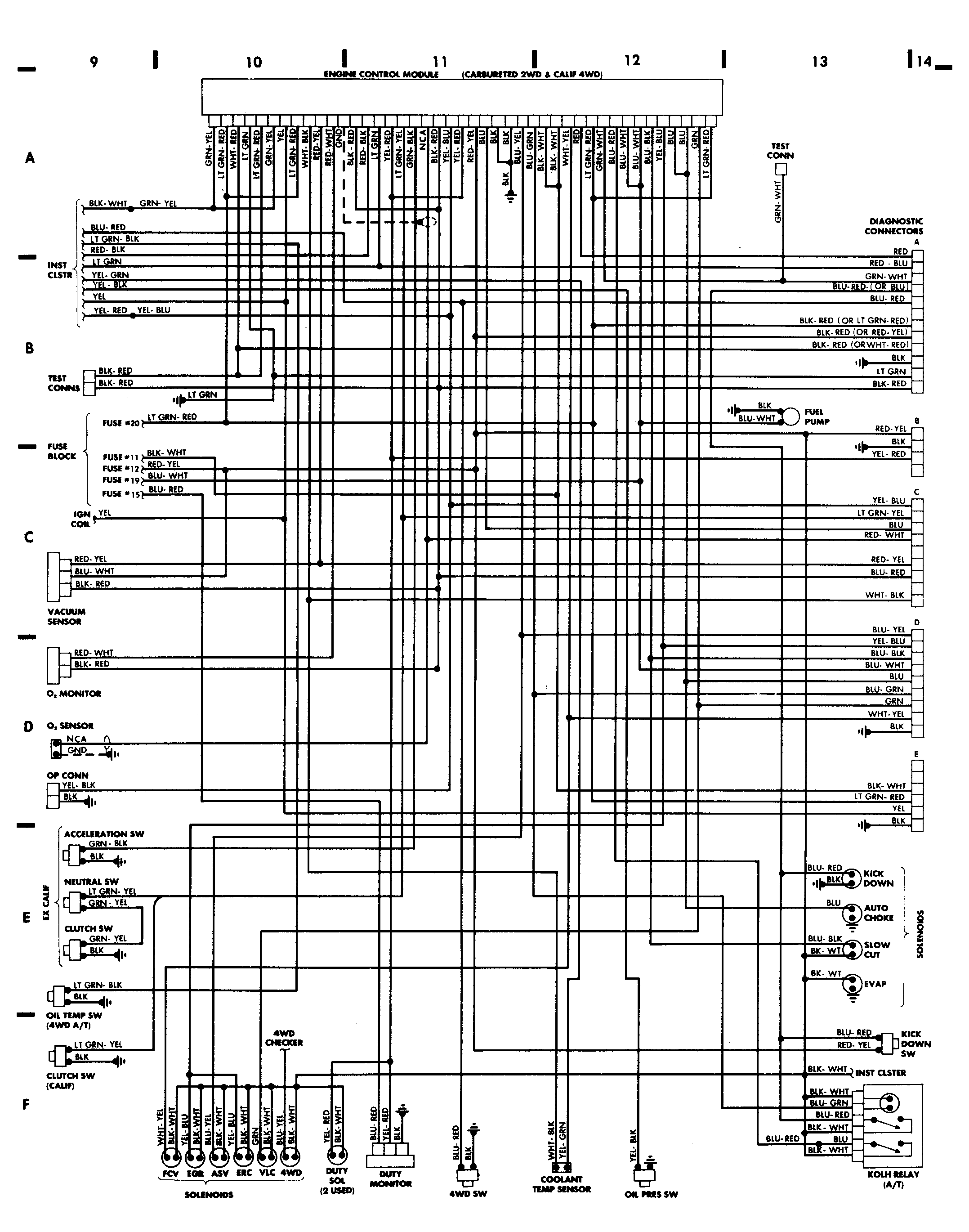

Fig 3: 2WD Carb. & Calif. 4WD ECU, Diagnostic Connectors & Emission Control Systems

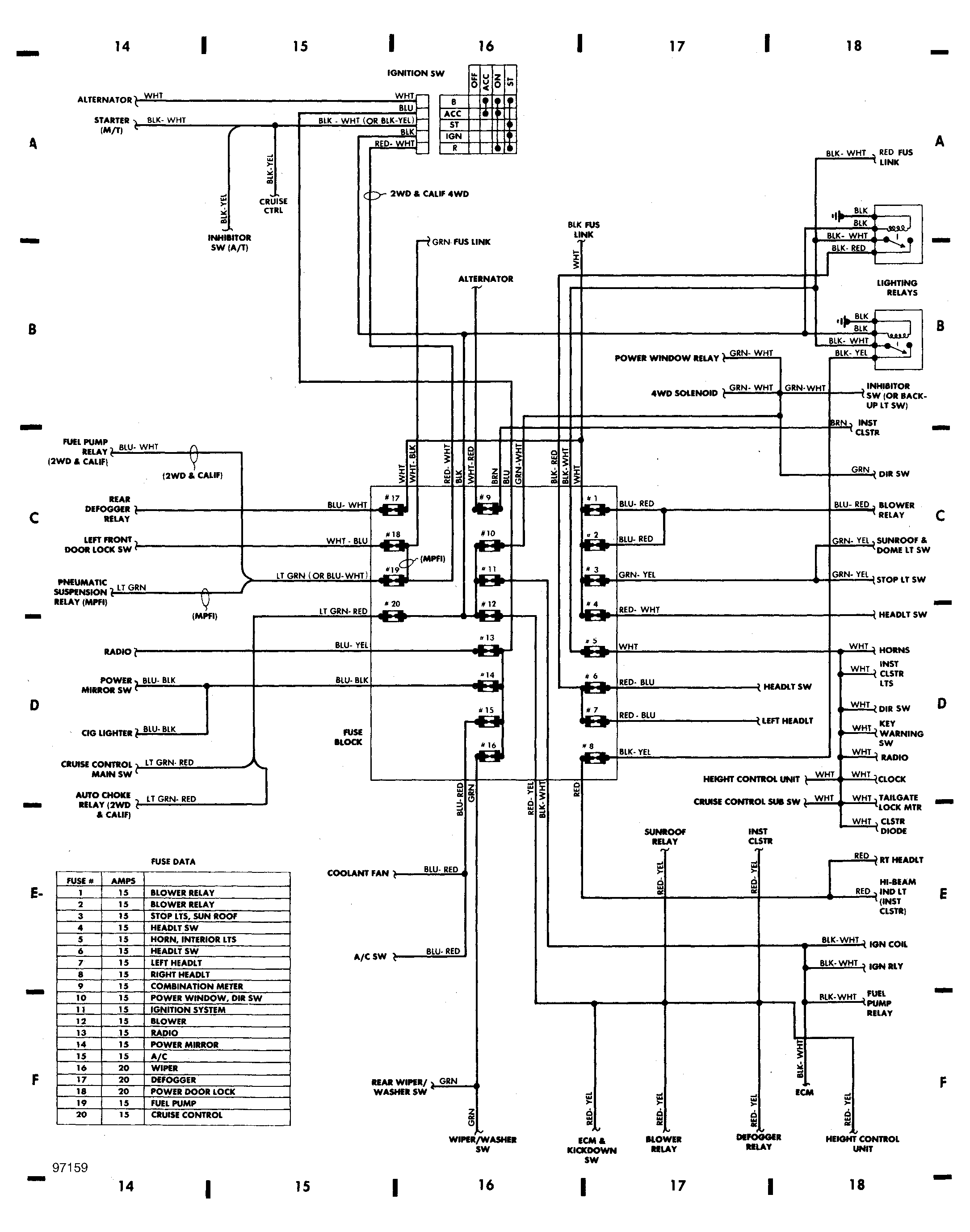

Fig 4: Fuse Block, Ignition Switch, Light Relays, Inhibitor Switch

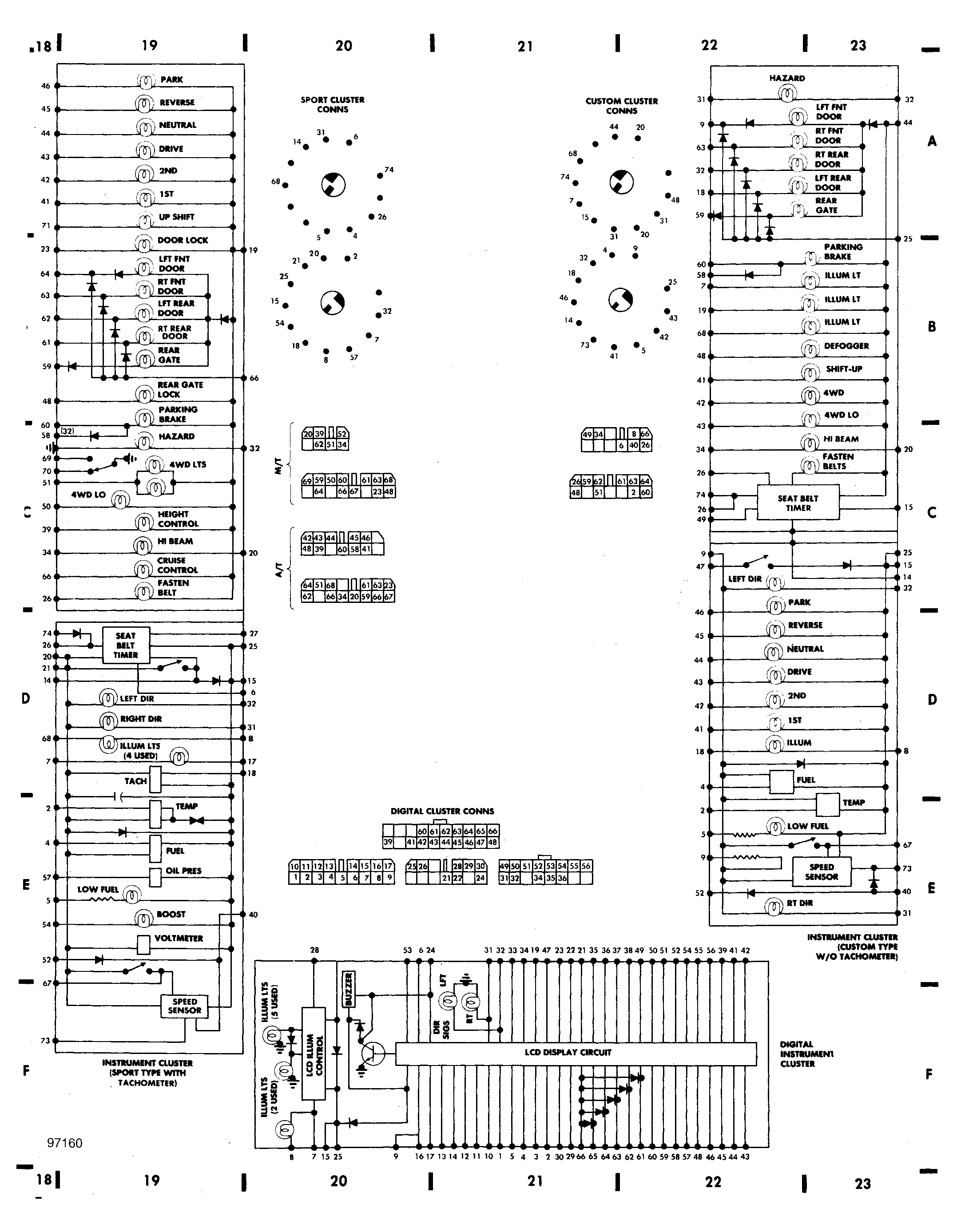

Fig 5: Sport, Custom & Digital Instrument Panels

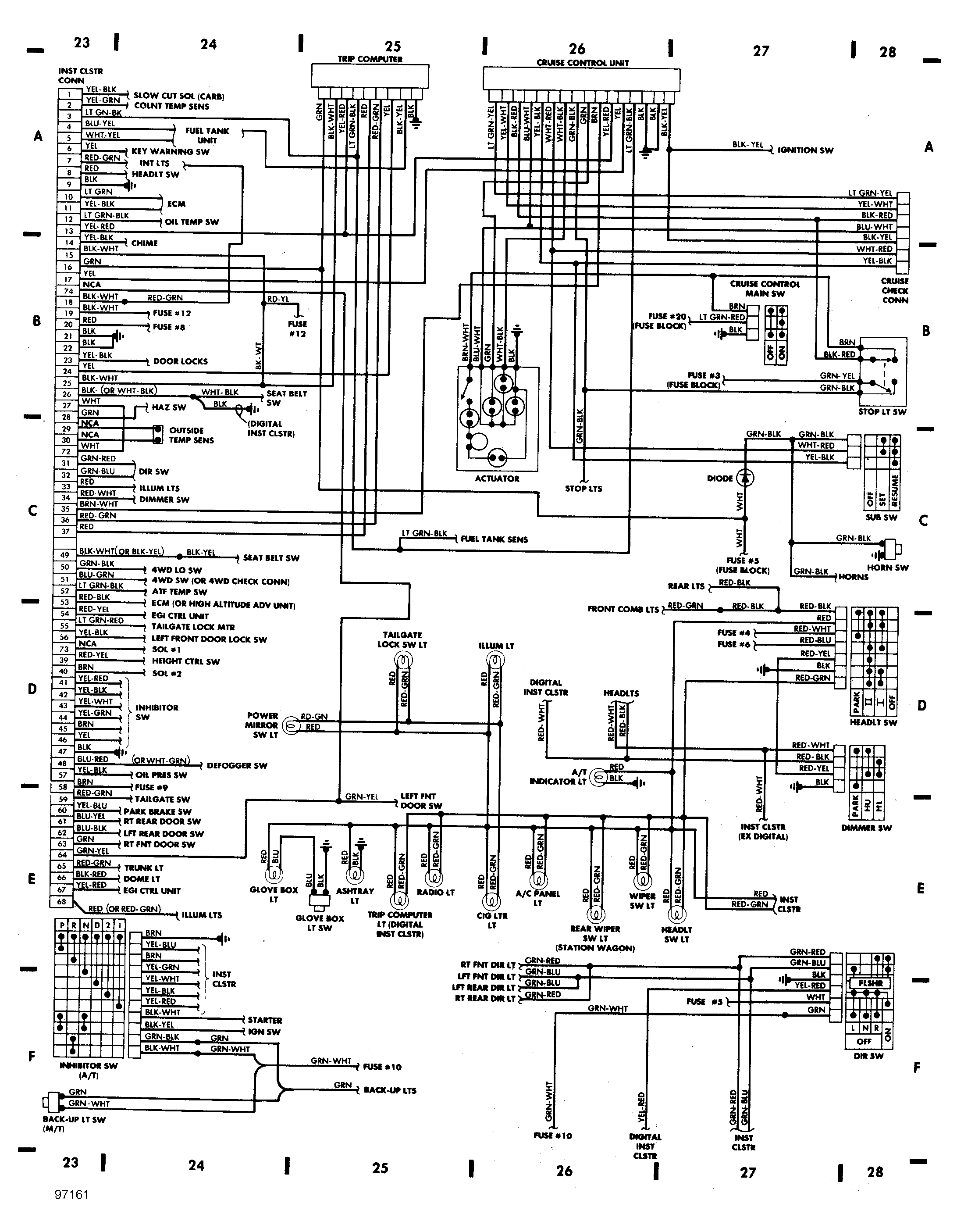

Fig 6: Trip Computer, Cruise Control, Dashboard Lights

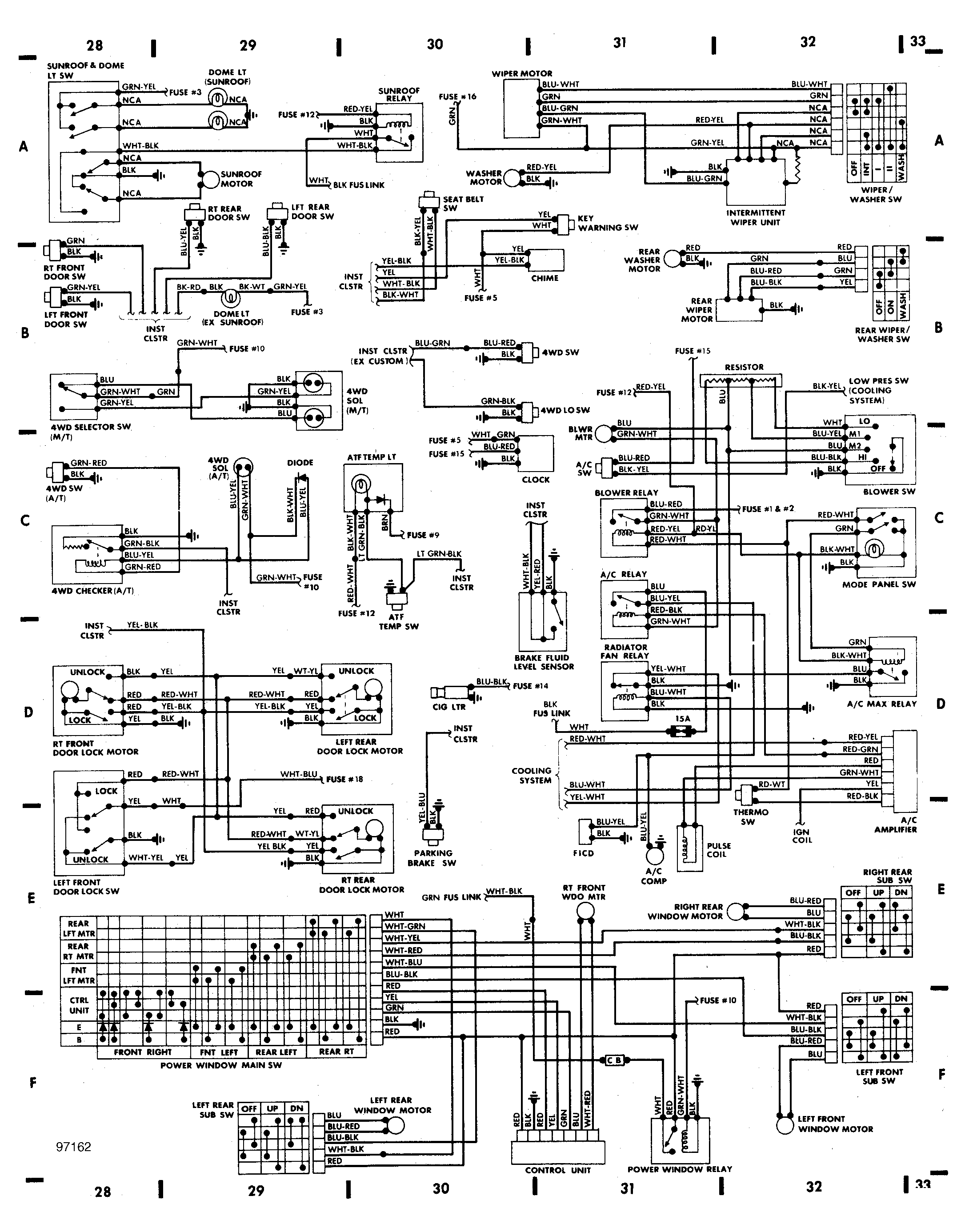

Fig 7: Windshield Wipers, Power Windows & Locks, A/C-Heating

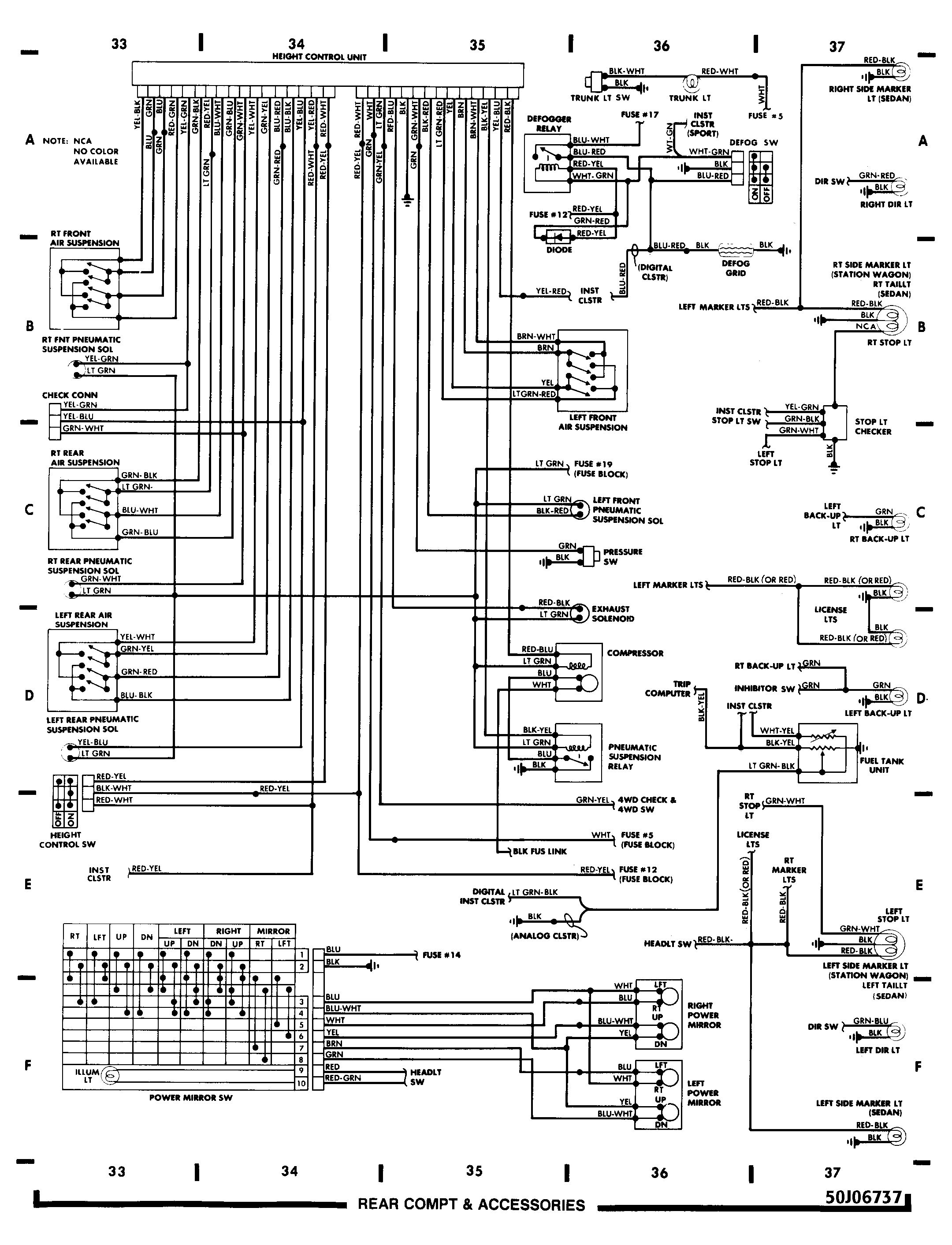

Fig 8: Height Control Unit, Rear Compartment & Tail Lights
