Instrument Cluster & Switches: Removal

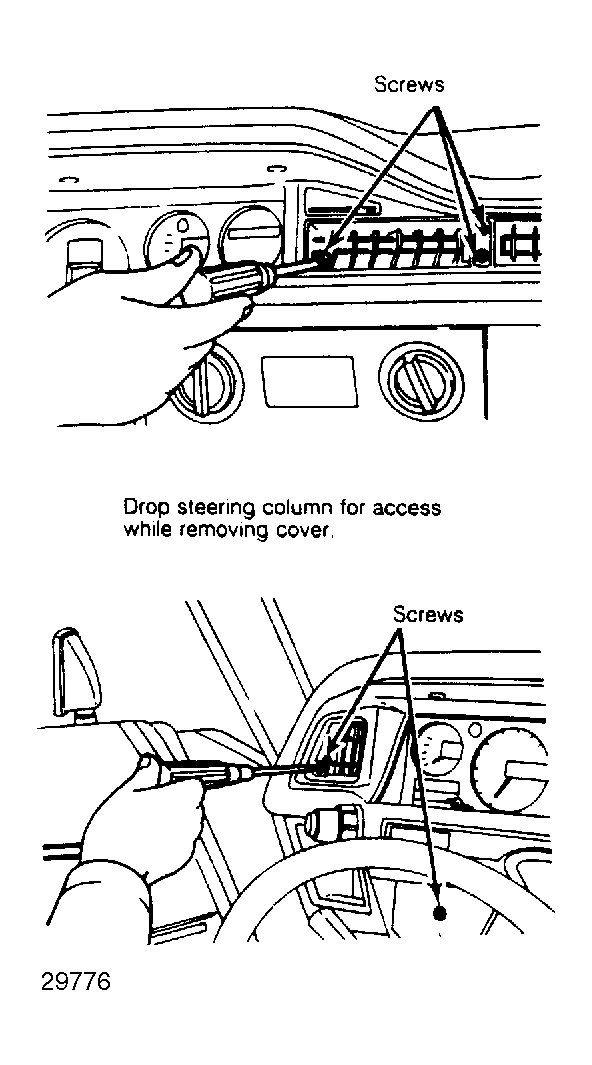

- Disconnect battery ground. Remove steering column bracket bolts and drop column down. Remove screws from cluster cover and remove after disconnecting any wiring connectors.
- On GL models, screws are hidden inside vents on either side of cluster. Take out center ventilator control lever by pulling on it. On all models, remove cluster attaching screws. Pull cluster forward and disconnect wiring and speedometer cable. Remove cluster.
