Instrument Cluster & Switches: Removal

Disconnect battery ground. Remove steering column bracket bolts and drop column down. Remove screws from cluster cover. On GL and GLF models, screws are hidden inside vents on either side of cluster.
Pull off ventilation knobs and remove passing light switch (if equipped). Unplug electrical wiring from cover and remove cover, with switches.

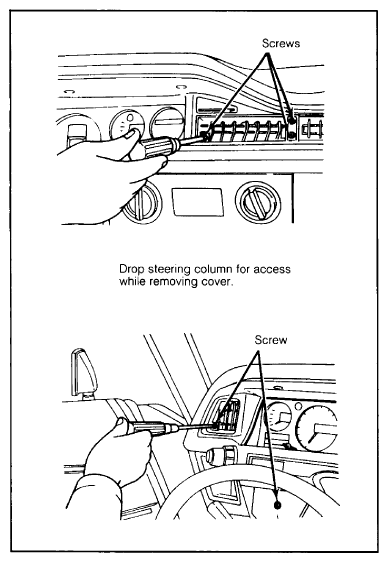

Fig 1: Screw locations for Removing GL & GLF Instrument Cluster Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove cluster screws. Pull cluster forward and disconnect wiring and speedometer cable. Remove cluster.
