Fast Idle (Off Car): Subaru

With choke in closed position, place fast idle lever on second step of fast idle cam. Adjust clearance between primary throttle valve and throttle bore, by turning fast idle screw, to specifications.

Fig 1: Fast Idle Bench Adjustment

Courtesy of NOT AVAILABLE

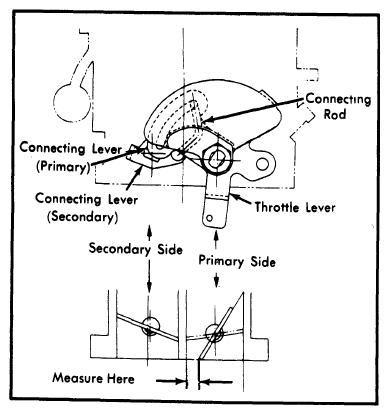

Fig 2: Secondary Throttle Initial Opening Adjustment

Courtesy of NOT AVAILABLE
