Suspension - Rear: Description

Sterling 825 rear suspension is an independent type suspension. Suspension consists of coil springs, shock absorbers, stabilizer bar, trailing arm, lower arm and hub carrier. Hub carrier is attached to shock absorber, lower arm and trailing arm.

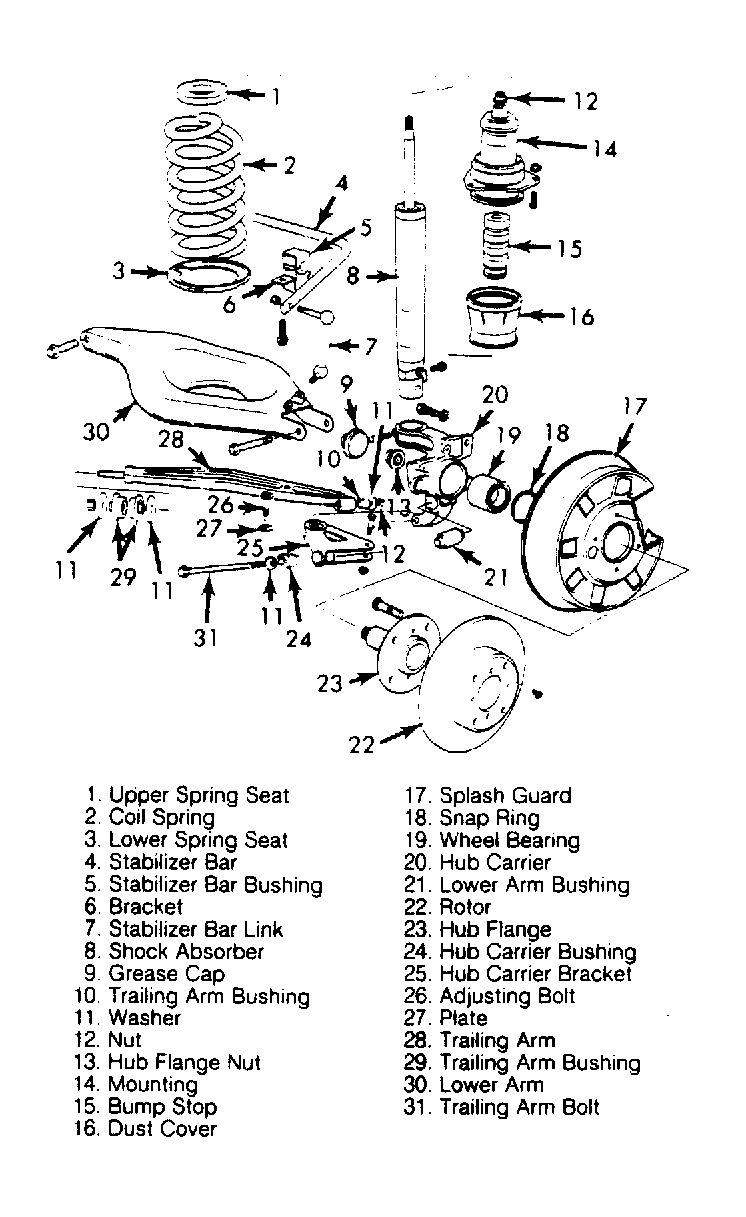

Fig 1: Exploded View of Rear Suspension

Courtesy of AUSTIN ROVER GROUP.
