Adjust Front Axle Toe - AR40.20-P-0323-02SR
MODEL 453
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BE40.20-P-1001-07FA | Total toe at front axle | ∠° | -9' (± 15') |
TIE ROD
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA46.40-P-1002-01F | Jam nut at tie rod | Nm | 53 |
- Adjust steering wheel to center position.
The wheels on the front axle must be in the straight-ahead position.

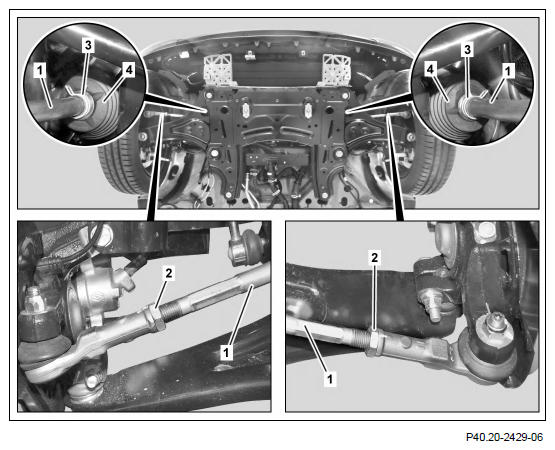

- Release clamps (3) on boots (4).
- Counterhold tie rods (1) and release nuts (2).
- Rotate the tie rods (1) to adjust the toe-in.
- Check boots (4) after adjusting toe for signs of twisting.
If boots (4) are twisted:
↓
Straighten boots (4).
- Tighten nuts (2)
.
- Fasten clamps (3) on boots (4).
