Secure Vehicle On Vehicle Lift - AR00.60-P-0100SR

MODEL 453

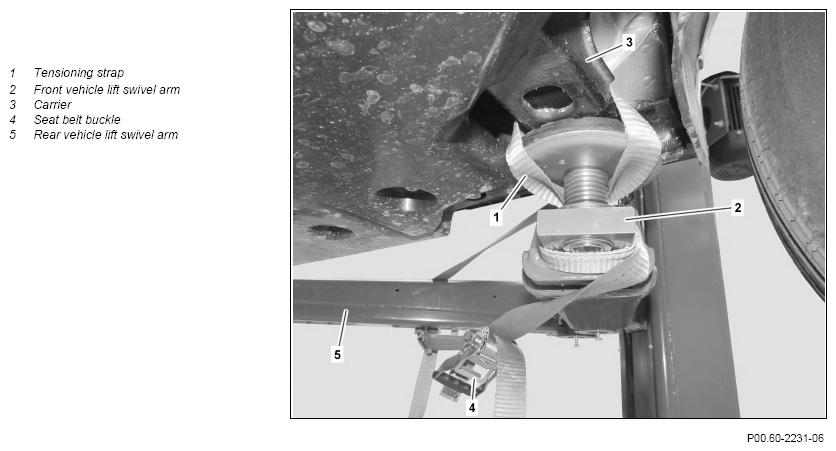

Shown on front left side of vehicle

Courtesy of MERCEDES-BENZ USA

Model 453.3/4 except for code J59 (center armrest)

Courtesy of MERCEDES-BENZ USA

Shown on model 453.0 rear

Courtesy of MERCEDES-BENZ USA

Shown on model 453.3 rear

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Check
1	Check the turntables of the vehicle lift for damage	The turntables of the vehicle lift must not be damaged. In case of damage ↓ Replace a defective turntable.
	Securing
2	Lift vehicle on vehicle lift	Model 453.091/391/491 Align the turn plates so that the screws of the rubber pads on the turn plates cannot come into contact with vehicle parts while jacking up.
3	Guide or suspend the tensioning strap (1) as shown over the carrier (3) and around the front vehicle lift swivel arm (2)	Depending on the version of the tensioning strap (1) used. Use tensioning strap (1) with following properties: Maximum elongation: 7% Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
4	Guide tensioning strap (1) as shown around the rear vehicle lift swivel arm (5) and tension using the belt buckle (4)
5	Perform operation steps 3 and 4 on opposite side of vehicle.
6	Lower vehicle with lifting platform
7.1	Open both rear doors	Model 453.0
7.2	Open both doors	Model 453.3/4
8	Release the cup holder (6) and move to the front along with the connected electrical wiring harness	Model 453.3/4 except code J59 (Center armrest)
9.1	Cover left and right rear entrance area using suitable rags and route tensioning strap (7) through footwell in rear	Model 453.0 Use tensioning strap (7) with following properties: Maximum elongation: 7 % Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
9.2	Cover left and right entrance area using suitable rags and route tensioning strap (7) behind the seats through the passenger compartment	Model 453.3 Model 453.4 Use tensioning strap (7) with following properties: Maximum elongation: 7 % Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
10	Route or suspend tensioning strap (7) around right and left rear vehicle lift swivel arm (5)	Depending on the version of the tensioning strap (7) used.
11	Tension tensioning strap (7) in passenger compartment using the belt buckle (8)
12	Release in the reverse order
