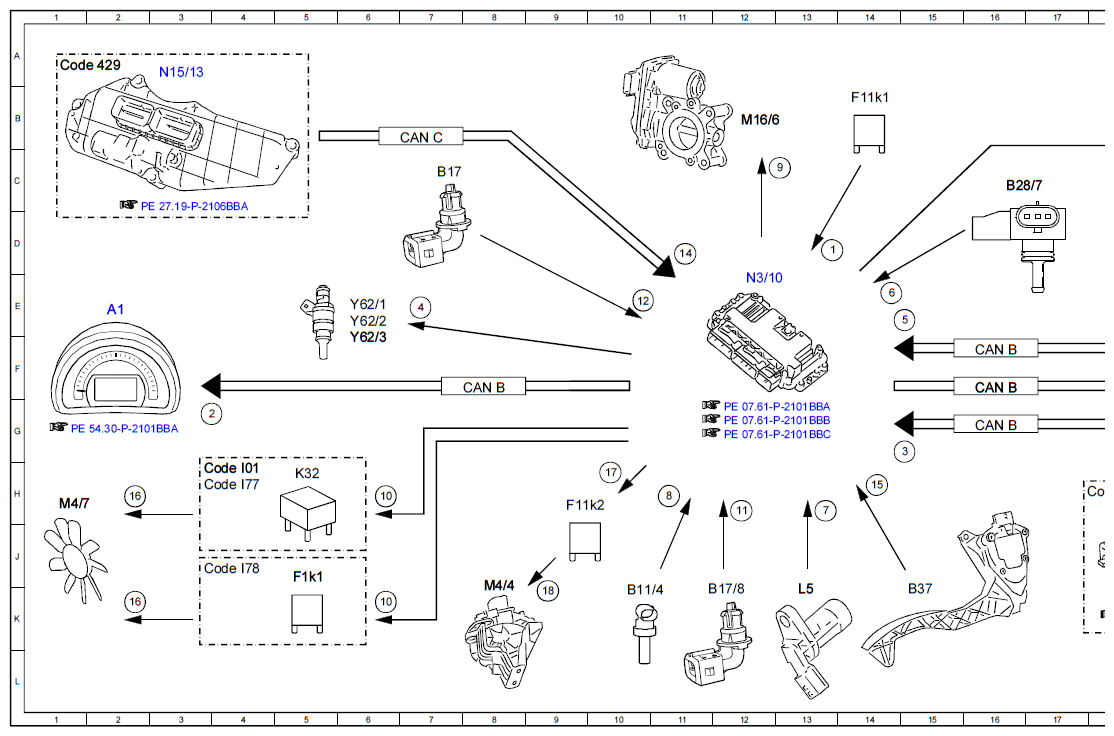

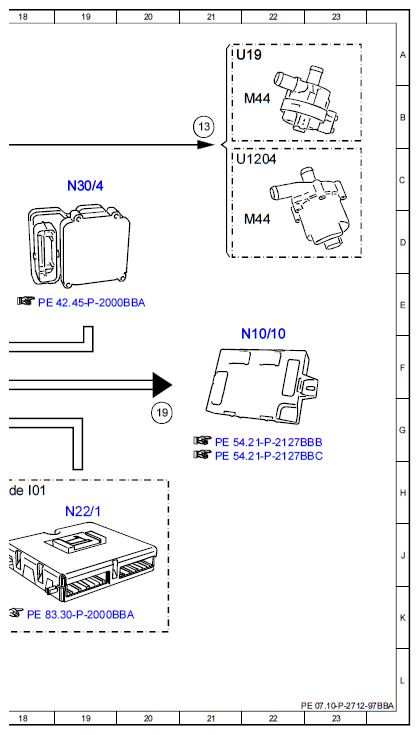

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 14D |
| 10 | Combustion engine cooling fan power supply solenoid switch, actuation | 6K |
| 10 | Combustion engine cooling fan power supply solenoid switch, actuation | 6H |
| 11 | Charge air temperature sensor, signal | 12H |
| 12 | Intake air temperature sensor, signal | 10E |
| 13 | Coolant pump, actuation | 21B |
| 14 | Transmission oil temperature, signal | 11D |
| 15 | Accelerator pedal sensor, signal | 14H |
| 16 | Fan motor, actuation | 2K |
| 16 | Fan motor, actuation | 2H |
| 17 | Fan relay, actuation | 10H |
| 18 | Fan, actuation | 9K |
| 19 | Engine running, signal | 20G |
| 2 | Instrument cluster, message | 4G |
| 3 | Air conditioning, status | 15G |
| 4 | Injection valves, actuation | 7E |
| 5 | Wheel speed, signal | 15E |
| 6 | Engine load, signal | 14E |
| 7 | Engine speed, signal | 13H |
| 8 | Coolant temperature sensor, signal | 11H |
| 9 | Throttle valve actuator motor, actuation | 13C |
| A1 | Instrument cluster | 2E |
| B11/4 | Coolant temperature sensor | 10K |
| B17 | Intake air temperature sensor | 7C |
| B17/8 | Charge air temperature sensor | 12K |
| B28/7 | Pressure sensor downstream of throttle valve | 16C |
| B37 | Accelerator pedal sensor | 15K |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 16F |
| CAN B | Interior CAN | 16F |
| CAN C | Drive train CAN | 7B |
| Code 429 | twinamic | 1A |
| Code I01 | Air conditioning | 3H |
| Code I01 | Air conditioning | 17H |
| Code I77 | Manual air conditioning | 3H |
| Code I78 | Heating system | 3J |
| F11k1 | Engine function circuit 87 relay | 14B |
| F11k2 | Fan relay | 9H |
| F1k1 | Fan relay | 5J |
| K32 | Fan solenoid switch, ICE combustion engine cooling | 5H |
| L5 | Crankshaft position sensor | 13K |
| M16/6 | Throttle valve actuator | 12B |
| M4/4 | Fan | 8K |
| M4/7 | Fan motor | 1H |
| M44 | Charge air cooler circulation pump | 22D |
| M44 | Charge air cooler circulation pump | 22B |
| N10/10 | Center SAM control unit | 22F |
| N15/13 | Double clutch transmission control unit | 3A |
| N22/1 | Climate control control unit | 19H |
| N3/10 | ME-SFI [ME] control unit | 12E |
| N30/4 | Electronic Stability Program control unit | 19C |
| U1204 | Valid for gasoline engine 281, 80 kW with equipment "BRABUS tailor made" | 21C |
| U19 | Valid for standard equipment | 21A |
| Y62/1 | Cylinder 1 injection valve | 6E |
| Y62/2 | Cylinder 2 injection valve | 6E |
| Y62/3 | Cylinder 3 injection valve | 6F |
