Drain/Fill Transmission Oil - AR27.00-P-0001SR
TRANSMISSION 700.41 in MODEL 453
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Drain | |||

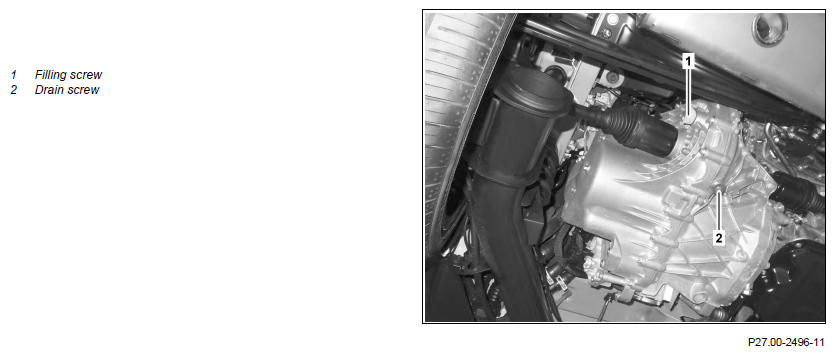

| 1 | Remove filling screw (1) | ||
| 2 | Remove drain screw (2) and rain transmission oil fully into suitable container | ||
| Fill | |||
| 3 | Replace sealing ring on drain screw (2) | ||
| 4 | Tighten drain plug (2) | *BA27.10-P-1007-06A | |
| 5 | Add gear oil up to lower edge of hole on filling screw (1) | *BF27.00-P-1001-01SR | |
| 6 | Screw in new filling screw (1) securely | The filling screw (1) must be replaced. Leaks can occur otherwise. |
|
| Clean | |||
| 7 | Clean area around filling screw (1) and drain screw (2) | ||
| Check | |||
| 8 | Perform a test drive and check transmission for leaktightness |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 700.41 | |
|---|---|---|---|
| BA27.10-P-1007-06A | Drain screw to transmission | Nm | 40 |
AUTOMATIC TRANSMISSION
| Number | Designation | Transmission 700.41 in model 453 | ||
|---|---|---|---|---|
| BF27.00-P-1001-01SR | Gear oil | Filling capacity | I | 1, 7 |
| Sheet | BB00.40-P-0235-73A | |||
