Drain/Fill Transmission Oil - AR26.00-P-0200SR

TRANSMISSION 700.12 in MODEL 453 (except 453.09/39/49)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Drain

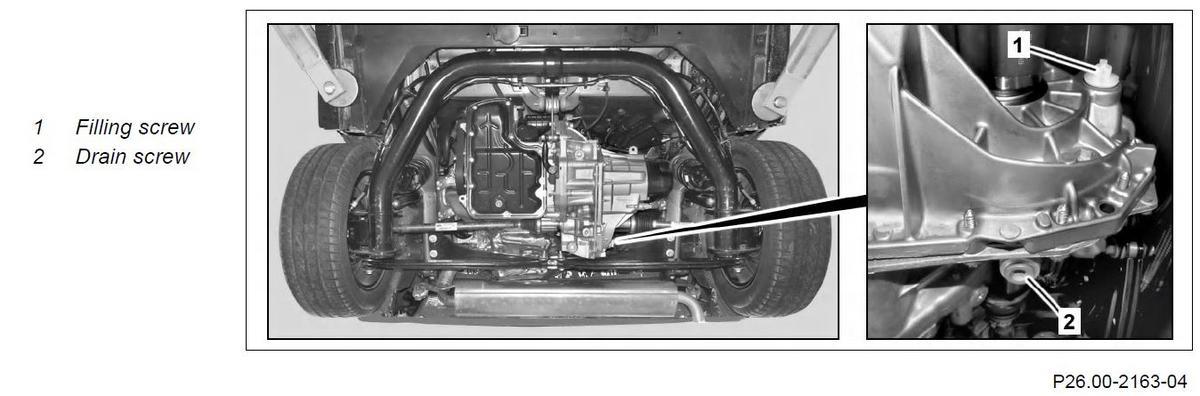

1	Remove filling screw (1)
2	Remove drain screw (2) and drain off gear oil	Only change the transmission oil when the transmission is at operating temperature. Drain gear oil completely and collect in a suitable container.
	Fill
3	Replace sealing ring on drain screw (2)
4	Tighten drain plug (2)	Drain screw to transmission	*BA26.00-P-1005-01A
5	Add gear oil up to lower edge of hole on filling screw (1)	Gear oil	*BF26.10-P-1001-01K
6	Screw in new filling screw (1) securely	The filling screw (1) must always be replaced. Leaks can occur otherwise.
	Clean
7	Thoroughly clean area surrounding filling screw (1) and drain screw (2)
	Check
8	Perform a test drive and check transmission for leaktightness
