Drain/Fill Transmission Oil - AR26.00-P-0200MEX

MODEL 451.390/392/490/492 with ENGINE 780.993

MODEL 453.091/391/491 with ENGINE 780.997

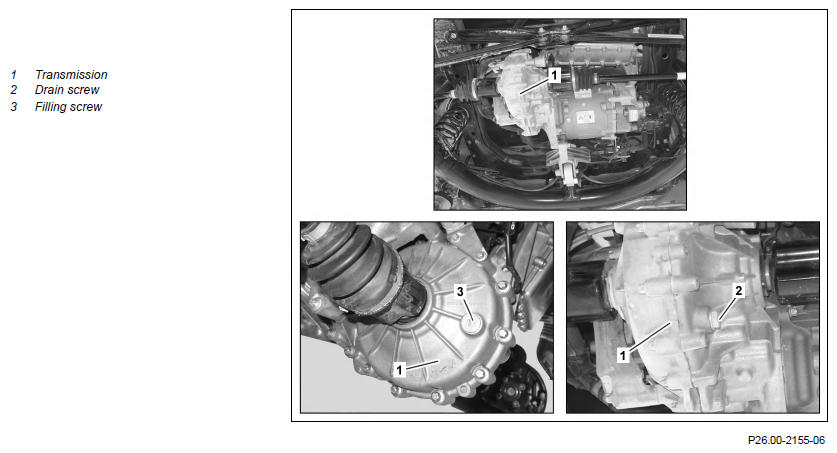

Shown on model 451

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Drain
1	Remove transmitter key and unplug battery charger power supply plug	Drain transmission oil when transmission (1) at operating temperature only.
2	Lift vehicle on vehicle lift
3	Clean area around filling screw (3)
4	Unscrew filling screw (3) and collect escaping transmission oil in a suitable container
5	Unscrew drain screw (2) and drain transmission oil completely into a suitable container
	Fill
6	Tighten drain plug (2)	Screw plug to transmission housing	*BA26.00-P-1004-01E
7	Pour in transmission oil up to lower edge of hole of filling screw (3)
	Gear oils (Sheet 235.72)	Model 451.390/392/490/492 with engine 780.993	BB00.40-P-0235-72A
		Model 453.091/391/491 with engine 780.997 Gear oil	*BF26.00-P-1001-01SRE
8	Tighten filling screw (3)	Model 453.091/391/491 with engine 780.997 Replace the filling screw (3) and tighten it by hand. Leaks can occur otherwise. Model 451.390/392/490/492 with engine 780.993 Screw plug to transmission housing	*BA26.00-P-1004-01E
9	Clean area around filling screw (3) and drain screw (2)
10	Lower vehicle
11	Perform a test drive and check transmission (1) for leaktightness
