Bleed Clutch Operating System - AR25.20-P-0070SR
MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.12
MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.41
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove | |||
| 1 | Open maintenance flap | ||

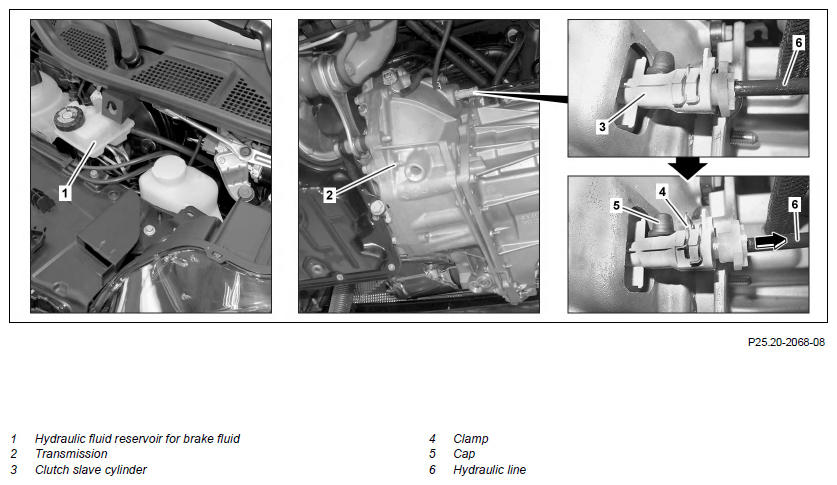

| 2 | Clean outside of brake fluid hydraulic fluid tank (1) | ||
| 3 | Mark height of fill level of brake fluid on brake fluid hydraulic fluid tank (1) | ||
| 4 | Unscrew cap from brake fluid hydraulic fluid tank (1) | ||
| 5 |
Connect filler/bleeder unit to brake fluid hydraulic fluid tank (1) 000 588 01 82 00 Filling unit |
WS25.00-P-0016B | |
| 6 | Raise vehicle with vehicle lift | ||
| 7 | Detach cap (5) from clutch slave cylinder (3) | ||
| 8 | Slide bleed hose onto breather nipple of clutch slave cylinder (3) | ||
| Bleeding | |||
| 9 | Switch on filler/bleeder unit | ||
| 10 | Release clamp (4) | ||
| 11 | Pull hydraulic line (6) in direction of arrow up to end stop and out of the clutch slave cylinder (3), then allow brake fluid to flow out | ||
| 12 | Switch off filler/bleeder unit | ||
| 13 | Slide hydraulic line (6) in opposite direction of arrow into clutch slave cylinder (3) | ||
| 14 | Lock clamp (4) | ||
| Install | |||
| 15 | Detach bleed hose from breather nipple of clutch slave cylinder (3) | ||
| 16 | Fit cap (5) onto clutch slave cylinder (3) | ||
| 17 | Lower vehicle with vehicle lift | ||
| 18 | Detach filler/bleeder unit from brake fluid hydraulic fluid tank (1) | ||
| 19 | Adapt fill level of brake fluid in brake fluid hydraulic fluid tank (1) to match the given marking | ||
| 20 | Screw cap onto brake fluid hydraulic fluid tank (1) | ||
| 21 | Close maintenance flap | ||
| Check | |||
| 22 | Check the clutch operator for proper operation and leaktightness |
