Check Tires For Damage And Crack Formations - AP40.10-P-4051EW

MODEL 117, 156, 166, 172, 176, 177, 190, 197, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 290, 292, 453

MODEL 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Preparatory activity
1	Lift vehicle with lifting platform.	Model 117, 156, 166, 172, 176, 177, 190, 197, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 290, 292, 453
		Model 463 as of model year 2019
		Model 117, 156, 176, 242, 246	AR00.60-P-1000AK
		Model 166, 292	AR00.60-P-1000GZ
		Model 172	AR00.60-P-1000V
		Model 177	AR00.60-P-1006MFA
		Model 190	AR00.60-P-1000RG
		Model 197	AR00.60-P-1000RQ
		Model 205	AR00.60-P-1002LWG
		Model 213
		Model 238
		Model 253
		Model 217, 222	AR00.60-P-1000LF
		Model 231	AR00.60-P-1000TX
		Model 257, 290	AR00.60-P-1005-02FR
		Model 463 as of model year 2019	AR00.60-P-1005-01XG
	000 588 00 80 00 Vehicle lift		WS00.00-P-0040B
		Model 117, 156, 166, 172, 176, 177, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 290, 292 Adapter kit	Fig 1
		Model 463 as of model year 2019	Fig 2
		Adapter
	Check
2	Check tires of front and rear axle.	Tread, as well as outer and inner sidewalls, may have cuts, punctures, cracks, chipping, peeling and penetrating foreign objects. If problems occur, ↓ Rectify problems. After obtaining special order.
3	Assess wear pattern and tire tread depth of front and rear axle.	Only if the reception items as per the "Reception report for service on vehicle" were not carried out. If an unusual wear pattern is present, ↓ determine cause and replace the tire, if necessary. After obtaining special order. If the minimum tread depth is reached, ↓ replace the tire. After obtaining special order.	AP40.10-P-4052B
	findings

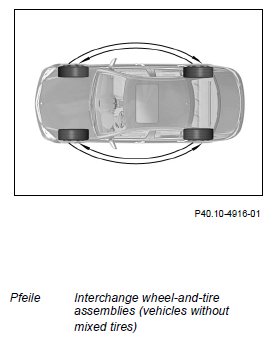

4	Rotate wheel and tire assemblies of front and rear axle.	Vehicle without mixed tires. Maintain running direction of wheel and tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased. If necessary, ↓ rotate wheel and tire assemblies. After obtaining special order.
	Finishing activity
5	Lower vehicle with vehicle lift.	Model 117, 156, 166, 172, 176, 177, 190, 197, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 290, 292, 453 Model 463 as of model year 2019
		Model 117, 156, 176, 242, 246	AR00.60-P-1000AK
		Model 166, 292	AR00.60-P-1000GZ
		Model 172	AR00.60-P-1000V
		Model 177	AR00.60-P-1006MFA
		Model 190	AR00.60-P-1000RG
		Model 197	AR00.60-P-1000RQ
		Model 205 Model 213 Model 238 Model 253	AR00.60-P-1002LWG
		Model 217, 222	AR00.60-P-1000LF
		Model 231	AR00.60-P-1000TX
		Model 257, 290	AR00.60-P-1005-02FR
		Model 463	AR00.60-P-1005-01XG
	000 588 00 80 00 Vehicle lift	as of model year 2019	WS00.00-P-0040B
		Model 117, 156, 166, 172, 176, 177, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 290, 292 Adapter kit	Fig 1
		Model 463 as of model year 2019 Adapter	Fig 2

Fig 1: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (463 589 02 31 00)

Courtesy of MERCEDES-BENZ USA
