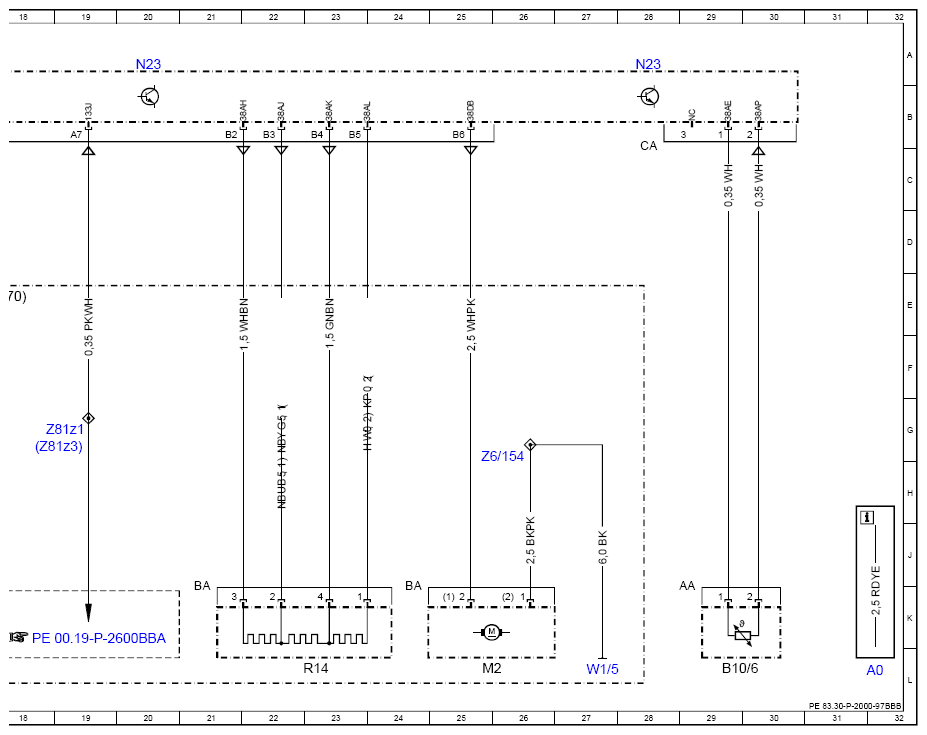

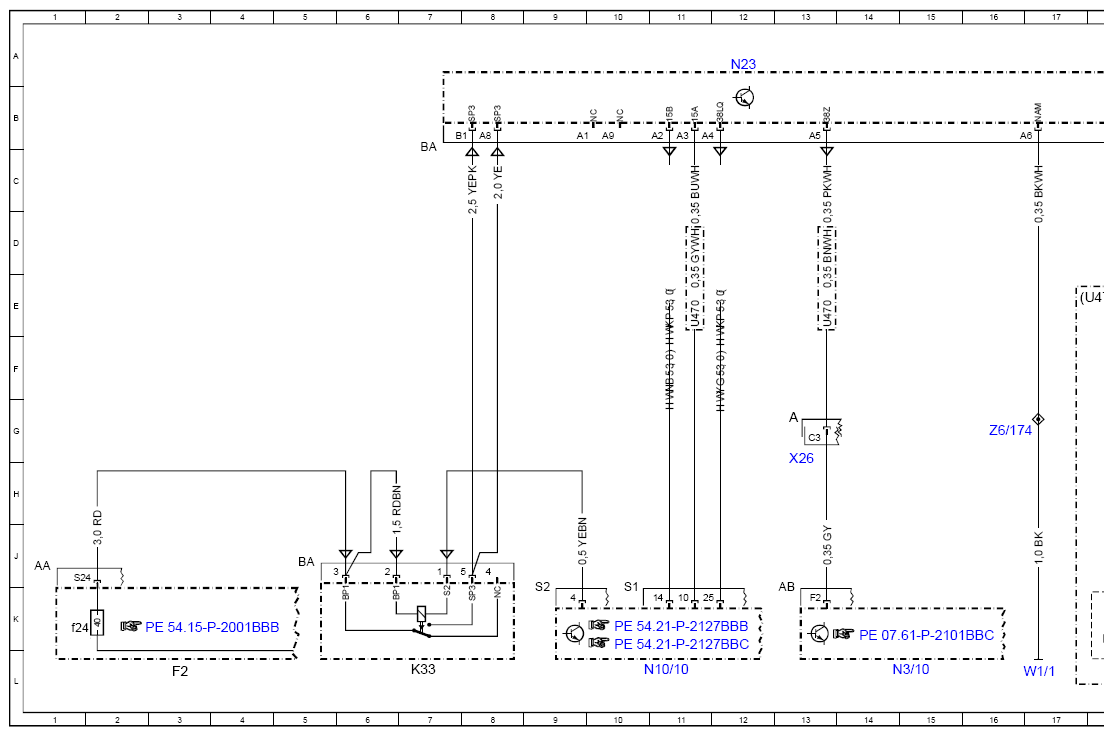

Wiring Diagram Of Air Conditioning - PE83.30-P-2000-97BBB
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 with CODE I77 (Air conditioning, manual) except CODE I01 (Air conditioning Plus)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B10/6 | Evaporator temperature sensor | 29L |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f24 | Fuse 24 | 1K |
| K33 | Air conditioning power supply solenoid switch | 7L |
| M2 | Blower motor | 25L |
| N10/10 | Center SAM control unit | 11L |
| N23 | Climate control and operating unit | 12A |
| N23 | Climate control and operating unit | 20A |
| N23 | Climate control and operating unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 15L |
| R14 | Blower motor series resistor | 23L |
| U470 | Val id for model 453.0 | 11E |
| U470 | Val id for model 453.0 | 13E |
| U470 | Valid for model 453.0 | 17E |
| W1/1 | Cockpit frame ground point | 17L |
| W1/5 | Right cockpit ground point | 27L |
| X26 | Vehicle interior/engine wiring harness electrical connector | 13H |
| Z6/154 | Ground connection connector sleeve | 26G |
| Z6/174 | Ground connection connector sleeve | 16G |
| Z81z1 | Circuit 58d connector sleeve | 19G |
| Z81z3 | Circuit 58d connector sleeve | 19G |
