Remove/Install Right Engine Mount - AR22.10-P-1102SR
ENGINE 281 in MODEL 453
Shown on ENGINE 281.920
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove | |||
| 1 | Raise vehicle on vehicle lift to working height | ||
| 2 | Remove subwoofer | Engine 281 in model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) Engine 281 in model 453 with code 557 (RADIO 57A MM2012 without DAB) Engine 281 in model 453 with code 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) Engine 281 in model 453 with code 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) |
|
| 3.1 | Remove floor covering in trunk | Engine 281 in model 453.0 | |
| 3.2 | Fold floor covering in trunk forwards | Engine 281 in model 453.3/4 | |
| 4 | Remove covering over engine | ||
| 5 | Unclip retaining clip (2) for the bleed hose (3) | Engine 281.920 in model 453 | |

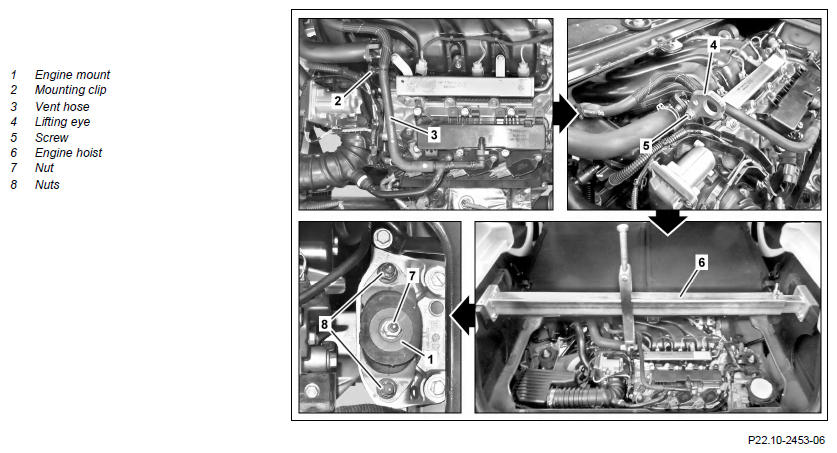

| 6 | Screw lifting eye (4) with screw/bolt (5) into threaded hole of retaining clip (2) | Figure | |
| 7 | Position engine hoist (6), as shown using support braces, over the engine and align | Figure | |
| Figure | |||
| 8 | Mount engine hoist (6) using corresponding screw/bolt onto the lifting eye (4) | ||
| 9 | Unscrew nut (7) | ||
| 10 | Unscrew nuts (8) | ||
| 11 | Lower the engine with engine hoist (6) until the engine mount (1) can be detached from the threaded pins of the carrier | ||
| 12 | Unfasten threaded pin for the carrier from the engine mount (1) using a suitable plastic mallet | ||
| 13 | Remove engine mount (1) upwards | ||
| Check | |||
| 14 | Check engine mount (1) for wear and damage | In case of a complaint ↓ Replace engine mount (1). |
|
| Install | |||
| 15 | Position engine mount (1) on engine carrier | ||
| 16 | Tighten nuts (8) | *BA22.10-P-1003-01H | |
| 17 | Raise engine using engine hoist (6) so high that the nuts (7) can be screwed onto the threaded pins of the engine carrier | ||
| 18 | Tighten nut (7) | *BA22.10-P-1004-01H | |
| 19 | Remove engine hoist (6) with the support braces and guide out | ||
| 20 | Remove lifting eye (4) | ||
| 21 | Clip in retaining clip (2) for the bleed hose (3) | Engine 281.920 in model 453 | |
| 22 | Install covering over engine | ||
| 23.1 | Install floor covering in trunk | Engine 281 in model 453.0 | |
| 23.2 | Fold floor covering in trunk backwards | Engine 281 in model 453.3/4 | |
| 24 | Install subwoofer | Engine 281 in model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) Engine 281 in model 453 with code 557 (RADIO 57A MM2012 without DAB) Engine 281 in model 453 with code 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) Engine 281 in model 453 with code 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) |
|
| 25 | Lower vehicle with vehicle lift |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 281 in model 453 | |
|---|---|---|---|
| BA22.10-P-1003-01H | Nut, engine mount to engine support | Nm | 105 |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 281 in model 453 | |
|---|---|---|---|
| BA22.10-P-1004-01H | Nut, engine mount to bearing pin | Nm | 62 |
