Remove/Install Front Engine Mount - AR22.10-P-4330SRE
ENGINE 780.997 in MODEL 453
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100SR | |
| 2 |
Support electric motor 000 588 11 62 00 Major assembly mount |
WS01.00-P-0092B | |

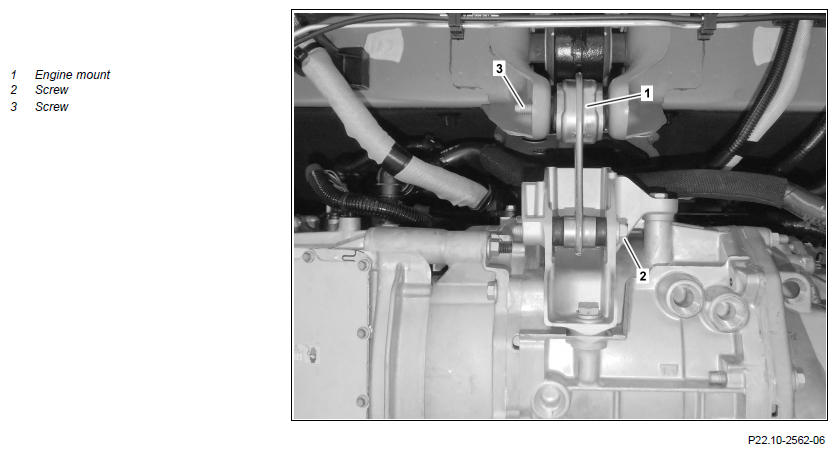

| 3 | Unscrew screws (2, 3) | ||
| 4 | Remove engine mount (1) | ||
| Check | |||
| 5 | Check engine mount (1) for wear and damage | In case of a complaint ↓ Replace engine mount (1). |
|
| Install | |||
| 6 | Position engine mount (1) and fully screw in screws/bolts (2, 3) | ||
| 7 | Raise vehicle using the vehicle lift and remove support | ||
| 8 | Tighten screw/bolt (2) | *BA22.10-P-1010-01H | |
| 9 | Tighten screw (3) | *BA22.10-P-1006-01H | |
| 10 | Disconnect vehicle from vehicle lift | AR00.60-P-0100SR |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 780.997 in model 453 | |
|---|---|---|---|
| BA22.10-P-1006-01H | Bolt, front engine mount to carrier | Nm | 105 |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 780.997 in model 453 | |
|---|---|---|---|
| BA22.10-P-1010-01H | Screw, front engine mount to electric motor carrier | Nm | 105 |
