Remove/Install Front Engine Mount - AR22.10-P-4330SR

ENGINE 281 in MODEL 453

MODIFICATION NOTES

30.05.2017

Work procedure completely revised.

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Secure vehicle on vehicle lift		AR00.60-P-0100SR
2	Support engine 000 588 11 62 00 Major assembly mount		WS01.00-P-0092B

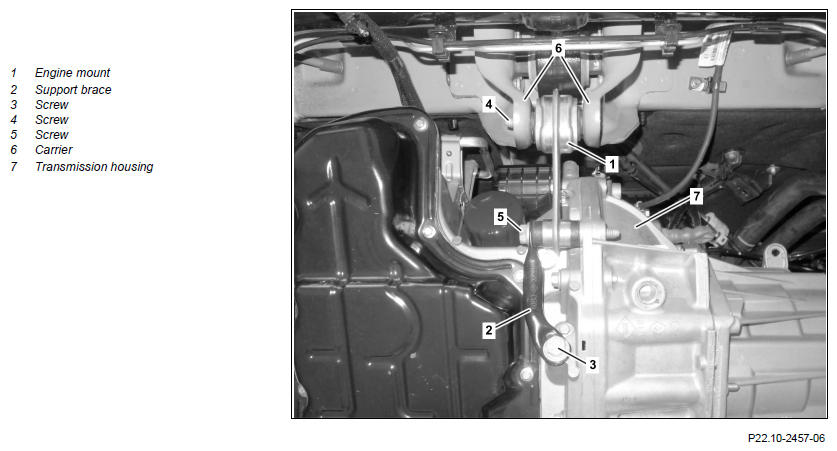

3	Loosen screw/bolt (3)
4	Remove screw/bolt (5)
5	Swivel support (2) slightly to the side
6	Remove screw/bolt (4) and remove engine mount (1) from carriers (6)
	Check
7	Check engine mount (1) for wear and damage	In case of a complaint ↓ Replace engine mount (1).
	Install
8	Position engine mount (1) in carriers (6) and screw screw/bolt (4) in all the way	Do not tighten the screw/bolt (4) yet.
9	Position support (2) on the engine mount (1)
10	Position engine mount (1) on transmission housing (7) and screw screw/bolt (5) all the way into the transmission housing
11	Raise vehicle using the vehicle lift and remove support
12	Tighten bolt (5)	Bolt, front engine mount to transmission housing	*BA22.10-P-1005-01H
13	Tighten bolt (4)	Bolt, front engine mount to carrier	*BA22.10-P-1006-01H
14	Tighten screw (3)	Bolt, support to crankcase	*BA22.10-P-1007-01H
15	Disconnect vehicle from vehicle lift		AR00.60-P-0100SR

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 281 in model 453
BA22.10-P-1005-01H	Bolt, front engine mount to transmission housing	Nm	105

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 281 in model 453
BA22.10-P-1006-01H	Bolt, front engine mount to carrier	Nm	105

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 281 in model 453
BA22.10-P-1007-01H	Bolt, support to crankcase	Nm	105
