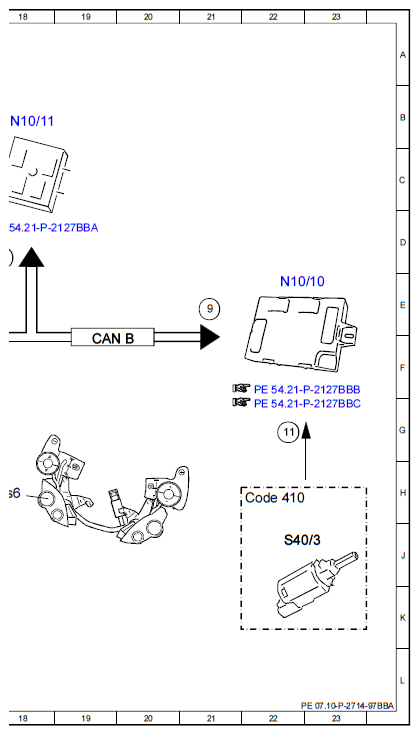

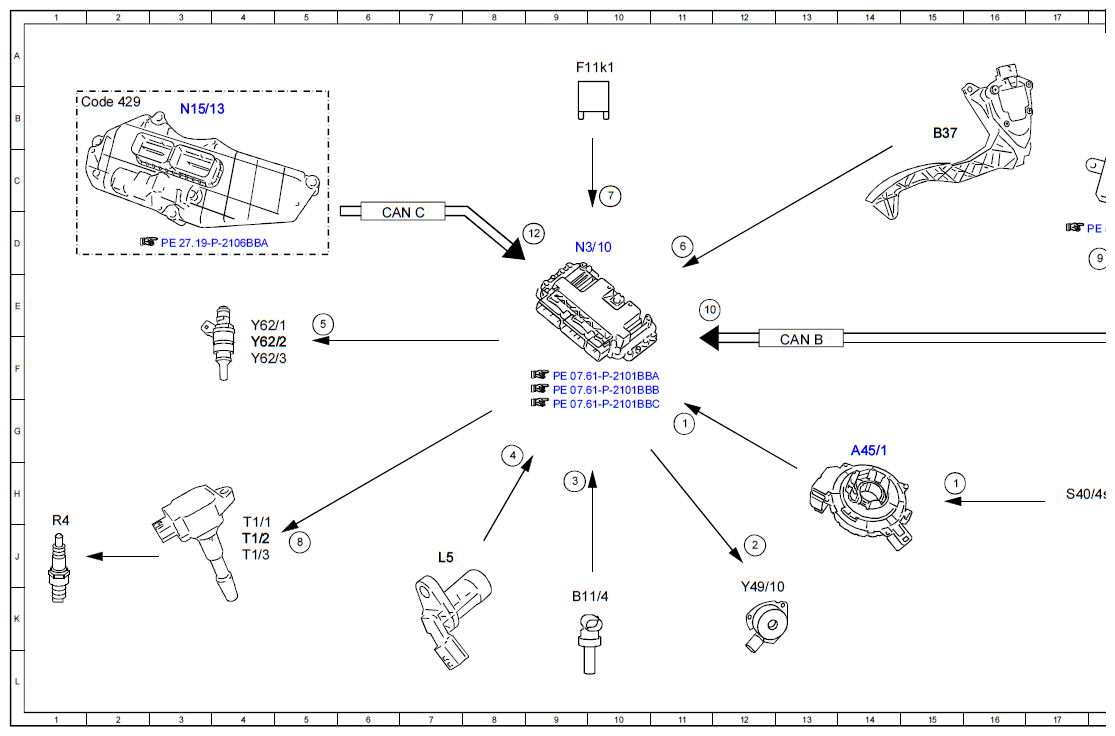

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Cruise control/variable speed limiter switch group, signal | 11G |
| 1 | Cruise control/variable speed limiter switch group, signal | 15H |
| 10 | Clutch pedal switch, status | 11E |
| 11 | Clutch pedal switch, signal | 22G |
| 12 | Gear range, status | 9D |
| 2 | Variable camshaft adjustment valve, actuation | 12J |
| 3 | Coolant temperature sensor, signal | 9H |
| 4 | Engine speed, signal | 8G |
| 5 | Injection valves, actuation | 5E |
| 6 | Accelerator pedal sensor, signal | 11D |
| 7 | Circuit 87, status | 10C |
| 8 | Ignition coils, actuation | 5J |
| 9 | Engine running, signal | 18D |
| 9 | Engine running, signal | 21E |
| A45/1 | Steering wheel clock spring contact | 14G |
| B11/4 | Coolant temperature sensor | 9K |
| B37 | Accelerator pedal sensor | 15B |
| CAN B | Interior CAN | 13F |
| CAN B | Interior CAN | 19F |
| CAN C | Drive train CAN | 6D |
| Code 410 | 5-speed manual transmission | 22H |
| Code 429 | twinamic | 1B |
| F11k1 | Engine function circuit 87 relay | 9A |
| L5 | Crankshaft position sensor | 7J |
| N10/10 | Center SAM control unit | 22E |
| N10/11 | Driver SAM control unit | 18B |
| N15/13 | Double clutch transmission control unit | 3B |
| N3/10 | ME-SFI [ME] control unit | 9D |
| R4 | Spark plugs | 1J |
| S40/3 | Clutch pedal switch | 22J |
| S40/4s6 | Cruise control/variable speed limiter switch | 17H |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4J |
| T1/3 | Cylinder 3 ignition coil | 4J |
| Y49/10 | Variable camshaft adjustment valve | 12K |
| Y62/1 | Cylinder 1 injection valve | 4E |
| Y62/2 | Cylinder 2 injection valve | 4F |
| Y62/3 | Cylinder 3 injection valve | 4F |
