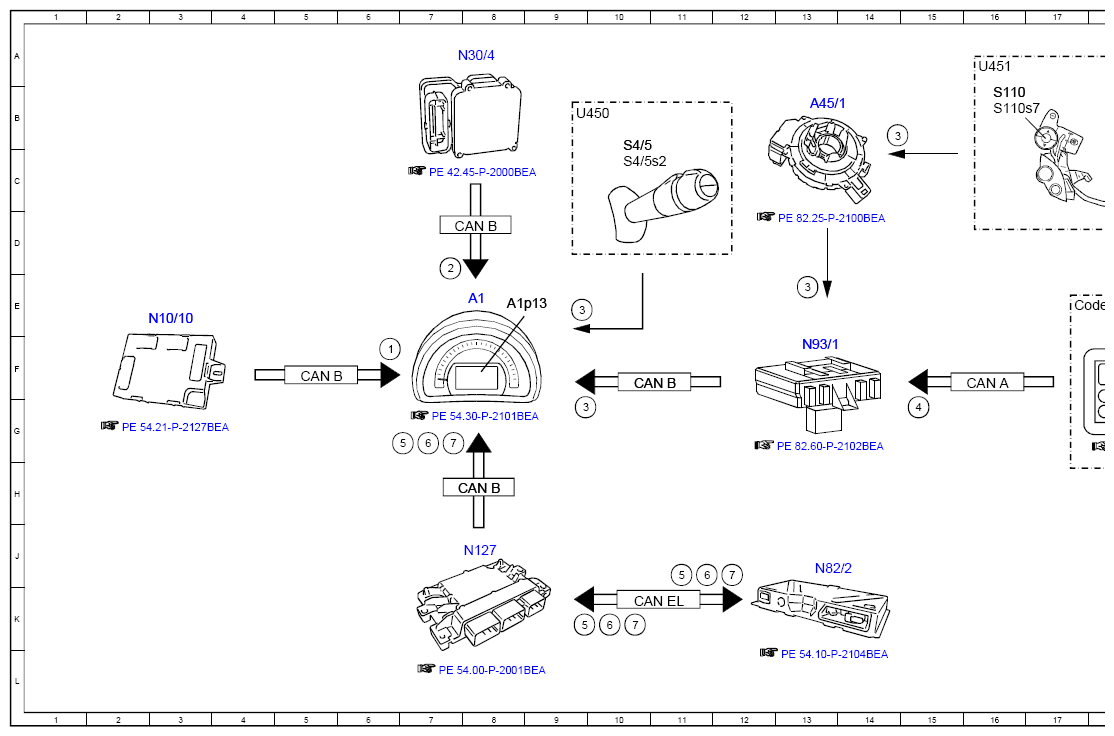

Electrical Function Schematic, Instrument Cluster Trip Computer - PE54.30-P-2057-97BBE
MODEL 453.091/391/491 with CODE K36 (Instrument cluster with color 8.9 cm (3.5") display)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction display, actuation | 6F |
| 2 | Wheel speed, signal | 7D |
| 3 | Steering wheel gearshift buttons, status | 9G |
| 3 | Steering wheel gearshift buttons, status | 9E |
| 3 | Steering wheel gearshift buttons, status | 13E |
| 3 | Steering wheel gearshift buttons, status | 14B |
| 4 | ECO score, status | 15G |
| 5 | Charge level, status | 9K |
| 5 | Charge level, status | 7G |
| 5 | Charge level, status | 11J |
| 6 | Charging current, energy flow | 10K |
| 6 | Charging current, energy flow | 7G |
| 6 | Charging current, energy flow | 11J |
| 7 | Discharge current, energy flow | 10K |
| 7 | Discharge current, energy flow | 7G |
| 7 | Discharge current, energy flow | 12J |
| A1 | Instrument cluster | 8E |
| A1p13 | Multifunction display | 8E |
| A40/3 | smart radio multimedia navigator | 19F |
| A45/1 | Steering wheel clock spring contact | 13B |
| CAN A | Telematics CAN | 16F |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 10F |
| CAN EL | Electric drive system CAN | 10K |
| Code 535 | Smart Media System | 17E |
| N10/10 | Center SAM control unit | 3E |
| N127 | Electric drive control unit | 8J |
| N30/4 | Electronic Stability Program control unit | 8A |
| N82/2 | Battery management system control unit | 13J |
| N93/1 | Audio gateway control unit | 13F |
| S110 | Left multifunction steering wheel button group | 16B |
| S110s7 | OK button | 16B |
| S4/5 | Menu navigation button group | 10C |
| S4/5s2 | OK button | 10C |
| U450 | Valid for equipment without multifunction steering wheel | 9B |
| U451 | Valid for equipment with multifunction steering wheel | 16A |
