Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800KJ
MODEL 453

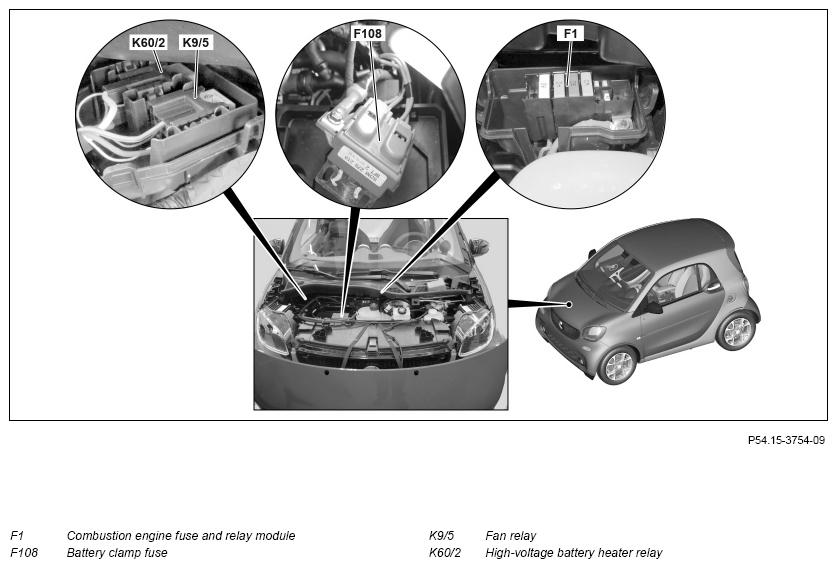

Shows on model 453.3

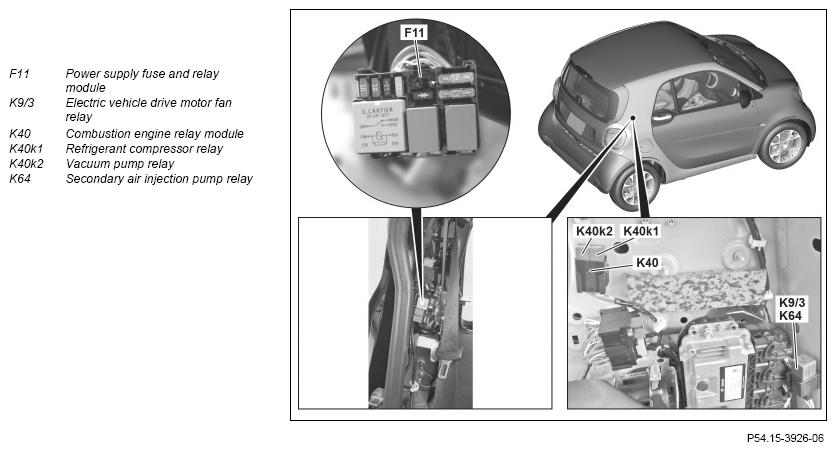

Shows on model 453.3

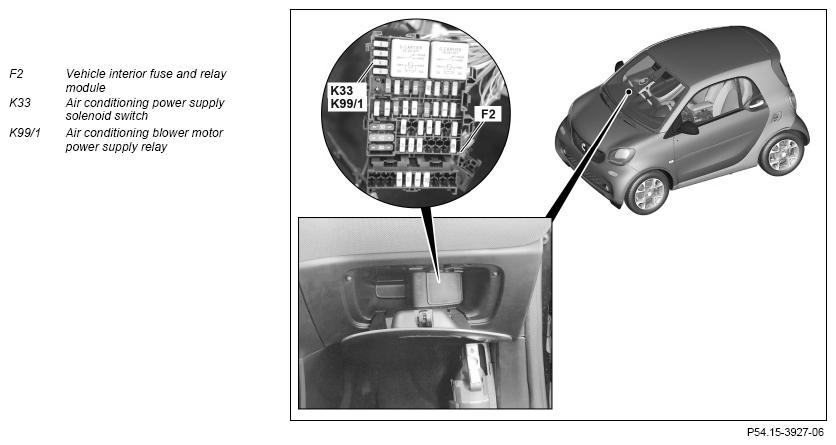

Shows on model 453.3

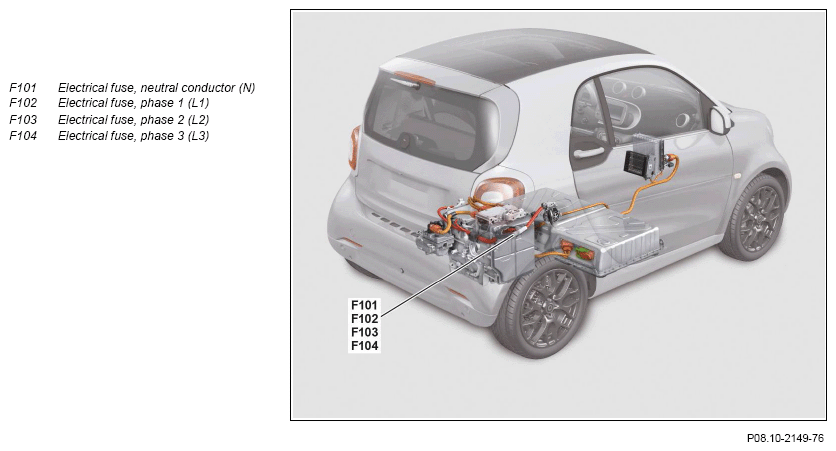

Only valid for vehicles with electric drive (shown on model 453.391)

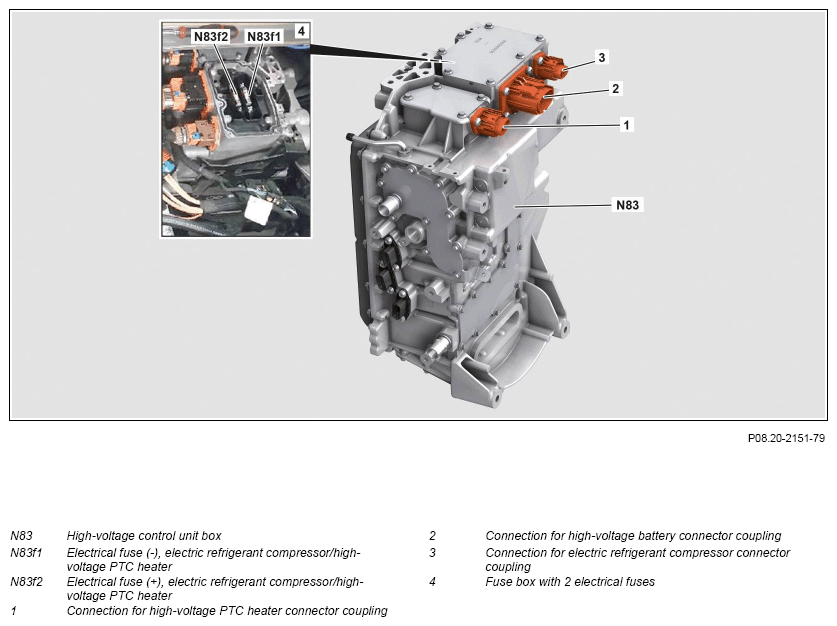

High-voltage control unit box with integrated high-voltage battery charger control unit (22 kW charger)

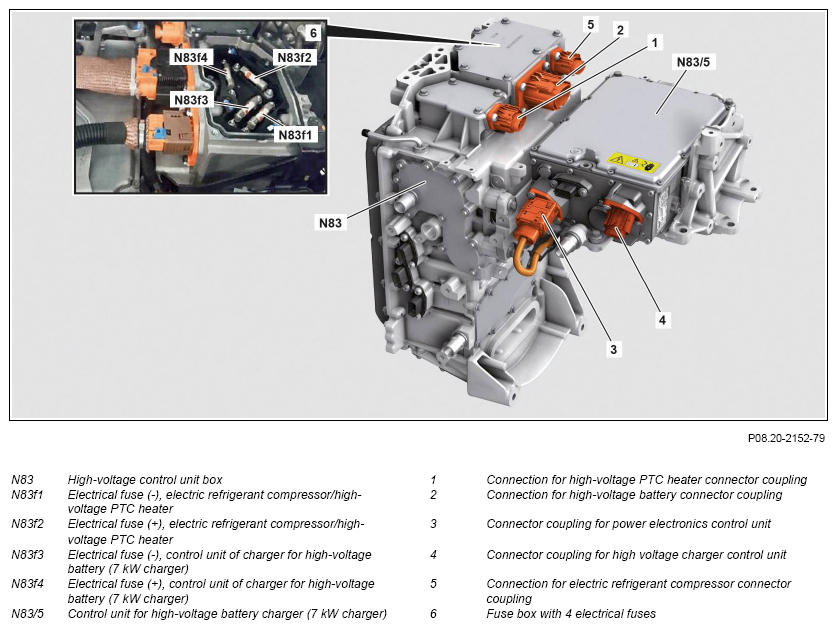

High-voltage control unit box with attached control unit for high-voltage battery charger (7 kW charger)
| Power supply fuse and relay module assignment | F1 | GF54.15-P-1256-40KJ | |
| Vehicle interior fuse and relay module assignment | F2 | GF54.15-P-1256-41KJ | |
| Combustion engine fuse and relay module assignment | F11 | GF54.15-P-1256-42KJ | |
| Battery clamp electrical fuse assignment | F108 | GF54.15-P-1256-43KJ | |
| Relay assignment of fuse boxes | F1k1, F2k1-k7, F11k1-k4 | GF54.15-P-1257-09KJ |
