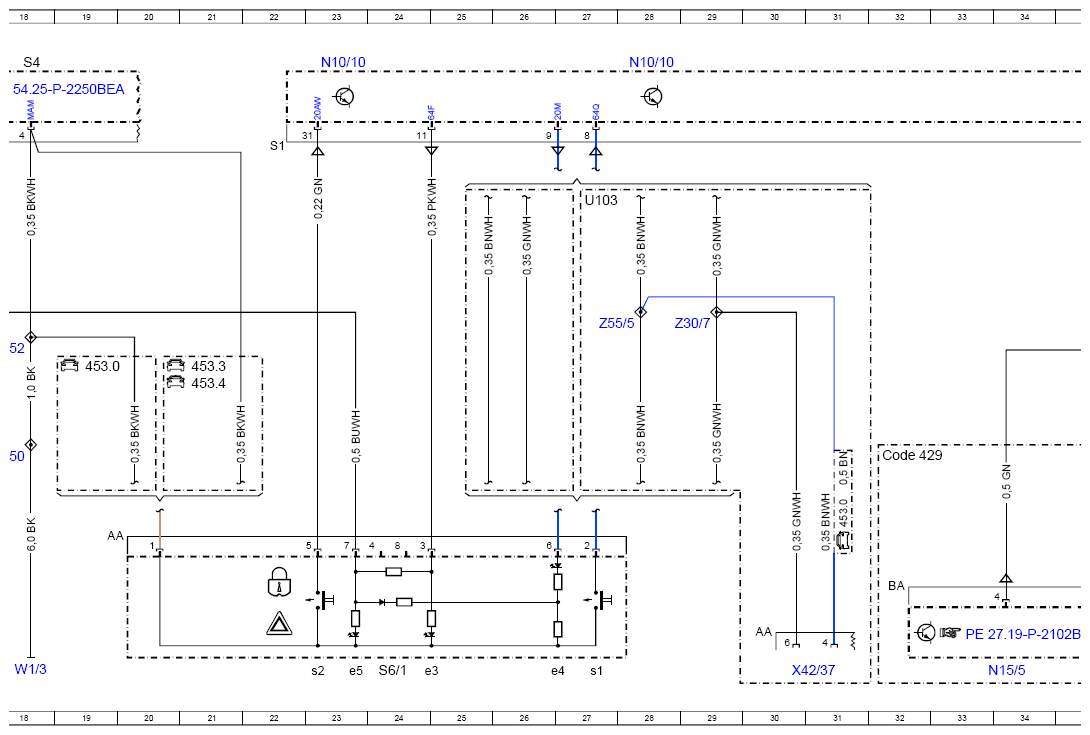

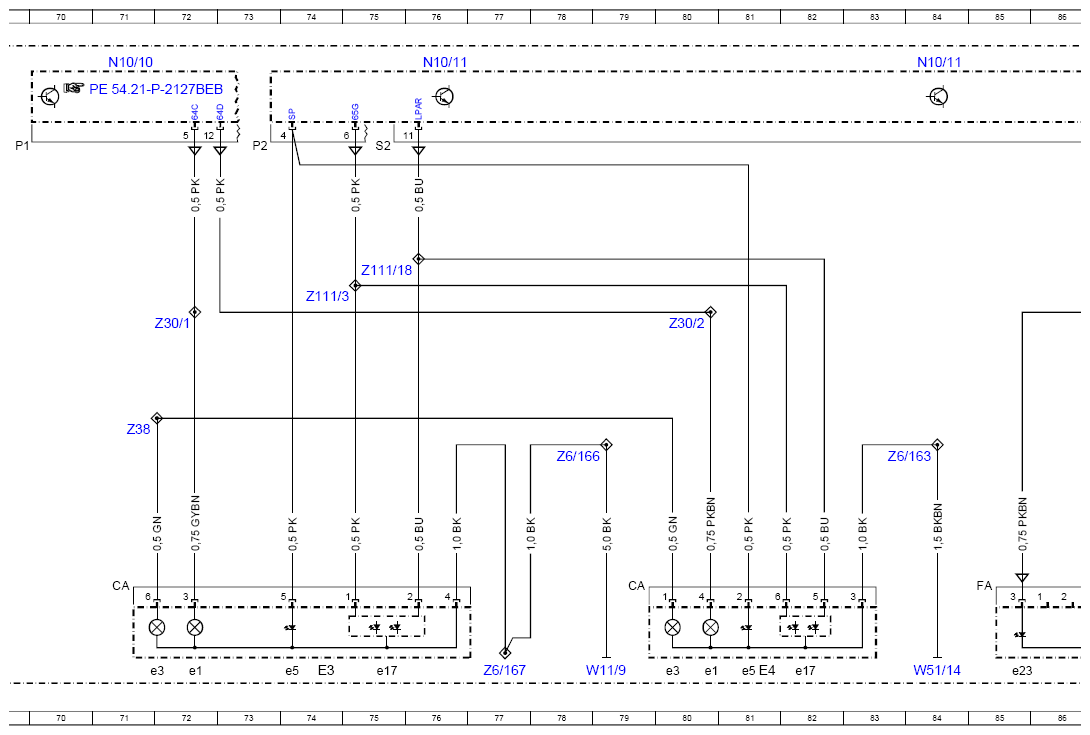

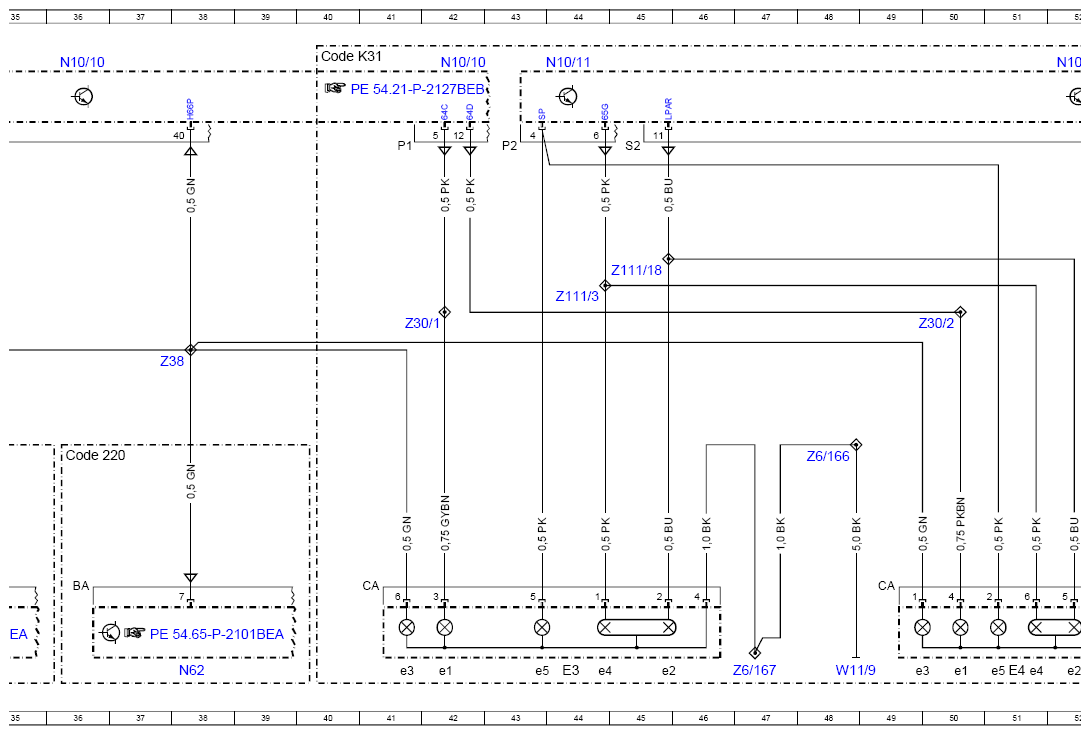

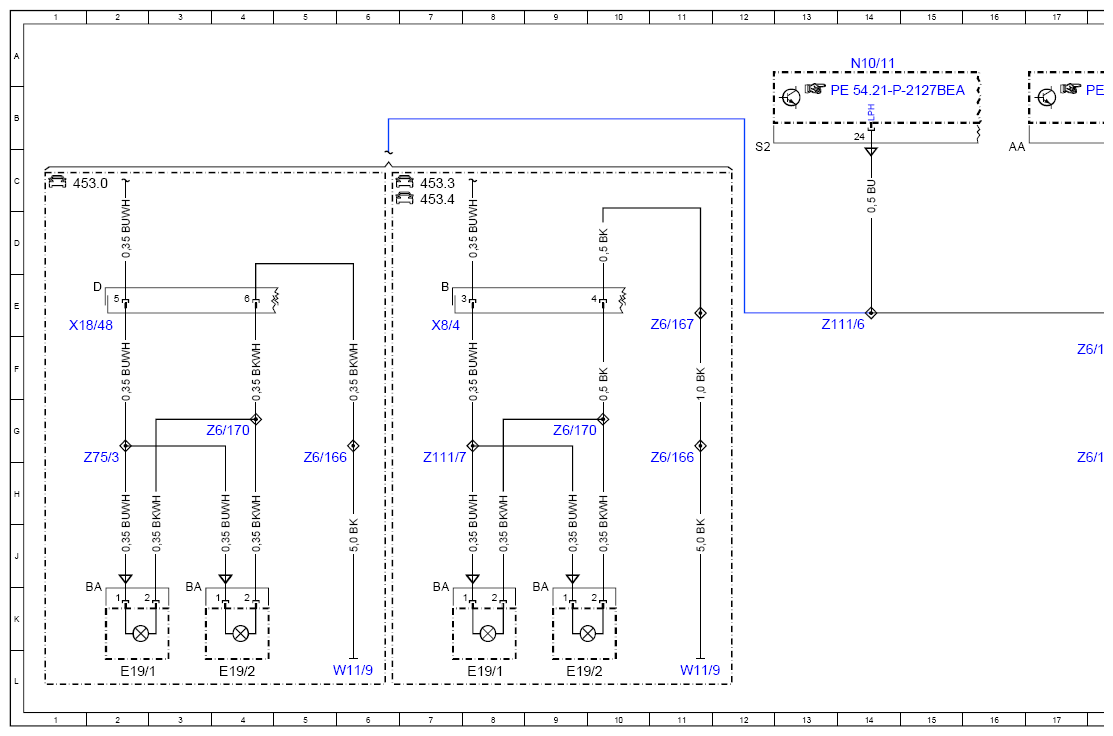

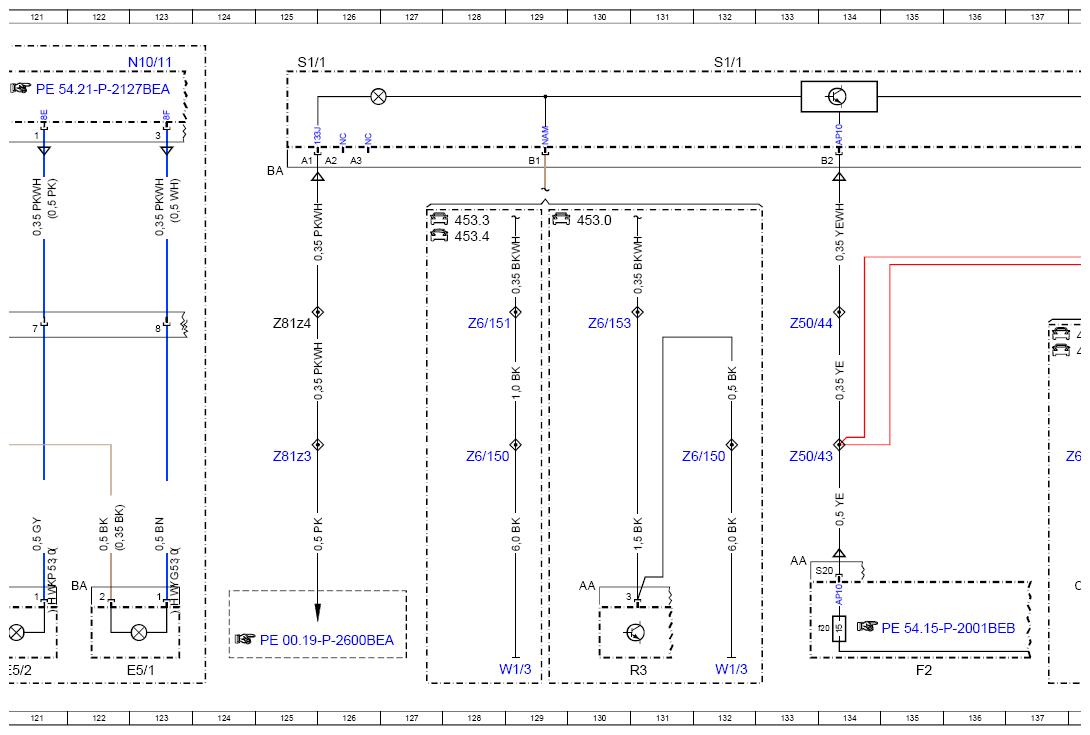

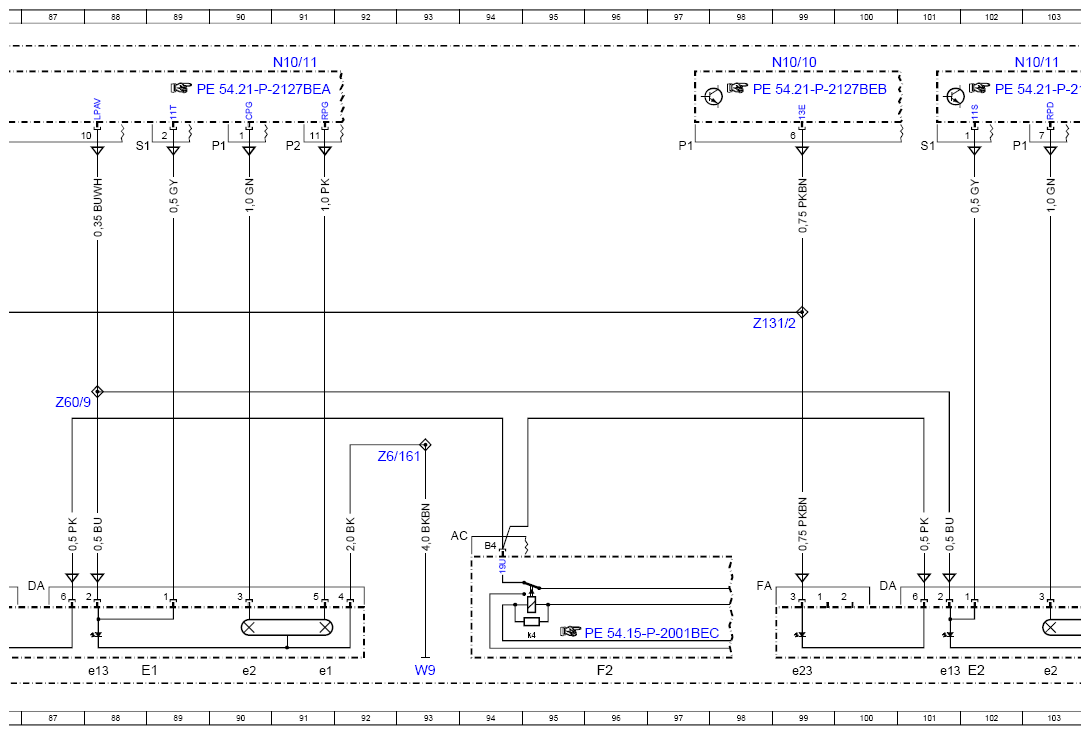

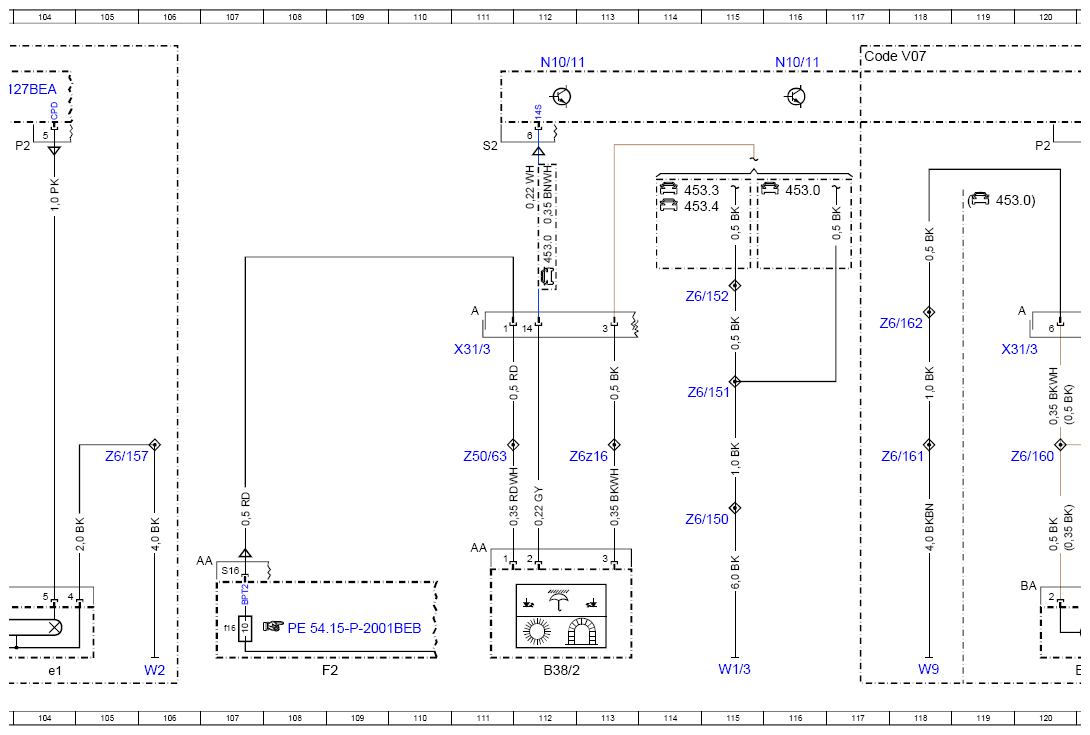

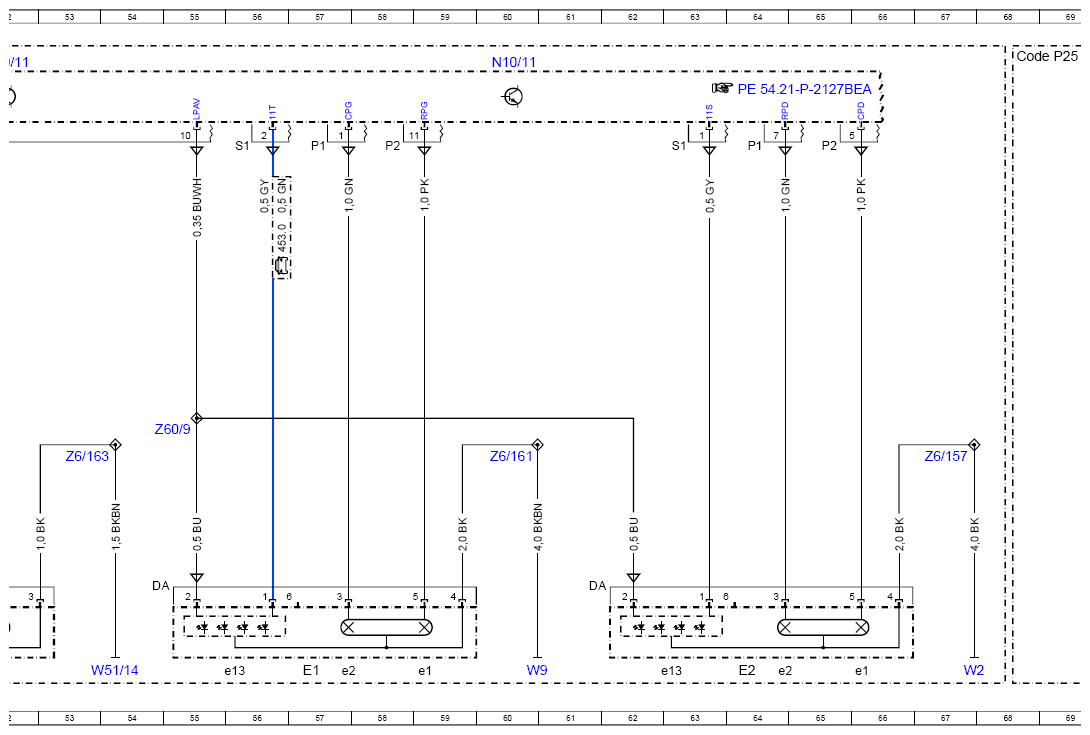

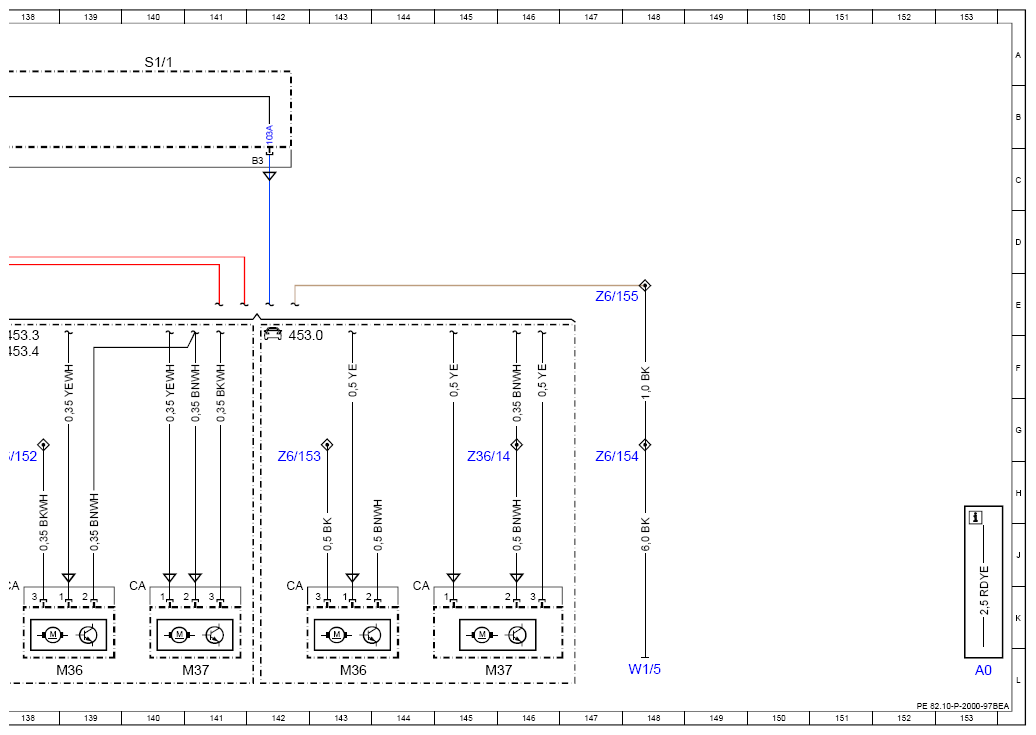

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| B38/2 | Rain/light sensor | 112L |
| Code 220 | Rear parking assist | 36G |
| Code 429 | twinamic | 32G |
| Code K31 | H4 halogen headlamp | 40A |
| Code P25 | LED & sensor package | 68A |
| Code V07 | Front fog lamp | 117A |
| E1 | Left front lamp unit | 57L |
| E1 | Left front lamp unit | 88L |
| E19/1 | Left License plate lamp | 2L |
| E19/1 | Left License plate lamp | 8L |
| E19/2 | Right License plate lamp | 4L |
| E19/2 | Right License plate lamp | 9L |
| E1e1 | Left high beam | 59L |
| E1e1 | Left high beam | 91L |
| E1e13 | Left parking light, standing light and daytime running light | 56L |
| E1e13 | Left parking light, standing light and daytime running light | 88L |
| E1e2 | Left low beam | 57L |
| E1e2 | Left low beam | 90L |
| E1e23 | Left front ambient light | 85L |
| E2 | Right front lamp unit | 64L |
| E2 | Right front lamp unit | 102L |
| E2e1 | Right high beam | 66L |
| E2e1 | Right high beam | 104L |
| E2e13 | Right parking light, standing light and daytime running light | 63L |
| E2e13 | Right parking light, standing light and daytime running light | 101L |
| E2e2 | Right low beam | 64L |
| E2e2 | Right low beam | 103L |
| E2e23 | Right front ambient light | 99L |
| E3 | Left rear lamp unit | 44L |
| E3 | Left rear lamp unit | 74L |
| E3e1 | Left rear turn signal lamp | 42L |
| E3e1 | Left rear turn signal lamp | 72L |
| E3e17 | Left taillight and brake light | 75L |
| E3e2 | Left taillamp and parking lamp | 45L |
| E3e3 | Left backup lamp | 41L |
| E3e3 | Left backup lamp | 71L |
| E3e4 | Left stop lamp | 44L |
| E3e5 | Left rear fog lamp | 43L |
| E3e5 | Left rear fog lamp | 74L |
| E4 | Right rear lamp unit | 51L |
| E4 | Right rear lamp unit | 81L |
| E4e1 | Right rear turn signal lamp | 50L |
| E4e1 | Right rear turn signal lamp | 80L |
| E4e17 | Right taillight and brake light | 82L |
| E4e2 | Right taillamp and parking lamp | 52L |
| E4e3 | Right backup lamp | 49L |
| E4e3 | Right backup lamp | 80L |
| E4e4 | Right stop lamp | 51L |
| E4e5 | Right rear fog lamp | 51L |
| E4e5 | Right rear fog lamp | 81L |
| E5/1 | Left fog lamp | 123L |
| E5/2 | Right fog lamp | 121L |
| F2 | Vehicle interior fuse and relay module | 96L |
| F2 | Vehicle interior fuse and relay module | 109L |
| F2 | Vehicle interior fuse and relay module | 135L |
| F2f 16 | Fuse 16 | 107K |
| F2f20 | Fuse 20 | 134K |
| F2k4 | Front headlamps relay | 95K |
| M36 | Left headlamp range adjustment electric motor | 143L |
| M36 | Left headlamp range adjustment electric motor | 139L |
| M37 | Right headlamp range adjustment electric motor | 145L |
| M37 | Right headlamp range adjustment electric motor | 141L |
| N10/10 | Center SAM control unit | 23A |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 36A |
| N10/10 | Center SAM control unit | 42A |
| N10/10 | Center SAM control unit | 71A |
| N10/10 | Center SAM control unit | 99A |
| N10/11 | Driver SAM control unit | 14A |
| N10/11 | Driver SAM control unit | 44A |
| N10/11 | Driver SAM control unit | 52A |
| N10/11 | Driver SAM control unit | 60A |
| N10/11 | Driver SAM control unit | 76A |
| N10/11 | Driver SAM control unit | 84A |
| N10/11 | Driver SAM control unit | 91A |
| N10/11 | Driver SAM control unit | 103A |
| N10/11 | Driver SAM control unit | 112A |
| N10/11 | Driver SAM control unit | 116A |
| N10/11 | Driver SAM control unit | 123A |
| N15/5 | Electronic selector lever module control unit | 34L |
| N62 | Parking system control unit | 38L |
| R3 | Front cigarette lighter with ashtray illumination | 131L |
| S1/1 | Electric headlamp range adjustment selector wheel | 125A |
| S1/1 | Electric headlamp range adjustment selector wheel | 132A |
| S1/1 | Electric headlamp range adjustment selector wheel | 140A |
| S4 | Combination switch | 18A |
| S6/1 | Instrument panel switch group | 24L |
| S6/1e3 | Central locking indicator lamp | 24L |
| S6/1e4 | Hazard warning system indicator lamp | 26L |
| S6/1e5 | Instrument panel switch group symbol illumination | 23L |
| S6/1s1 | Hazard warning system switch | 27L |
| S6/1s2 | Inside door handle central locking switch | 23L |
| U103 | Valid without code V19 | 27C |
| W1/3 | Left cockpit ground point | 18L |
| W1/3 | Left cockpit ground point | 115L |
| W1/3 | Left cockpit ground point | 132L |
| W1/3 | Left cockpit ground point | 129L |
| W1/5 | Right cockpit ground point | 148L |
| W11/9 | Left rear ground point | 11L |
| W11/9 | Left rear ground point | 6L |
| W11/9 | Left rear ground point | 48L |
| W11/9 | Left rear ground point | 79L |
| W2 | Right front ground point | 67L |
| W2 | Right front ground point | 106L |
| W51/14 | Right rear frame ground connection | 54L |
| W51/14 | Right rear frame ground connection | 84L |
| W9 | Left front ground point (at lamp unit) | 60L |
| W9 | Left front ground point (at lamp unit) | 93L |
| W9 | Left front ground point (at lamp unit) | 118L |
| X18/48 | Vehicle interior/rear end electrical connector | 2E |
| X31/3 | Dome lamp electrical connector | 111F |
| X31/3 | Dome lamp electrical connector | 120F |
| X42/37 | ATA alarm siren electrical connector | 30L |
| X8/4 | Trunk lid electrical connector | 7E |
| Z111/18 | Rear standing lights connector sleeve | 45E |
| Z111/18 | Rear standing lights connector sleeve | 75E |
| Z111/3 | Brake light actuation connector sleeve | 44E |
| Z111/3 | Brake light actuation connector sleeve | 74E |
| Z111/6 | Circuit 58 connector sleeve | 14E |
| Z111/7 | Circuit 58 connector sleeve | 7G |
| Z131/2 | Time-controlled interior illumination connector sleeve | 99E |
| Z30/1 | Left turn signal indicator connector sleeve | 41E |
| Z30/1 | Left turn signal indicator connector sleeve | 72E |
| Z30/2 | Right turn signal indicator connector sleeve | 50E |
| Z30/2 | Right turn signal indicator connector sleeve | 80E |
| Z30/7 | Hazard warning system connector sleeve | 29E |
| Z36/14 | Headlamp range adjustment signal connector sleeve | 145G |
| Z38 | Backup lamp connector sleeve | 71G |
| Z38 | Backup lamp connector sleeve | 38F |
| Z50/43 | Circuit 15 (fused) connector sleeve | 133G |
| Z50/44 | Circuit 15 (fused) connector sleeve | 133E |
| Z50/63 | Circuit 30 (fused) connector sleeve | 111G |
| Z55/5 | Central locking warning lamp connector sleeve | 27E |
| Z6/150 | Ground connection connector sleeve | 18G |
| Z6/150 | Ground connection connector sleeve | 115J |
| Z6/150 | Ground connection connector sleeve | 132G |
| Z6/150 | Ground connection connector sleeve | 128G |
| Z6/151 | Ground connection connector sleeve | 115F |
| Z6/151 | Ground connection connector sleeve | 128E |
| Z6/152 | Ground connection connector sleeve | 18F |
| Z6/152 | Ground connection connector sleeve | 138G |
| Z6/152 | Ground connection connector sleeve | 115E |
| Z6/153 | Ground connection connector sleeve | 142G |
| Z6/153 | Ground connection connector sleeve | 130E |
| Z6/154 | Ground connection connector sleeve | 147G |
| Z6/155 | Ground connection connector sleeve | 147E |
| Z6/157 | Ground connection connector sleeve | 67G |
| Z6/157 | Ground connection connector sleeve | 105G |
| Z6/160 | Ground connection connector sleeve | 120G |
| Z6/161 | Ground connection connector sleeve | 60G |
| Z6/161 | Ground connection connector sleeve | 93G |
| Z6/161 | Ground connection connector sleeve | 118G |
| Z6/162 | Ground connection connector sleeve | 118E |
| Z6/163 | Ground connection connector sleeve | 53G |
| Z6/163 | Ground connection connector sleeve | 84G |
| Z6/166 | Circuit 31 connector sleeve | 11G |
| Z6/166 | Circuit 31 connector sleeve | 5G |
| Z6/166 | Circuit 31 connector sleeve | 48G |
| Z6/166 | Circuit 31 connector sleeve | 78G |
| Z6/167 | Circuit 31 connector sleeve | 77L |
| Z6/167 | Circuit 31 connector sleeve | 47L |
| Z6/167 | Circuit 31 connector sleeve | 11E |
| Z6/170 | Ground connection connector sleeve | 4G |
| Z6/170 | Ground connection connector sleeve | 9G |
| Z60/9 | Daytime running lamp connector sleeve (circuit 58) | 55G |
| Z60/9 | Daytime running lamp connector sleeve (circuit 58) | 87G |
| Z6z16 | Ground connection connector sleeve | 113G |
| Z75/3 | License plate lamp connector sleeve | 2G |
| Z81z3 | Circuit 58d connector sleeve | 125G |
| Z81z4 | Circuit 58d connector sleeve | 125E |
