Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|

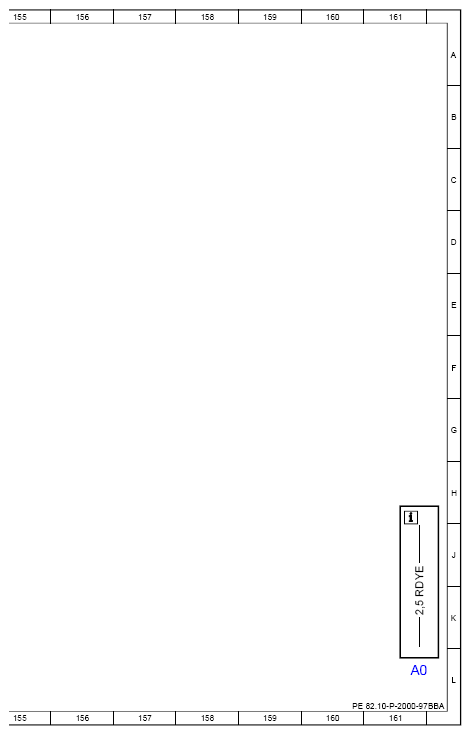

| A0 | Use of wiring diagrams | 161L |
| B38/2 | Rain/Light sensor | 93L |
| Code 220 | Rear parking assist | 39E |
| Code 429 | twinamic | 34E |
| Code 460 | Canada version | 20G |
| Code 494 | USA version | 20G |
| Code E55 | Folding roof | 104E |
| Code K31 | H4 halogen headlamp | 48G |
| Code K31 | H4 halogen headlamp | 68G |
| Code K31 | H4 halogen headlamp | 102G |
| Code K31 | H4 halogen headlamp | 115G |
| Code P25 | LED & sensor package | 54G |
| Code P25 | LED & sensor package | 74G |
| Code P25 | LED & sensor package | 109G |
| Code P25 | LED & sensor package | 121G |
| Code V07 | Front fog lamp | 96G |

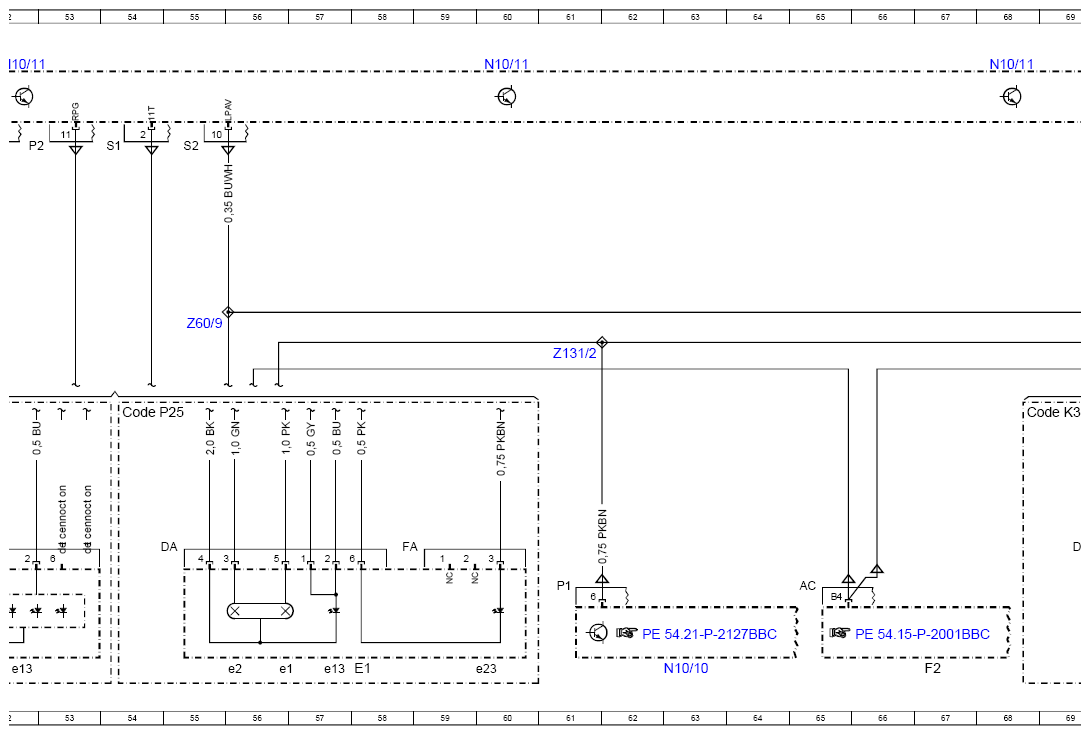

| E1 | Left front lamp unit | 51L |
| E1 | Left front lamp unit | 58L |

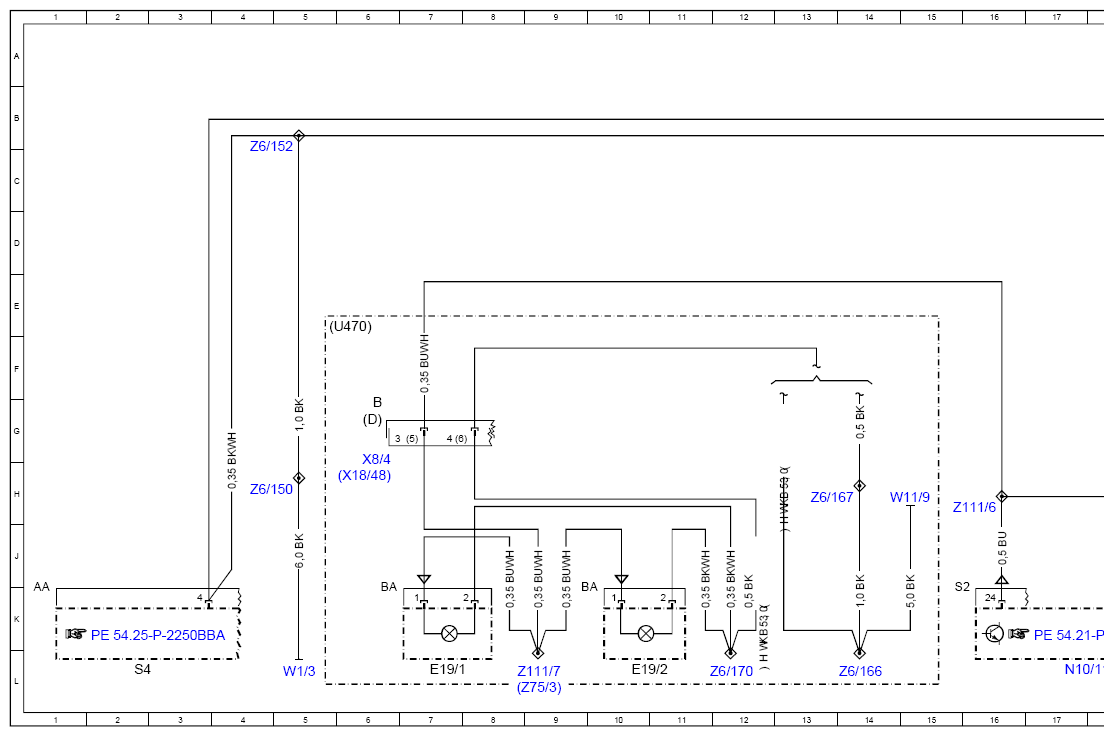

| E19/1 | Left License plate lamp | 7L |
| E19/2 | Right License plate lamp | 10L |
| E1e1 | Left high beam | 51L |
| E1e1 | Left high beam | 56L |
| E1e13 | Left parking light, standing light and daytime running light | 52L |
| E1e13 | Left parking light, standing light and daytime running light | 57L |
| E1e2 | Left low beam | 50L |
| E1e2 | Left low beam | 56L |
| E1e23 | Left front ambient light | 60L |

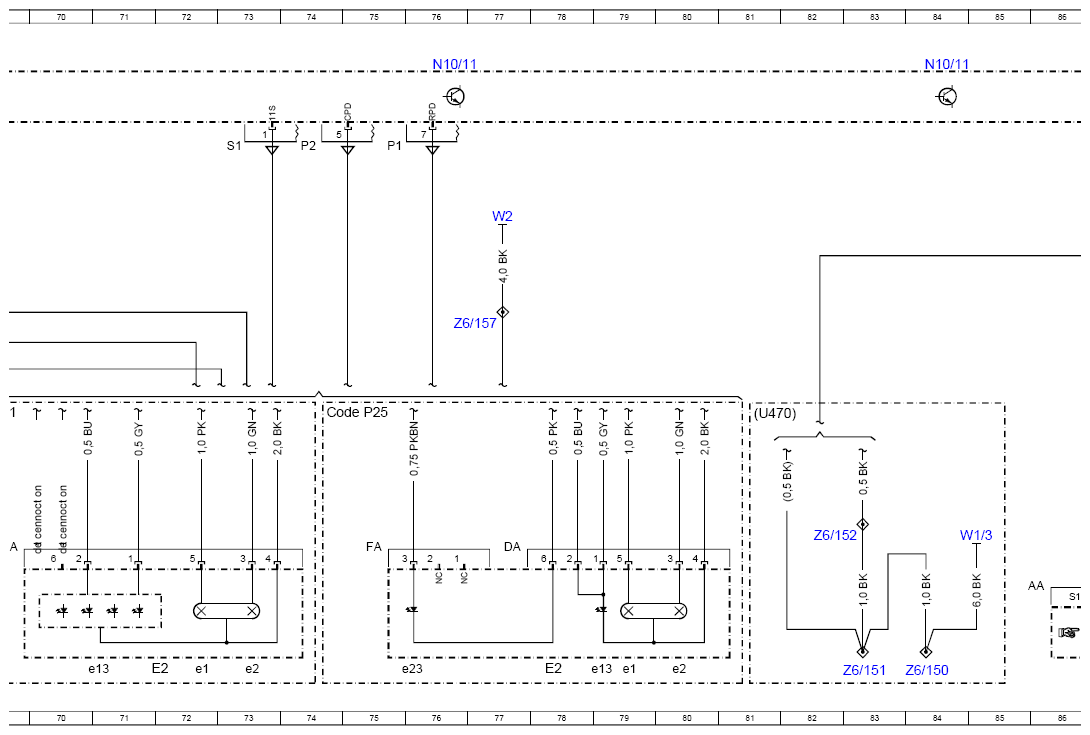

| E2 | Right front lamp unit | 78L |
| E2 | Right front lamp unit | 72L |
| E2e1 | Right high beam | 79L |
| E2e1 | Right high beam | 72L |
| E2e13 | Right parking light, standing light and daytime running light | 79L |
| E2e13 | Right parking light, standing light and daytime running light | 71L |
| E2e2 | Right low beam | 80L |
| E2e2 | Right low beam | 73L |
| E2e23 | Right front ambient light | 76L |

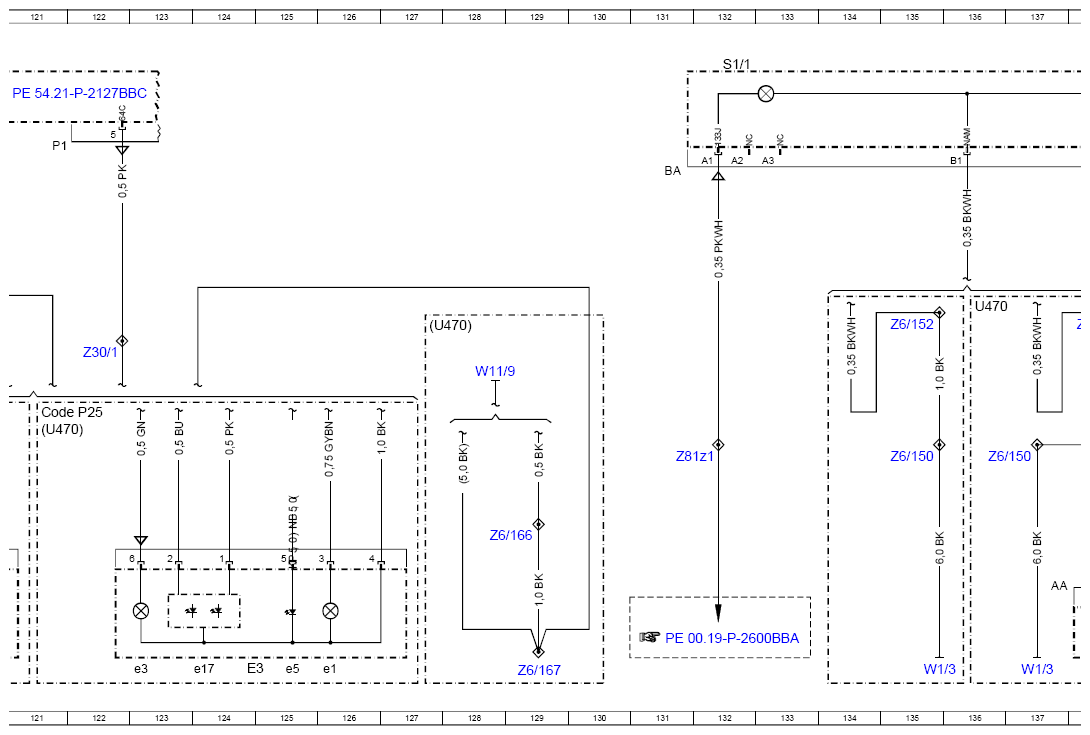

| E3 | Left rear lamp unit | 118L |
| E3 | Left rear lamp unit | 124L |
| E3e1 | Left rear turn signal lamp | 119L |
| E3e1 | Left rear turn signal lamp | 126L |
| E3e17 | Left taillight and brake light | 124L |
| E3e2 | Left taillamp and parking lamp | 117L |
| E3e3 | Left backup lamp | 116L |
| E3e3 | Left backup lamp | 123L |
| E3e4 | Left stop lamp | 118L |
| E3e5 | Left rear fog lamp | 119L |
| E3e5 | Left rear fog lamp | 125L |

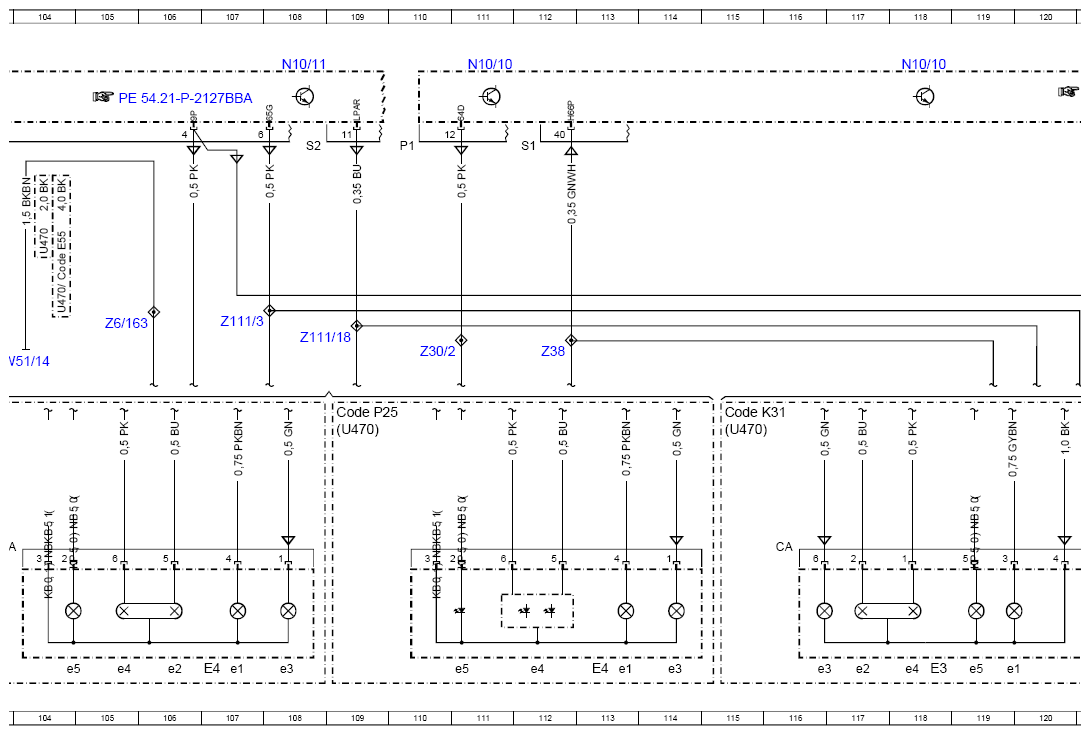

| E4 | Right rear lamp unit | 107L |
| E4 | Right rear lamp unit | 113L |
| E4e1 | Right rear turn signal lamp | 107L |
| E4e1 | Right rear turn signal lamp | 113L |
| E4e2 | Right tail lamp and parking lamp | 106L |
| E4e3 | Right backup lamp | 114L |
| E4e3 | Right backup lamp | 108L |
| E4e4 | Right stop lamp | 105L |
| E4e4 | Right stop lamp | 112L |
| E4e5 | Right rear fog lamp | 104L |
| E4e5 | Right rear fog lamp | 111L |

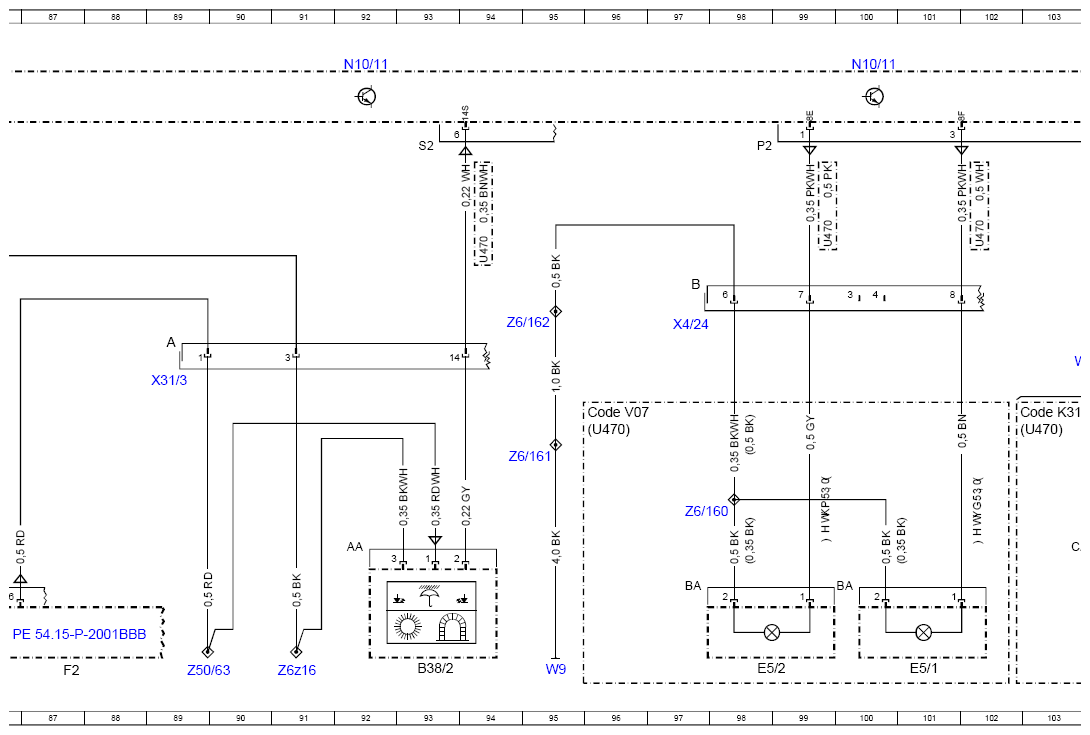

| E5/1 | Left fog lamp | 101L |
| E5/2 | Right fog lamp | 98L |
| F2 | Vehicle interior fuse and relay module | 67L |
| F2 | Vehicle interior fuse and relay module | 87L |
| F2 | Vehicle interior fuse and relay module | 141L |
| F2f20 | Fuse 20 | 143K |

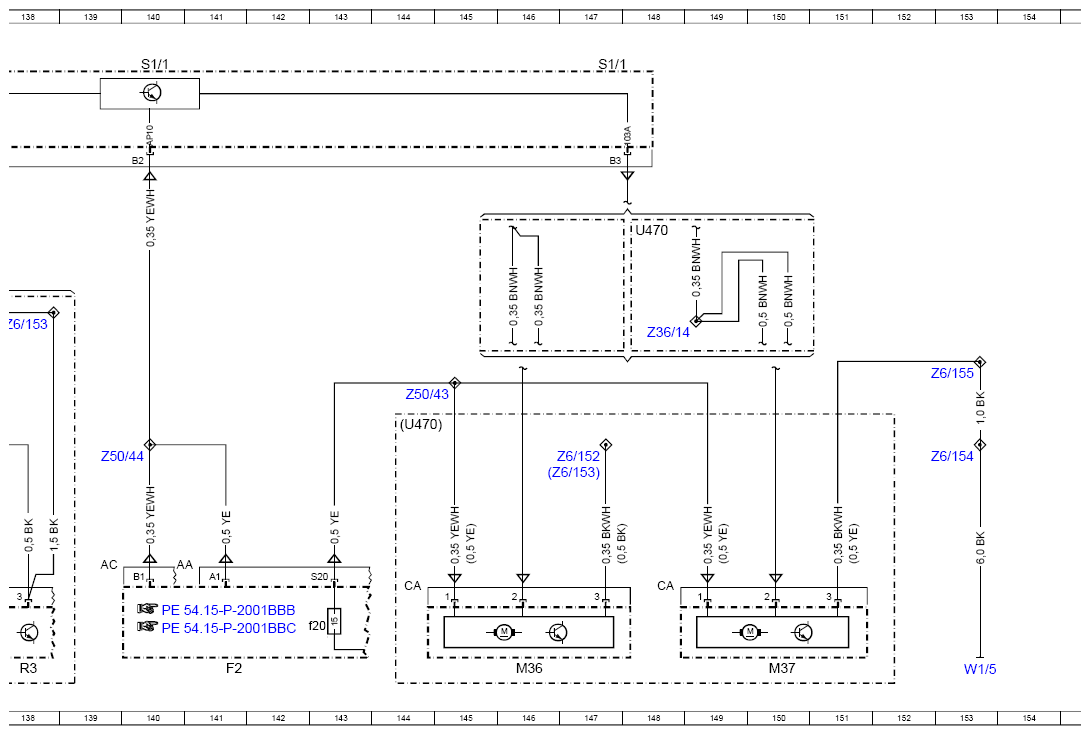

| M36 | Left headlamp range adjustment electric motor | 146L |
| M37 | Right headlamp range adjustment electric motor | 150L |
| N10/10 | Center SAM control unit | 63L |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 36A |
| N10/10 | Center SAM control unit | 44A |
| N10/10 | Center SAM control unit | 111A |
| N10/10 | Center SAM control unit | 118A |
| N10/11 | Driver SAM control unit | 17L |
| N10/11 | Driver SAM control unit | 52A |
| N10/11 | Driver SAM control unit | 60A |
| N10/11 | Driver SAM control unit | 68A |
| N10/11 | Driver SAM control unit | 76A |
| N10/11 | Driver SAM control unit | 84A |
| N10/11 | Driver SAM control unit | 92A |
| N10/11 | Driver SAM control unit | 100A |
| N10/11 | Driver SAM control unit | 108A |

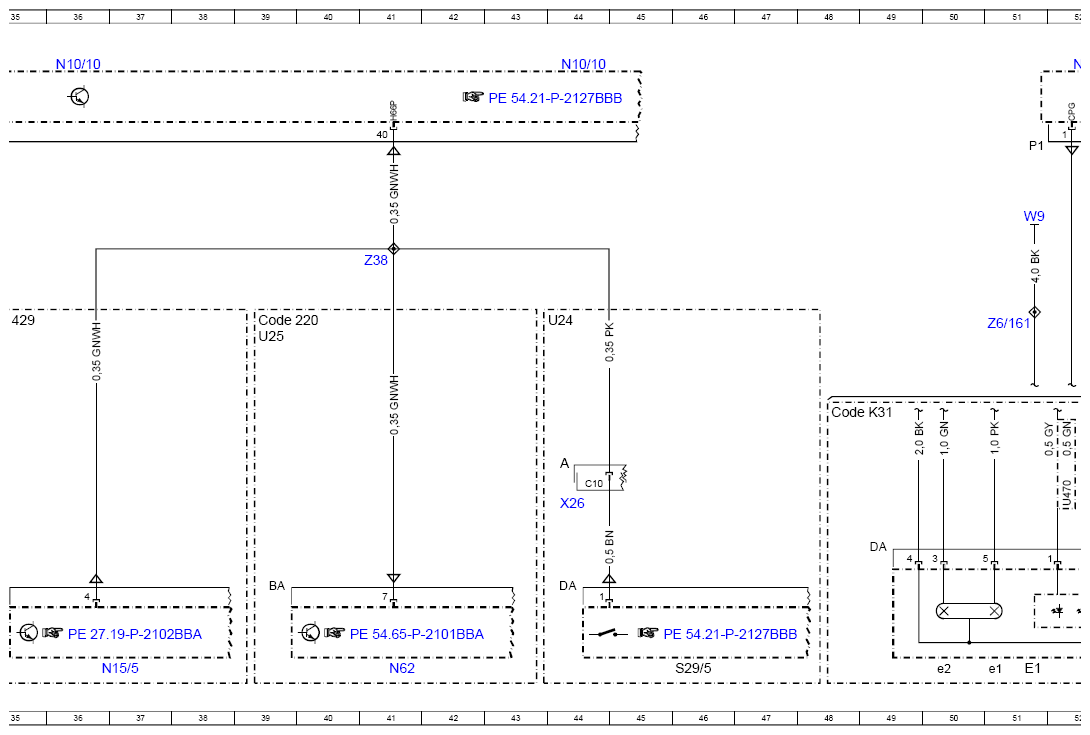

| N15/5 | Electronic selector lever module control unit | 37L |
| N62 | Parking system control unit | 41L |
| R3 | Front cigarette lighter with ashtray illumination | 138L |
| S1/1 | Electric headlamp range adjustment selector wheel | 132A |
| S1/1 | Electric headlamp range adjustment selector wheel | 140A |
| S1/1 | Electric headlamp range adjustment selector wheel | 147A |
| S29/5 | Backup light activation/idle recognition switch | 46L |
| S4 | Combination switch | 2L |

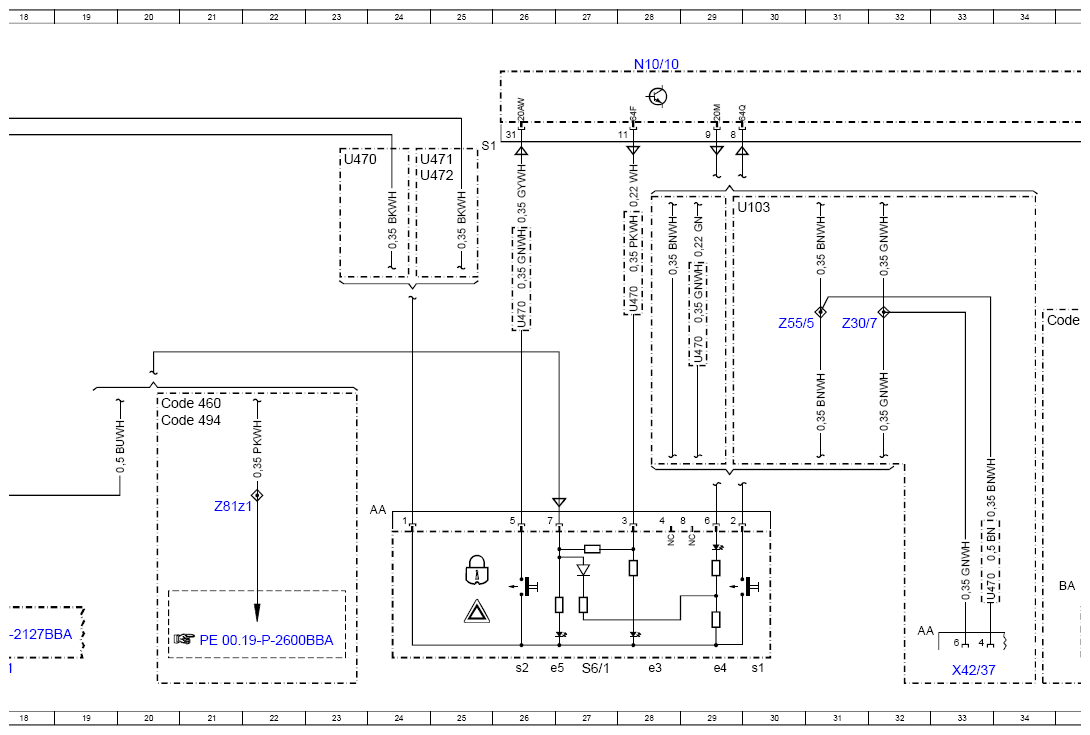

| S6/1 | Instrument pane switch group | 27L |
| S6/1e3 | Central locking indicator lamp | 28L |
| S6/1e4 | Hazard warning system indicator lamp | 29L |
| S6/1e5 | Instrument pane switch group symbol illumination | 27L |
| S6/1s1 | Hazard warning system switch | 30L |
| S6/1s2 | Inside door handle central locking switch | 26L |
| U103 | Valid without code V19 | 29D |
| U24 | Valid for manual transmission | 44E |
| U25 | Valid for automatic transmission | 39F |
| U470 | Valid for model 453.0 | 81G |
| U470 | Valid for model 453.0 | 52H |
| U470 | Valid for model 453.0 | 34K |
| U470 | Valid for model 453.0 | 5E |
| U470 | Valid for model 453.0 | 26E |
| U470 | Valid for model 453.0 | 29F |
| U470 | Valid for model 453.0 | 28E |
| U470 | Valid for model 453.0 | 23C |
| U470 | Valid for model 453.0 | 102G |
| U470 | Valid for model 453.0 | 96G |
| U470 | Valid for model 453.0 | 115G |
| U470 | Valid for model 453.0 | 109G |
| U470 | Valid for model 453.0 | 121G |
| U470 | Valid for model 453.0 | 144G |
| U470 | Valid for model 453.0 | 104D |
| U470 | Valid for model 453.0 | 94D |
| U470 | Valid for model 453.0 | 104E |
| U470 | Valid for model 453.0 | 99D |
| U470 | Valid for model 453.0 | 102D |
| U470 | Valid for model 453.0 | 127E |
| U470 | Valid for model 453.0 | 136E |
| U470 | Valid for model 453.0 | 148D |
| U471 | Valid for model 453.3 | 24C |
| U472 | Valid for model 453.4 | 24C |
| W1/3 | Left cockpit ground point | 5L |
| W1/3 | Left cockpit ground point | 85J |
| W1/3 | Left cockpit ground point | 137L |
| W1/3 | Left cockpit ground point | 135L |
| W1/5 | Right cockpit ground point | 153L |
| W11/9 | Left rear ground point | 15H |
| W11/9 | Left rear ground point | 128F |
| W2 | Right front ground point | 77D |
| W51/14 | Right rear frame ground connection | 104F |
| W9 | Left front ground point (at lamp unit) | 51D |
| W9 | Left front ground point (at lamp unit) | 95L |
| X18/48 | Vehicle interior/rear end electrical connector | 6H |
| X26 | Vehicle interior/engine wiring harness electrical connector | 44H |
| X31/3 | Dome lamp electrical connector | 89F |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 97E |
| X42/37 | ATA alarm siren electrical connector | 33L |
| X8/4 | Trunk lid electrical connector | 6H |
| Z111/18 | Rear standing lights connector sleeve | 109F |
| Z111/3 | Brake light actuation connector sleeve | 107E |
| Z111/6 | Circuit 58 connector sleeve | 16H |
| Z111/7 | Circuit 58 connector sleeve | 9L |
| Z131/2 | Time-controlled interior illumination connector sleeve | 61F |
| Z30/1 | Left turn signal indicator connector sleeve | 122F |
| Z30/2 | Right turn signal indicator connector sleeve | 110F |
| Z30/7 | Hazard warning system connector sleeve | 31E |
| Z36/14 | Headlamp range adjustment signal connector sleeve | 148F |
| Z38 | Backup lamp connector sleeve | 41D |
| Z38 | Backup lamp connector sleeve | 112F |
| Z50/43 | Circuit 15 (fused) connector sleeve | 144G |
| Z50/44 | Circuit 15 (fused) connector sleeve | 140G |
| Z50/63 | Circuit 30 (fused) connector sleeve | 89L |
| Z55/5 | Central locking warning lamp connector sleeve | 30E |
| Z6/150 | Ground connection connector sleeve | 4H |
| Z6/150 | Ground connection connector sleeve | 84L |
| Z6/150 | Ground connection connector sleeve | 137G |
| Z6/150 | Ground connection connector sleeve | 135G |
| Z6/151 | Ground connection connector sleeve | 83L |
| Z6/152 | Ground connection connector sleeve | 4C |
| Z6/152 | Ground connection connector sleeve | 82J |
| Z6/152 | Ground connection connector sleeve | 147G |
| Z6/152 | Ground connection connector sleeve | 135E |
| Z6/153 | Ground connection connector sleeve | 147H |
| Z6/153 | Ground connection connector sleeve | 138E |
| Z6/154 | Ground connection connector sleeve | 153G |
| Z6/155 | Ground connection connector sleeve | 153F |
| Z6/157 | Ground connection connector sleeve | 77E |
| Z6/160 | Ground connection connector sleeve | 97H |
| Z6/161 | Ground connection connector sleeve | 51E |
| Z6/161 | Ground connection connector sleeve | 95G |
| Z6/162 | Ground connection connector sleeve | 95E |
| Z6/163 | Ground connection connector sleeve | 105E |
| Z6/166 | Circuit 31 connector sleeve | 14L |
| Z6/166 | Circuit 31 connector sleeve | 129 J |
| Z6/167 | Circuit 31 connector sleeve | 13H |
| Z6/167 | Circuit 31 connector sleeve | 129L |
| Z6/170 | Ground connection connector sleeve | 12L |
| Z60/9 | Daytime running lamp connector sleeve (circuit 58) | 55E |
| Z6z16 | Ground connection connector sleeve | 91L |
| Z75/3 | License plate lamp connector sleeve | 9L |
| Z81z1 | Circuit 58d connector sleeve | 21H |
| Z81z1 | Circuit 58d connector sleeve | 132G |
