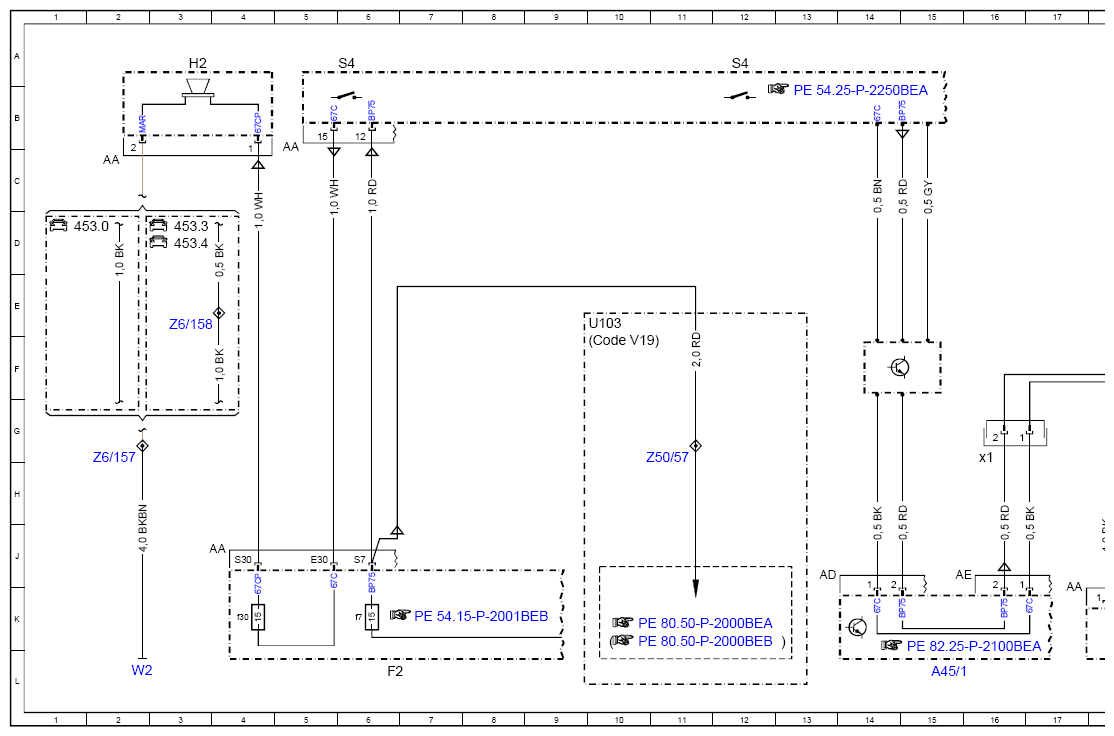

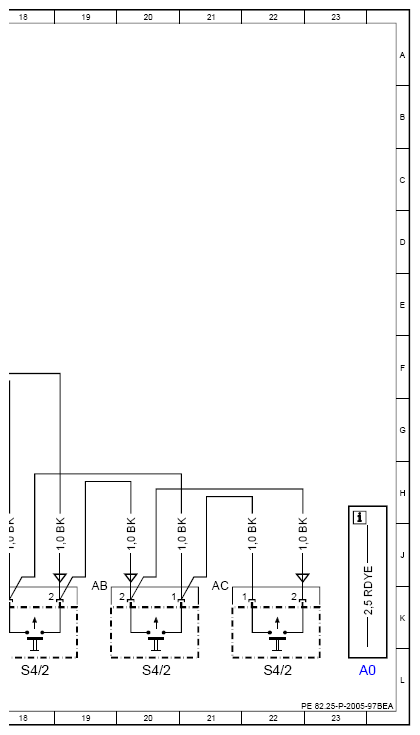

Signaling Horn Wiring Diagram - PE82.25-P-2005-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A45/1 | Steering wheel clock spring contact | 15L |
| A45/1x1 | Steering wheel clock spring contact electrical connector 1 | 16H |
| Code V19 | Anti-theft alarm system | 10F |
| F2 | Vehicle interior fuse and relay module | 6L |
| F2f30 | Fuse 30 | 4K |
| F2f7 | Fuse 7 | 6K |
| H2 | Fanfare horns | 3A |
| S4 | Combination switch | 6A |
| S4 | Combination switch | 12A |
| S4/2 | Horn button | 20L |
| S4/2 | Horn button | 18L |
| S4/2 | Horn button | 22L |
| U103 | Valid without code V19 | 10E |
| W2 | Right front ground point | 2L |
| Z50/57 | Circuit 30 (fused) connector sleeve | 11G |
| Z6/157 | Ground connection connector sleeve | 2G |
| Z6/158 | Ground connection connector sleeve | 3E |
