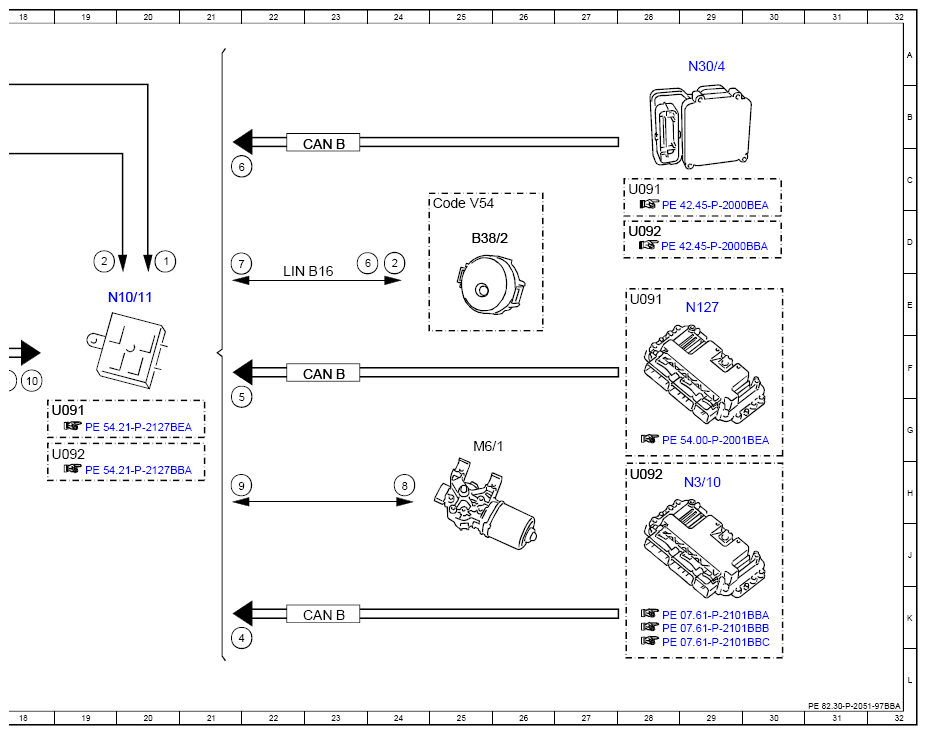

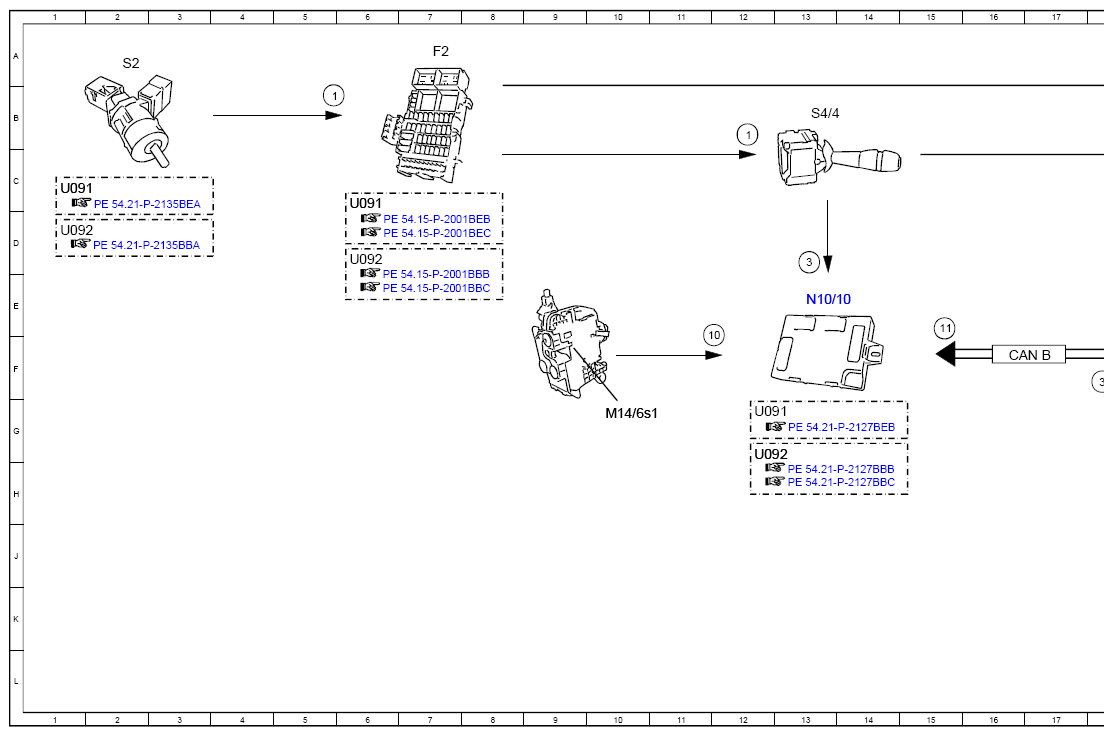

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 5B |
| 1 | Circuit 15, signal | 12B |
| 1 | Circuit 15, signal | 20D |
| 10 | Door rotary tumbler switch, status | 11F |
| 10 | Door rotary tumbler switch, status | 18F |
| 11 | Front windshield wiper, status | 15F |
| 2 | Windshield wiper system switch, status | 24D |
| 2 | Windshield wiper system switch, status | 19D |
| 3 | Wash, request | 13D |
| 3 | Wash, request | 18F |
| 4 | Engine running, signal | 21K |
| 5 | Drivetrain operational, signal | 21G |
| 6 | Vehicle speed, signal | 21C |
| 6 | Vehicle speed, signal | 23D |
| 7 | Rain and light sensor, status | 21D |
| 8 | Wiper motor, actuation | 24H |
| 9 | Windshield wipers in rest position, signal | 21H |
| B38/2 | Rain/light sensor | 25D |
| CAN B | Interior CAN | 16F |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 23F |
| CAN B | Interior CAN | 23C |
| Code V54 | Rain/light sensor | 25C |
| F2 | Vehicle interior fuse and relay module | 7A |
| LIN B16 | Rain and light sensor LIN | 22E |
| M14/6s1 | Driver door central locking system microswitch | 10G |
| M6/1 | Wiper motor | 25G |
| N10/10 | Center SAM control unit | 13E |
| N10/11 | Driver SAM control unit | 20E |
| N127 | Electric drive control unit | 29E |
| N3/10 | ME-SFI [ME] control unit | 29H |
| N30/4 | Electronic Stability Program control unit | 29A |
| S2 | Ignition lock | 2A |
| S4/4 | Windshield wiper system switch | 13B |
| U091 | Valid for model 453.091/391/491 | 6C |
| U091 | Valid for model 453.091/391/491 | 1C |
| U091 | Valid for model 453.091/391/491 | 12G |
| U091 | Valid for model 453.091/391/491 | 18G |
| U091 | Valid for model 453.091/391/491 | 28E |
| U091 | Valid for model 453.091/391/491 | 28C |
| U092 | Except model 453.091/391/491 | 6D |
| U092 | Except model 453.091/391/491 | 1D |
| U092 | Except model 453.091/391/491 | 12G |
| U092 | Except model 453.091/391/491 | 18G |
| U092 | Except model 453.091/391/491 | 28H |
| U092 | Except model 453.091/391/491 | 28D |
