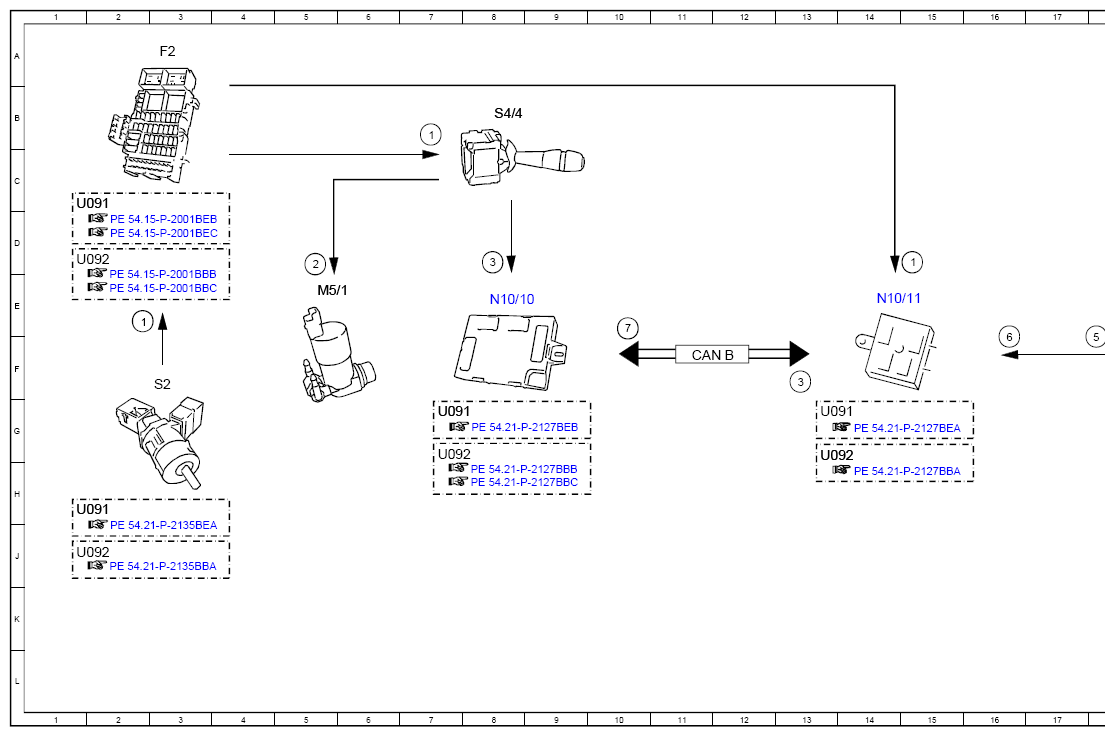

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 2E |
| 1 | Circuit 15, signal | 7B |
| 1 | Circuit 15, signal | 15D |
| 2 | Windshield washer system pump, actuation | 5D |
| 3 | Wash, request | 8D |
| 3 | Wash, request | 13F |
| 4 | Wiper motor, actuation | 18F |
| 5 | Wiper motor (re-wipe), actuation | 18F |
| 6 | Windshield wipers in rest position, signal | 16F |
| 7 | Front windshield wiper, status | 10F |
| CAN B | Interior CAN | 11F |
| F2 | Vehicle interior fuse and relay module | 3A |
| M5/1 | Windshield washer system pump | 5E |
| M6/1 | Wiper motor | 19E |
| N10/10 | Center SAM control unit | 8E |
| N10/11 | Driver SAM control unit | 14E |
| S2 | Ignition lock | 3F |
| S4/4 | Windshield wiper system switch | 8B |
| U091 | Valid for model 453.091/391/491 | 13G |
| U091 | Valid for model 453.091/391/491 | 1H |
| U091 | Valid for model 453.091/391/491 | 7G |
| U091 | Valid for model 453.091/391/491 | 1C |
| U092 | Except model 453.091/391/491 | 13G |
| U092 | Except model 453.091/391/491 | 1J |
| U092 | Except model 453.091/391/491 | 7G |
| U092 | Except model 453.091/391/491 | 1D |
