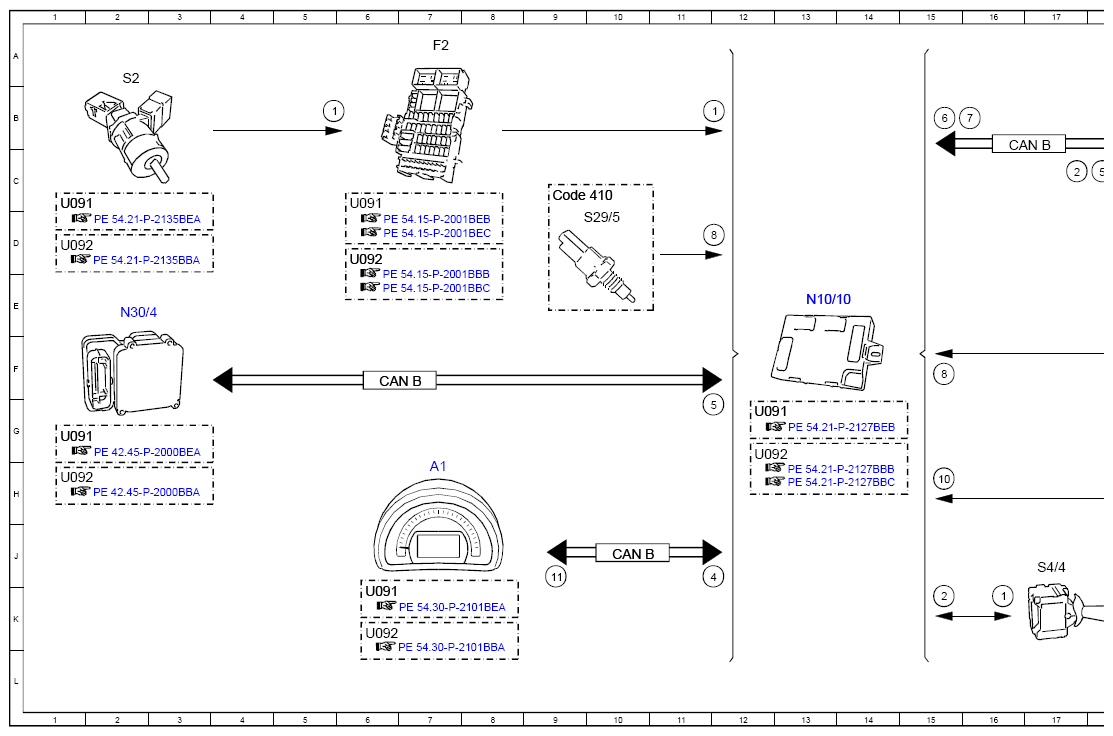

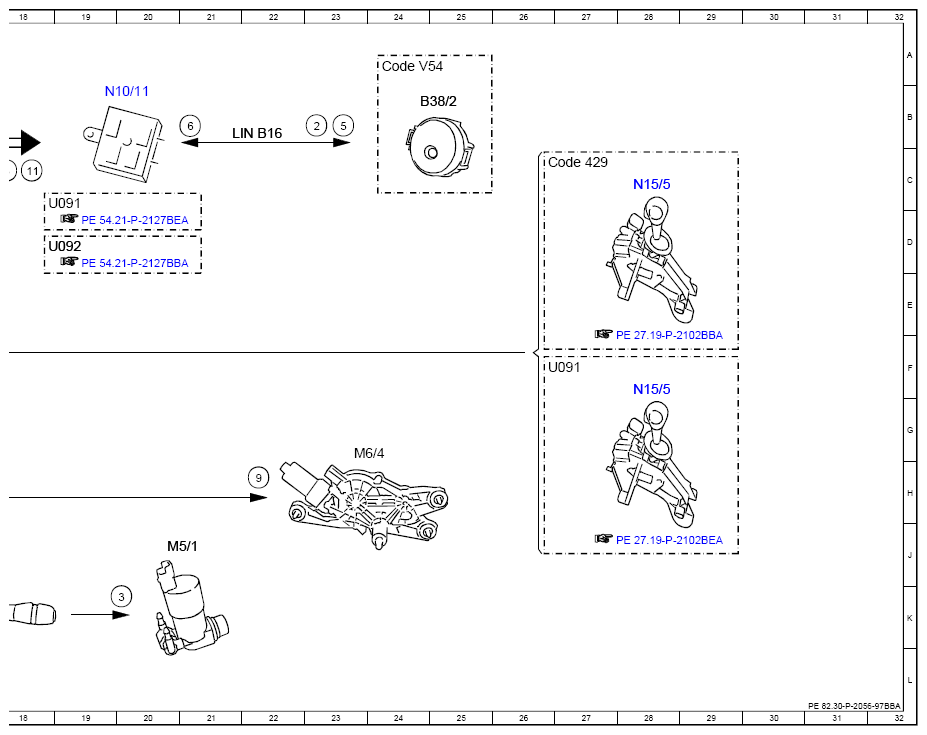

Electrical Function Schematic For Rear Window Wiper System - PE82.30-P-2056-97BBA
MODEL 453.0/3
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 5B |
| 1 | Circuit 15, signal | 16K |
| 1 | Circuit 15, signal | 12B |
| 10 | Rear window wiper in rest position, signal | 15H |
| 11 | Rear window wiper, status | 9J |
| 11 | Rear window wiper, status | 18C |
| 2 | Windshield wiper system switch, status | 15K |
| 2 | Windshield wiper system switch, status | 17C |
| 2 | Windshield wiper system switch, status | 23B |
| 3 | Windshield washer system pump, actuation | 20K |
| 4 | Automatic wipe ON, request | 12J |
| 5 | Vehicle speed, signal | 12G |
| 5 | Vehicle speed, signal | 18C |
| 5 | Vehicle speed, signal | 23B |
| 6 | Rain and light sensor, status | 15B |
| 6 | Rain and light sensor, status | 21B |
| 7 | Front windshield wiper, status | 16B |
| 8 | Reverse gear engaged, signal | 12D |
| 8 | Reverse gear engaged, signal | 15F |
| 9 | Tailgate wiper motor, actuation | 22H |
| A1 | Instrument cluster | 7H |
| B38/2 | Rain/light sensor | 25B |
| CAN B | Interior CAN | 16C |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 10J |
| Code 410 | 5-speed manual transmission | 9C |
| Code 429 | twinamic | 26C |
| Code V54 | Rain/light sensor | 24A |
| F2 | Vehicle interior fuse and relay module | 7A |
| LIN B16 | Rain and light sensor LIN | 22B |
| M5/1 | Windshield washer system pump | 20J |
| M6/4 | Tailgate wiper motor | 23G |
| N10/10 | Center SAM control unit | 13E |
| N10/11 | Driver SAM control unit | 19B |
| N15/5 | Electronic selector lever module control unit | 28F |
| N15/5 | Electronic selector lever module control unit | 28C |
| N30/4 | Electronic Stability Program control unit | 2E |
| S2 | Ignition lock | 2A |
| S29/5 | Backup light activation/idle recognition switch | 10D |
| S4/4 | Windshield wiper system switch | 17J |
| U091 | Valid for model 453.091/391/491 | 6K |
| U091 | Valid for model 453.091/391/491 | 6C |
| U091 | Valid for model 453.091/391/491 | 1G |
| U091 | Valid for model 453.091/391/491 | 1C |
| U091 | Valid for model 453.091/391/491 | 12G |
| U091 | Valid for model 453.091/391/491 | 18C |
| U091 | Valid for model 453.091/391/491 | 26F |
| U092 | Except model 453.091/391/491 | 6K |
| U092 | Except model 453.091/391/491 | 6D |
| U092 | Except model 453.091/391/491 | 1H |
| U092 | Except model 453.091/391/491 | 1D |
| U092 | Except model 453.091/391/491 | 12G |
| U092 | Except model 453.091/391/491 | 18D |
