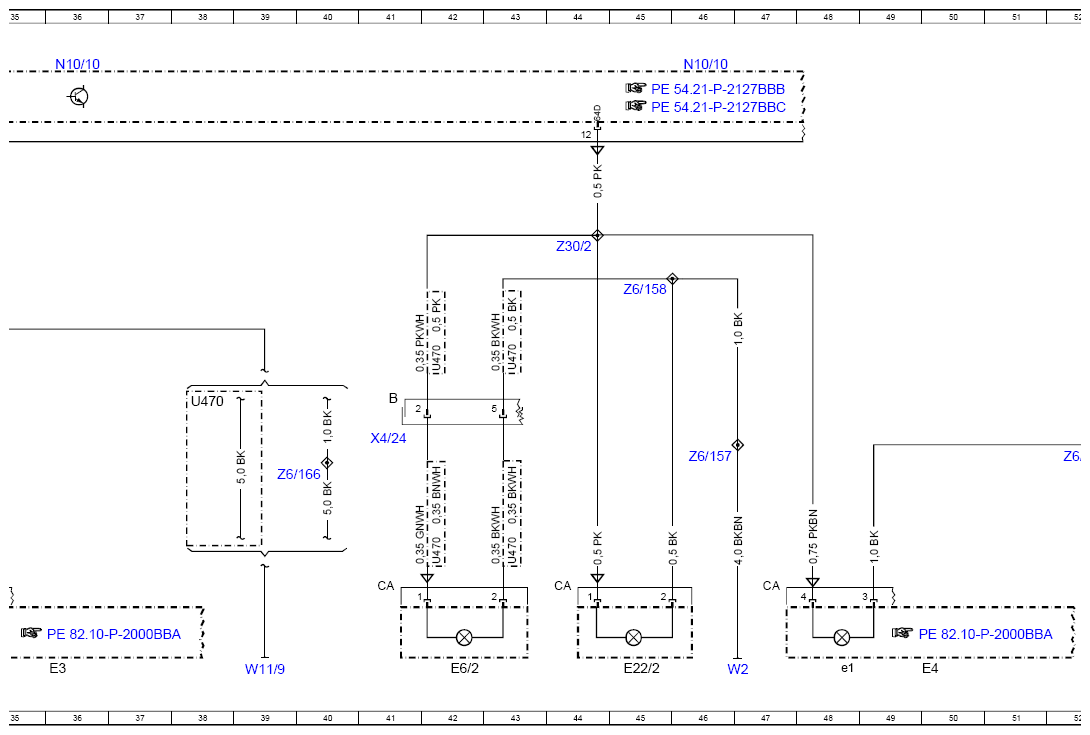

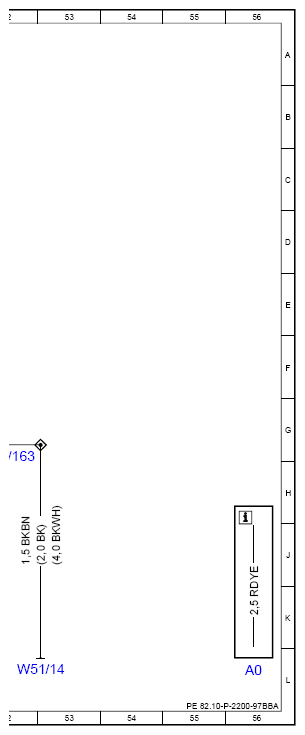

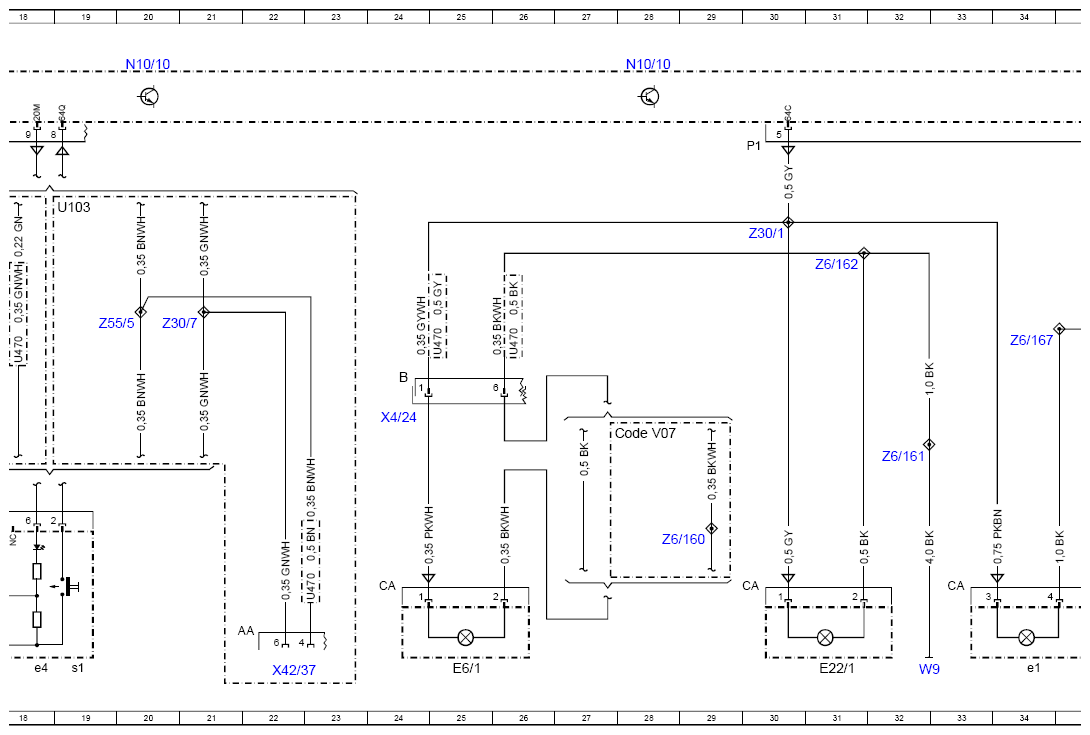

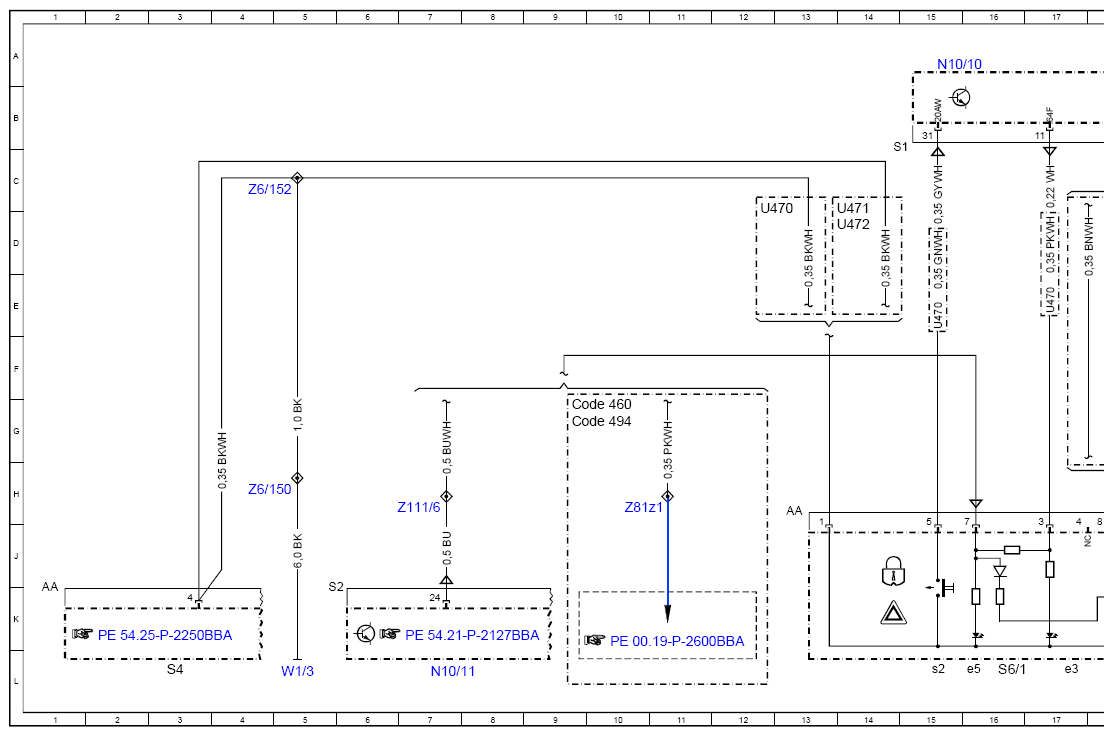

Electric Wiring Diagram Of Turn Signal/Hazard Warning Lamps - PE82.10-P-2200-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code 460 | Canada version | 9G |
| Code 494 | USA version | 9G |
| Code V07 | Front fog lamp | 27G |
| E22/1 | Left additional turn signal lamp | 31L |
| E22/2 | Right additional turn signal lamp | 45L |
| E3 | Left rear lamp unit | 36L |
| E3e1 | Left rear turn signal lamp | 34L |
| E4 | Right rear lamp unit | 50L |
| E4e1 | Right rear turn signal lamp | 48L |
| E6/1 | Left turn signal lamp | 25L |
| E6/2 | Right turn signal lamp | 42L |
| N10/10 | Center SAM control unit | 15A |
| N10/10 | Center SAM control unit | 20A |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 46A |
| N10/10 | Center SAM control unit | 36A |
| N10/11 | Driver SAM control unit | 7L |
| S4 | Combination switch | 3L |
| S6/1 | Instrument panel switch group | 16L |
| S6/1e3 | CentraI locking indicator lamp | 17L |
| S6/1e4 | Hazard warning system indicator lamp | 18L |
| S6/1e5 | Instrument panel switch group symbol illumination | 16L |
| S6/1s1 | Hazard warning system switch | 19L |
| S6/1s2 | Inside door handle central locking switch | 15L |
| U103 | Valid without code V19 | 19D |
| U470 | Valid for model 453.0 | 23K |
| U470 | Valid for model 453.0 | 15E |
| U470 | Valid for model 453.0 | 18F |
| U470 | Valid for model 453.0 | 17E |
| U470 | Valid for model 453.0 | 12D |
| U470 | Valid for model 453.0 | 26F |
| U470 | Valid for model 453.0 | 25F |
| U470 | Valid for model 453.0 | 42J |
| U470 | Valid for model 453.0 | 43J |
| U470 | Valid for model 453.0 | 38G |
| U470 | Valid for model 453.0 | 42F |
| U470 | Valid for model 453.0 | 43F |
| U471 | Valid for model 453.3 | 13D |
| U472 | Valid for model 453.4 | 13D |
| W1/3 | Left cockpit ground point | 5L |
| W11/9 | Left rear ground point | 39L |
| W2 | Right front ground point | 47L |
| W51/14 | Right rear frame ground connection | 52L |
| W9 | Left front ground point (at lamp unit) | 32L |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 24G |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 41G |
| X42/37 | ATA alarm siren electrical connector | 22L |
| Z111/6 | Circuit 58 connector sleeve | 7H |
| Z30/1 | Left turn signal indicator connector sleeve | 30D |
| Z30/2 | Right turn signal indicator connector sleeve | 44D |
| Z30/7 | Hazard warning system connector sleeve | 21E |
| Z55/5 | Central locking warning lamp connector sleeve | 20E |
| Z6/150 | Ground connection connector sleeve | 4H |
| Z6/152 | Ground connection connector sleeve | 4C |
| Z6/157 | Ground connection connector sleeve | 46G |
| Z6/158 | Ground connection connector sleeve | 45E |
| Z6/160 | Ground connection connector sleeve | 29J |
| Z6/161 | Ground connection connector sleeve | 32G |
| Z6/162 | Ground connection connector sleeve | 31D |
| Z6/163 | Ground connection connector sleeve | 52G |
| Z6/166 | Circuit 31 connector sleeve | 40H |
| Z6/167 | Circuit 31 connector sleeve | 34F |
| Z81z1 | Circuit 58d connector sleeve | 10H |
