Remove Longitudinal Member At Rear - Ar64.20-P-1200-22SRA

MODEL 453

Shown on MODEL 453.3

1. Mark separating points on outer rear longitudinal member (1) and cut (area B).

   Dimensions:

   a = 140 mm

   Separating point in area A can be selected freely to facilitate removal.

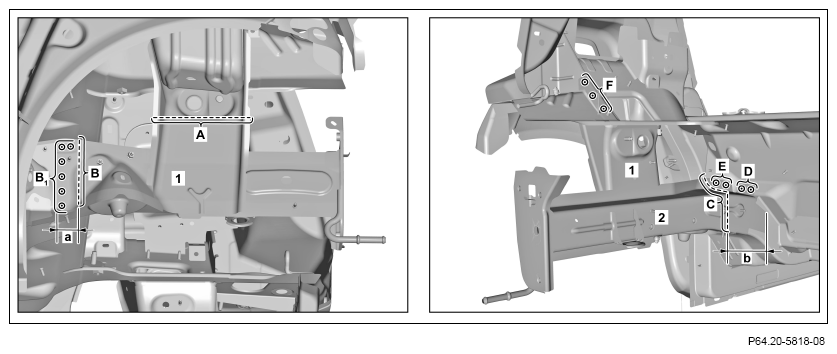

   Fig 1: Locating Areas A, B, B₁ , C, D, E, F

   Courtesy of MERCEDES-BENZ USA
2. Mark separating points on inner rear longitudinal member (2) and cut (area C)

   Dimensions:

   b = 170 mm

3. Expose spot welds on rear longitudinal members (1, 2) and cut (areas B₁ , D, E and F).
4. Remove rear longitudinal members (1, 2).
5. Expose spot welds on rear |longitudinal members (1, 2) and cut (areas G, H, I, J, K and L).

   Cut out spot welds through two panel thicknesses (area K).

   Shown on MODEL 453.3

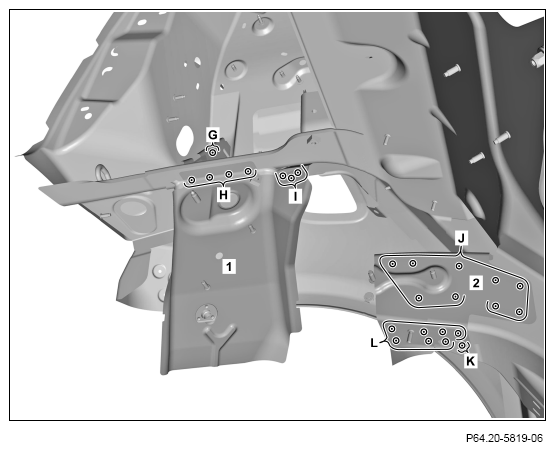

   Fig 2: Locating Areas G, H, I, J, K & L

   Courtesy of MERCEDES-BENZ USA
