Install TAILLAMP Mount - Ar64.20-P-1063-03SR

MODEL 453

1. Install tail amp mount (1), fit.
2. Remove tail amp mount (1).
3. Apply sealant to foam parts in crosshatched areas (areas N).

   Shown on MODEL 453.3

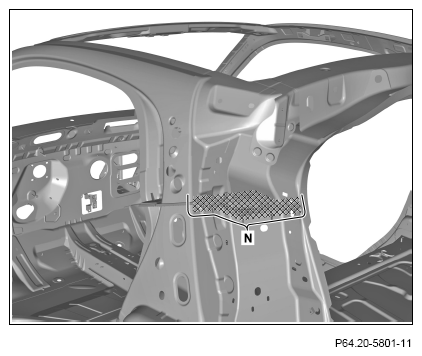

   Fig 1: Locating Area N

   Courtesy of MERCEDES-BENZ USA
4. Install tail amp mount (1), fit and fix in place.
5. Taillamp mount (1) (areas X and Y).

   Only if required

   Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

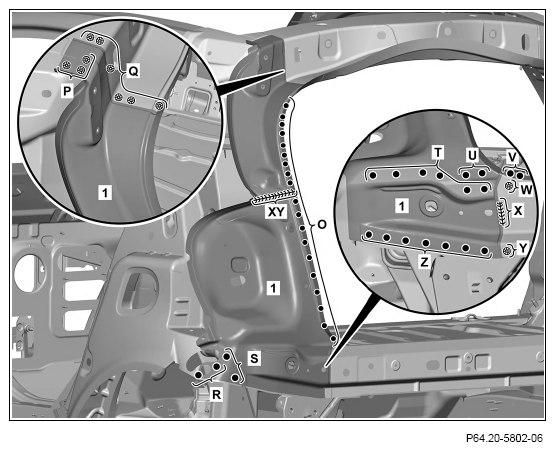

   Fig 2: Locating Areas P, Q, R, S, T, U, V, W, X, Y, Z & XY

   Courtesy of MERCEDES-BENZ USA
6. Taillamp mount (1) (areas O, T, U, V and Z).
7. Drill out taillamp mount (1) with 7 mm bit down to thickness of one layer of sheet metal (areas P, R, S, W and Y).
8. Taillamp mount (1) (areas P, Q, R, S, W and Y).

   Shown on MODEL 453.3
