Install Rear Longitudinal Member - Ar64.20-P-1200-24SRA

MODEL 453

1. Install rear inner longitudinal member (2), fit and fix in place.
2. Drill 0 6.7 mm rivet holes in rear inner longitudinal member (2) (areas R, U and V).

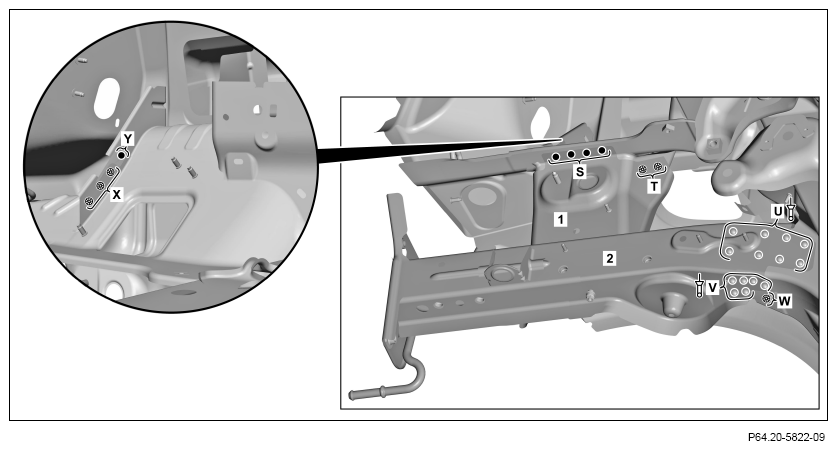

   Fig 1: Locating Areas S, T, U, V, W. X & Y

   Courtesy of MERCEDES-BENZ USA
3. Remove inner rear longitudinal member (2).
4. Deburr rivet holes inner rear longitudinal member (2) and body on both sides.
5. Remove drilling shavings with wet/dry vacuum cleaner.
6. Coat insides of riveted joints with zinc dust paint.
7. Install rear inner longitudinal member (2), fit and fix in place.
8. Rivet inner rear longitudinal member (2) with 6.5x12.5 rivets (areas R, U and V).
9. Drill inner rear longitudinal member (2) with 7 mm sheet metal thickness (area W).
10. Inner rear longitudinal member (2) (area W).
11. Install outer rear longitudinal member (1), fit and fix in place.
12. Drill 6.7 mm rivet holes in outer rear longitudinal member (1) (area M).

    Shown on MODEL 453.3

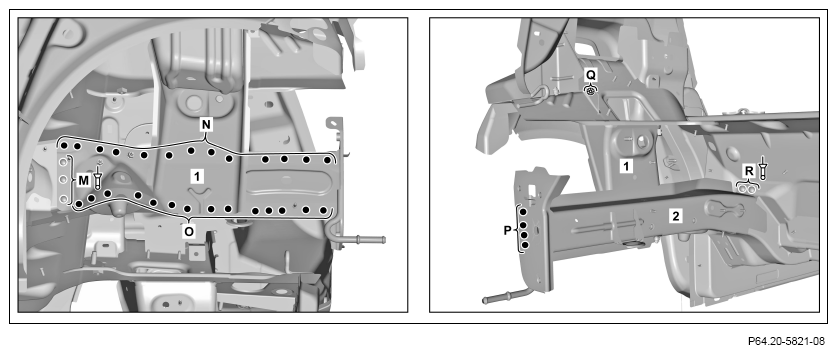

    Fig 2: Locating Areas M, N, O, P & Q

    Courtesy of MERCEDES-BENZ USA
13. Remove outer rear longitudinal member (1).
14. Deburr rivet holes on outer rear longitudinal member (1) and body on both sides.
15. Remove drilling shavings with wet/dry vacuum cleaner.
16. Coat insides of riveted joints with zinc dust paint.
17. Install outer rear longitudinal member (1), fit and fix in place.
18. Rivet outer rear longitudinal member (1) with 6.5x12.5 rivets (areas M and R).
19. Outer rear longitudinal member (1) (areas N, O, P, S and Y).
20. Rivet outer rear longitudinal member (1) with 7 mm sheet metal thickness (areas Q, T and X).
21. Outer rear longitudinal member (1) so Q (areas Q, T and X).
