Install Rear CROSSMEMBER - Ar64.20-P-1100-05SR

MODEL 453

1. Install rear crossmember (1), fit and fix in place.
2. Rear crossmember (1) (areas E and F).

   Shown on MODEL 453.3

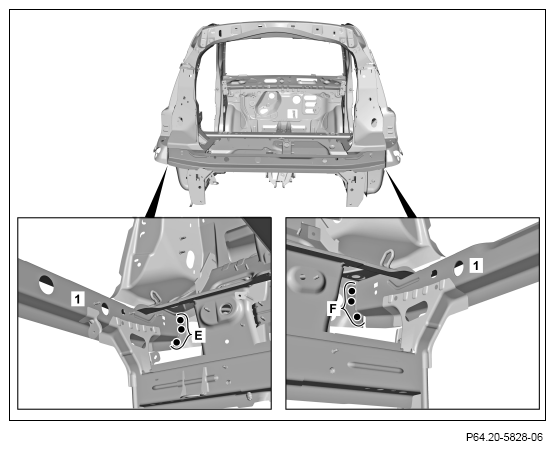

   Fig 1: Locating Areas E & F

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 453.3

3. Rear crossmember (1) (areas I and J).

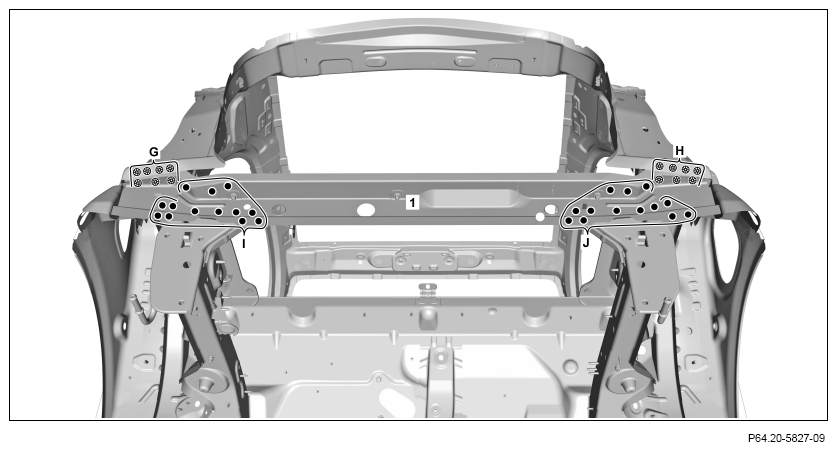

   Fig 2: Locating Areas G, H, I, J

   Courtesy of MERCEDES-BENZ USA
4. Drill rear crossmember (1) with 7 mm sheet metal thickness (areas G and H).
5. Rear crossmember (1) (areas G and H).
