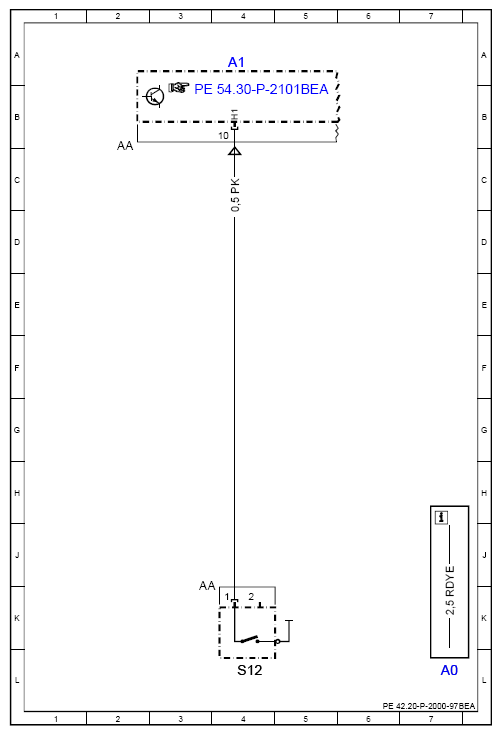

Wiring Diagram Of Parking Brake - PE42.20-P-2000-97BEA

MODEL 453.091/391/491 up to model year 2020

Code:	Designation:	Position:
A0	Use of wiring diagrams	7L
A1	Instrument cluster	4A
S12	Parking brake indicator switch	4L

Courtesy of MERCEDES-BENZ USA
