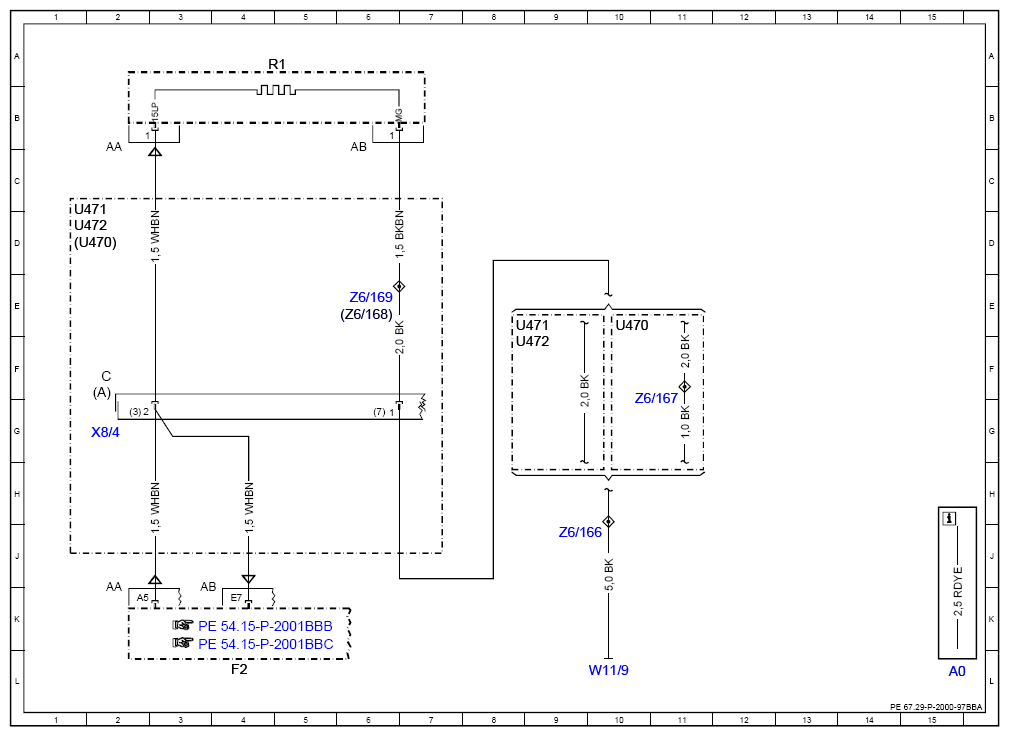

Electric Wiring Diagram For Heated Rear Window - PE67.29-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 15L |
| F2 | Vehicle interior fuse and relay module | 4L |
| R1 | Rear window heater | 4A |
| U470 | Valid for model 453. 0 | 1D |
| U470 | Valid for model 453. 0 | 10E |
| U471 | Valid for model 453. 3 | 8E |
| U471 | Valid for model 453. 3 | 1D |
| U472 | Valid for model 453. 4 | 8F |
| U472 | Valid for model 453. 4 | 1D |
| W11/9 | Left rear ground point | 10L |
| X8/4 | Trunk lid electrical connector | 2G |
| Z6/166 | Circuit 31 connector sleeve | 9J |
| Z6/167 | Circuit 31 connector sleeve | 11G |
| Z6/168 | Circuit 31 connector sleeve | 6E |
| Z6/169 | Circuit 31 connector sleeve | 6E |
