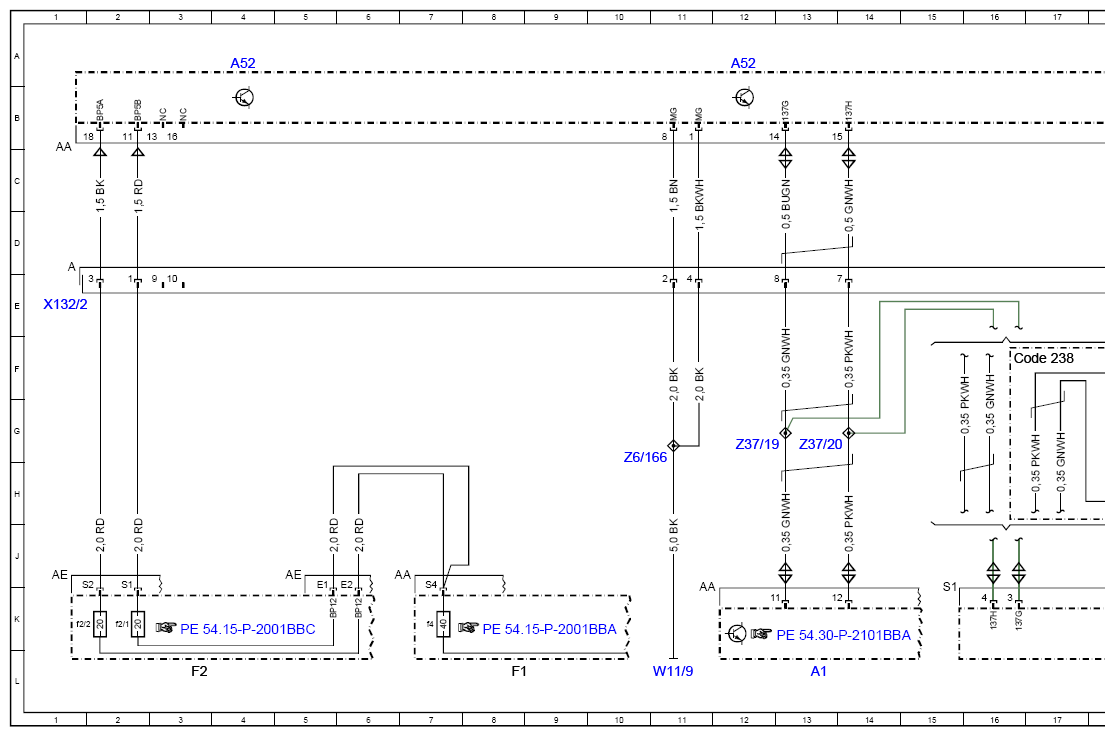

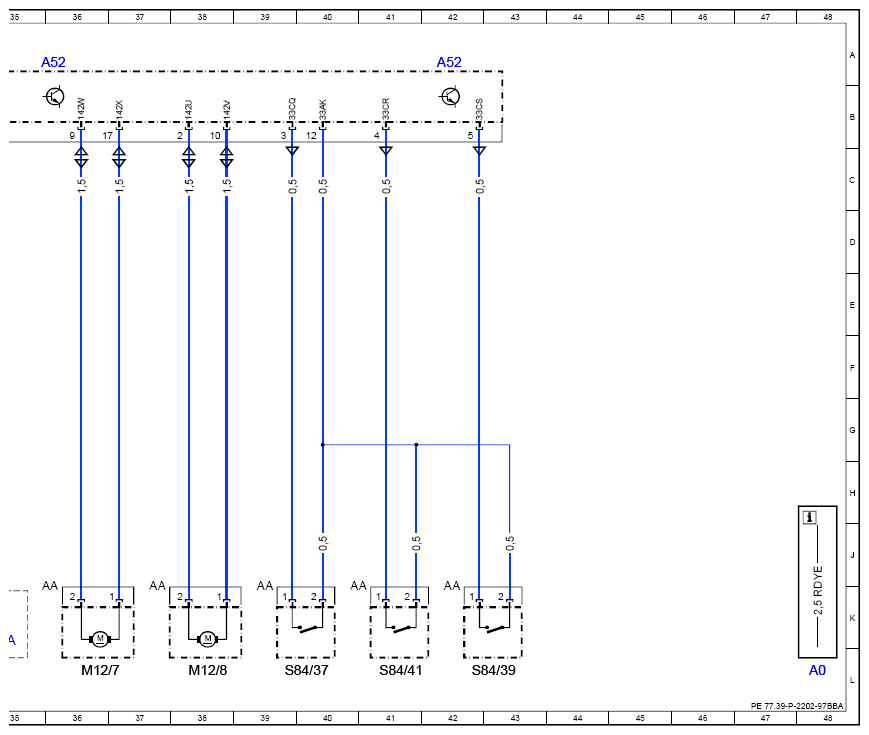

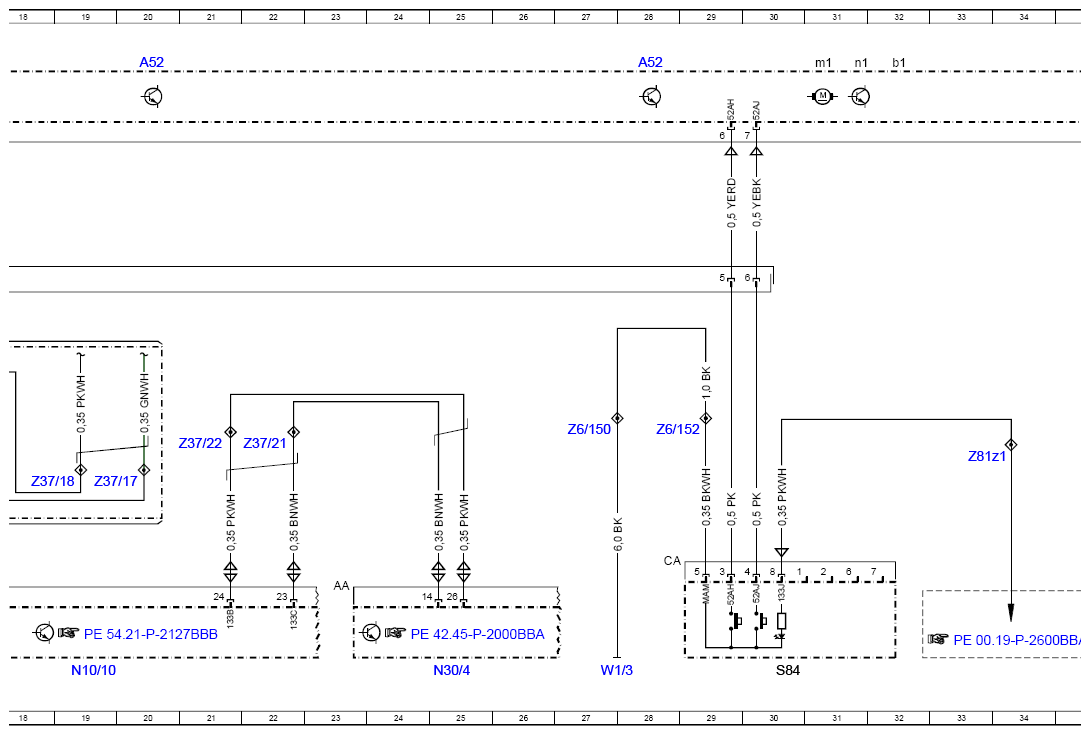

Wiring Diagram Of Soft Top Control Unit - PE77.39-P-2202-97BBA
MODEL 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A1 | Instrument cluster | 13L |
| A52 | Soft top control drive unit | 4A |
| A52 | Soft top control drive unit | 12A |
| A52 | Soft top control drive unit | 20A |
| A52 | Soft top control drive unit | 28A |
| A52 | Soft top control drive unit | 36A |
| A52 | Soft top control drive unit | 42A |
| A52b1 | Front folding roof drive motor Hall sensor | 32A |
| A52m1 | Front folding roof drive motor | 31A |
| A52n1 | Soft top control unit | 31A |
| Code 238 | ACTIVE LANE KEEPING ASS]ST | 16F |
| F1 | Power supply fuse and relay module | 8L |
| F1f4 | Fuse 4 | |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f2/1 | Fuse 1 | 2K |
| F2f2/2 | Fuse 2 | 1K |
| M12/7 | Left soft top drive electric motor | 36L |
| M12/8 | Right soft top drive electric motor | 38L |
| N10/10 | Center SAM control unit | 19L |
| N30/4 | Electronic Stability Program control unit | 25L |
| S84 | Power soft top switch | 30L |
| S84/37 | Folding roof microswitch | 39L |
| S84/39 | Right rear soft top microswitch | 42L |
| S84/41 | Left rear soft top microswitch | 41L |
| W1/3 | Left cockpit ground point | 27L |
| W11/9 | Left rear ground point | 11L |
| X132/2 | Soft top electrical connector | 1E |
| Z37/17 | CAN bus (low) connector sleeve | 20H |
| Z37/18 | CAN databus (high) connector sleeve | 18H |
| Z37/19 | CAN bus (low) connector sleeve | 12G |
| Z37/20 | CAN databus (high) connector sleeve | 13G |
| Z37/21 | CAN bus (low) connector sleeve | 22G |
| Z37/22 | CAN databus (high) connector sleeve | 21G |
| Z6/150 | Ground connection connector sleeve | 27G |
| Z6/152 | Ground connection connector sleeve | 28G |
| Z6/166 | Circuit 31 connector sleeve | 10G |
| Z81z1 | Circuit 58d connector sleeve | 33G |
