Remove/Install Cover On Center Console - AR68.20-P-2350SR
MODEL 453
Shown on Model 453.3 with transmission 700.122 and code J58 (Center console with drawer)
Shown on Model 453.4 with transmission 700.411
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition | Model 453 with transmission 700.41 | |
| 2 | Move selector lever to travel direction | Model 453 with transmission 700.41 | |
| 3 | Switch off ignition | ||

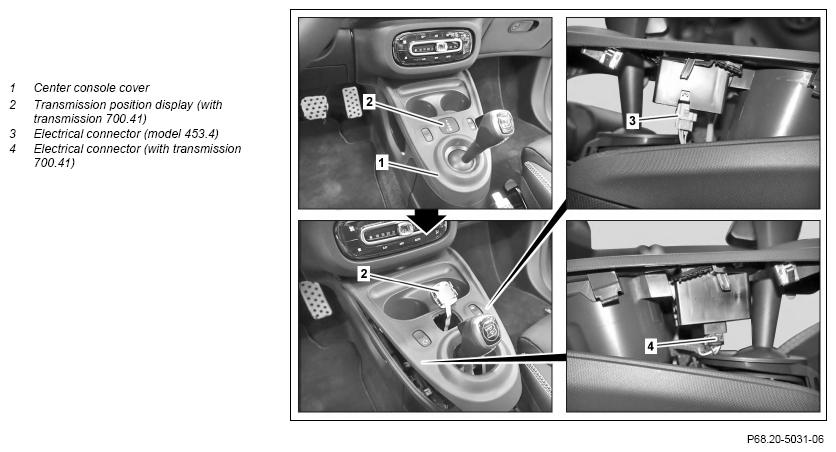

| 4 | Unclip center console cover (1) | Figure | |
| 5 | Unclip transmission position display (2) from bottom as shown and disconnect electrical connector | Model 453 with transmission 700.41 | |
| 6 | Disconnect electrical connector (3) | Model 453.4 | |
| 7 | Disconnect electrical connection (4) | Model 453 with transmission 700.41 | |

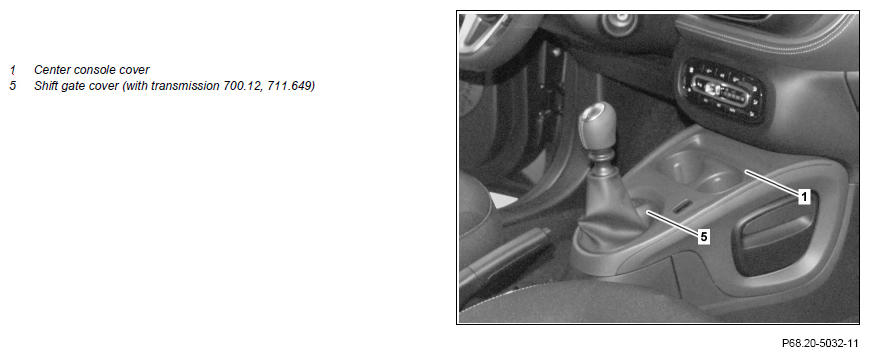

| 8 | Unclip shift gate cover (5) from center console cover (1) | Model 453 with transmission 700.12, 711.649 |
Figure |
| 9 | Guide shift gate cover (5) through center console cover (1) | Model 453 with transmission 700.12, 711.649 Carefully guide shift gate cove (5) along catch hooks on center console cover (1). Otherwise the center console cover (1) and shift gate cover (5) can be damaged. |
|
| 10 | Remove cover on center console (1) | ||
| 11 | Install in the reverse order |
