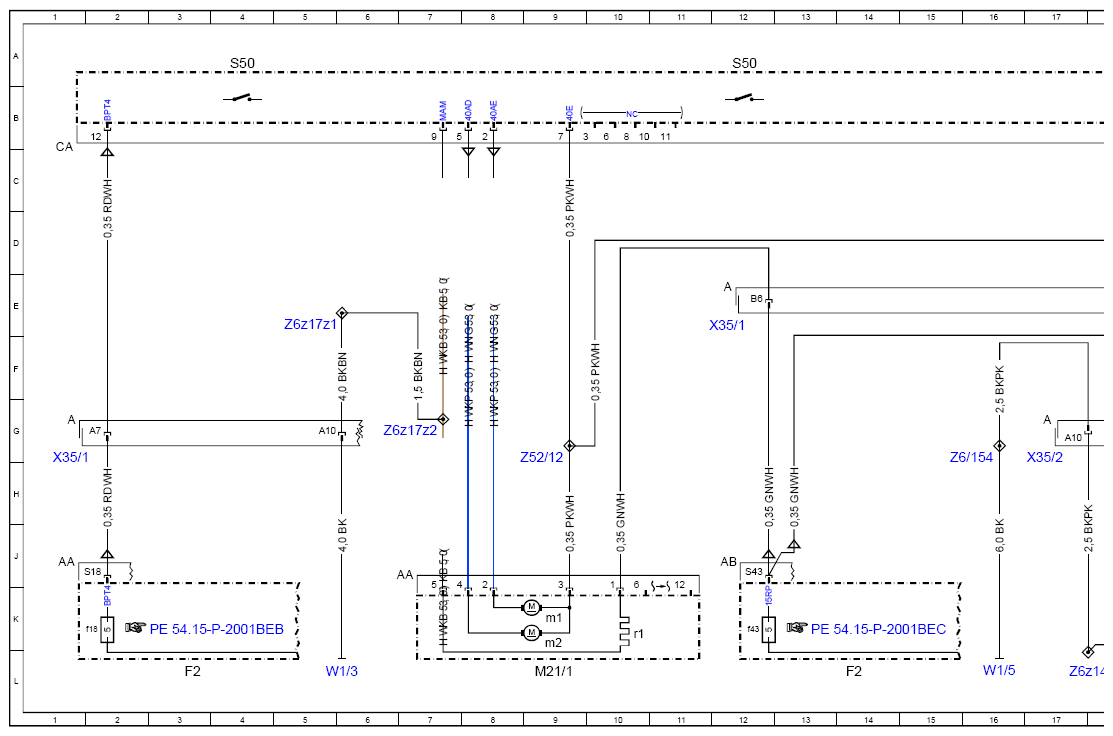

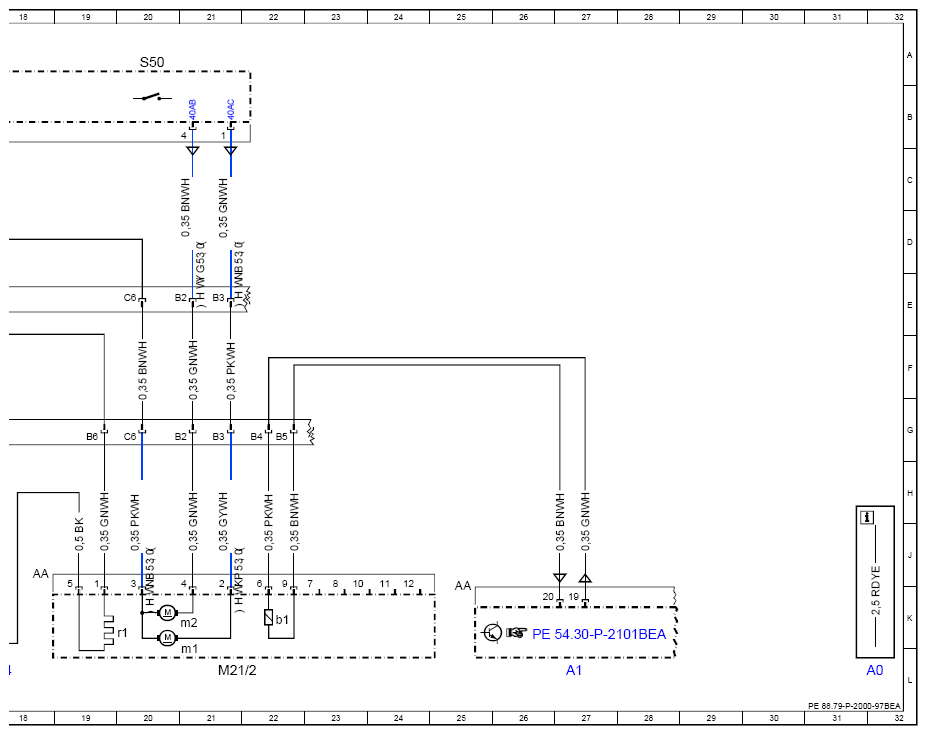

Wiring Diagram Of Outside Mirrors - PE88.79-P-2000-97BEA
MODEL 453.091/391/491 up to model year 2020 with CODE V21 (Electrically adjustable and heated outside mirrors (FFO))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A1 | Instrument cluster | 27L |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2 | Vehicle interior fuse and relay module | 14L |
| F2f18 | Fuse 18 | 2K |
| F2f43 | Fuse 43 | 12K |
| M21/1 | Left electrically adjustable and heated outside mirror | 9L |
| M21/1m1 | Horizontal inclination adjustment actuator motor, left | 9K |
| M21/1m2 | Vertical inclination adjustment actuator motor, left | 9K |
| M21/1r1 | Left mirror heater | 10K |
| M21/2 | Right electrically adjustable and heated outside mirror | 21L |
| M21/2b1 | Outside temperature sensor | 22K |
| M21/2m1 | Horizontal inclination adjustment actuator motor, right | 21L |
| M21/2m2 | Vertical inclination adjustment actuator motor, right | 21K |
| M21/2r1 | Right mirror heater | 20K |
| S50 | Outside mirror adjustment switch | 4A |
| S50 | Outside mirror adjustment switch | 12A |
| S50 | Outside mirror adjustment switch | 20A |
| W1/3 | Left cockpit ground point | 5L |
| W1/5 | Right cockpit ground point | 16L |
| X35/1 | Left front door electrical connector | 1H |
| X35/1 | Left front door electrical connector | 12E |
| X35/2 | Right front door electrical connector | 17H |
| Z52/12 | Outside mirror electric motors power supply connector sleeve | 9G |
| Z6/154 | Ground connection connector sleeve | 16G |
| Z6z14 | Ground connection connector sleeve | 17L |
| Z6z17z1 | Ground connection connector sleeve | 5E |
| Z6z17z2 | Ground connection connector sleeve | 7G |
