Install And Weld In Bottom Rear Center Section - Ar64.20-P-1000-08SR

MODEL 453

1. Install bottom rear center section (1), fit and fix in place.
2. Bottom rear center section (1) (areas G and H).

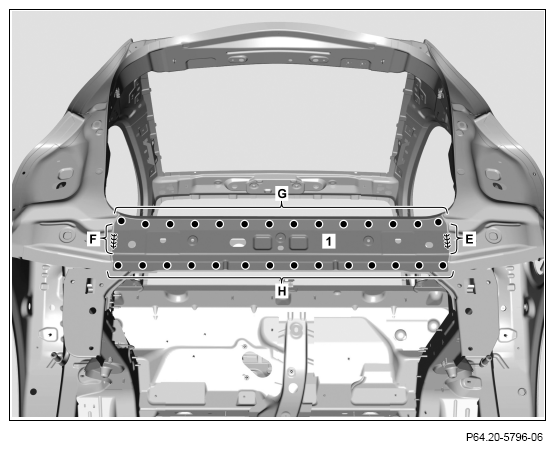

   Fig 1: locating Areas E, F, G & H

   Courtesy of MERCEDES-BENZ USA
3. Bottom rear center section (1) (areas E and F).

   Shown on MODEL 453.3
