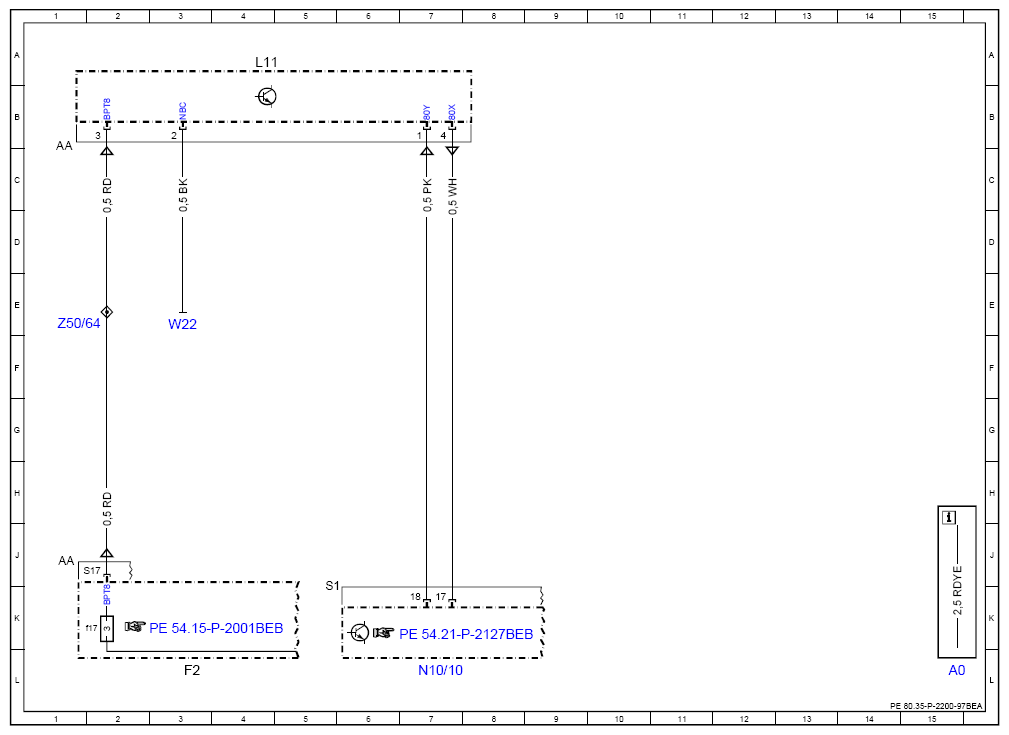

Wiring Diagram Of Remote Central Locking With Immobilizer And Transponder - PE80.35-P-2200-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: |
Designation: |
Position: |
| A0 |
Use of wiring diagrams |
15L |
| F2 |
Vehicle interior fuse and relay module |
3L |
| F2f17 |
Fuse 17 |
2K |
| L11 |
Transponder coil |
4A |
| N10/10 |
Center SAM control unit |
7L |
| W22 |
Ground point |
3E |
| Z50/64 |
Circuit 30 (fused) connector sleeve |
1E |
 Courtesy of MERCEDES-BENZ USA
|
