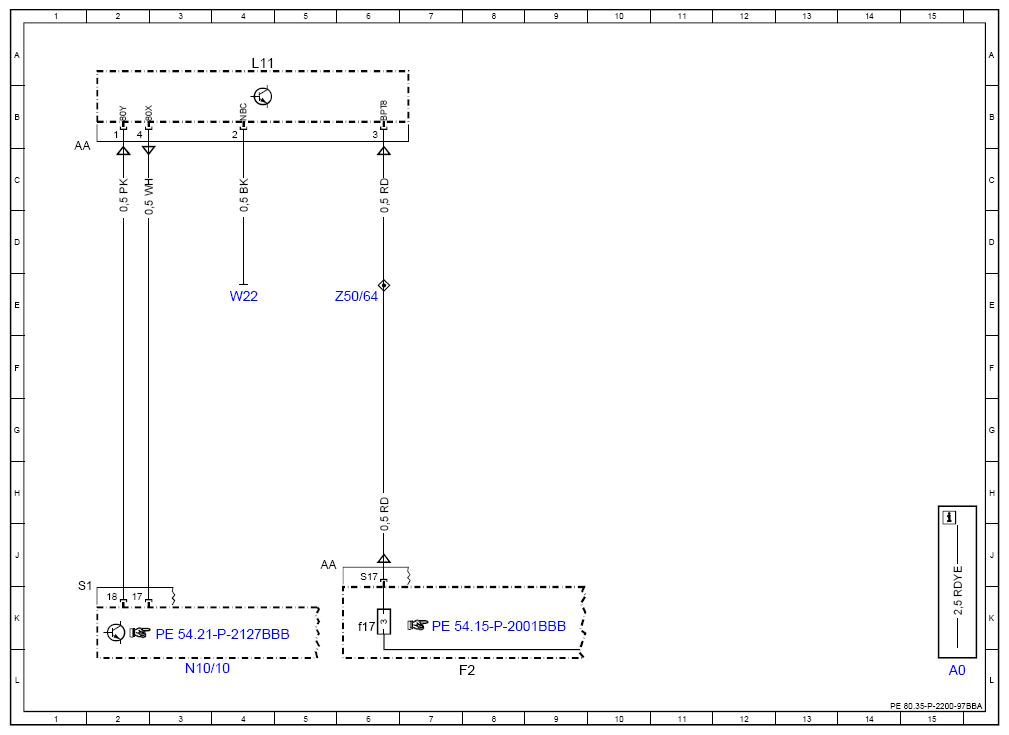

Wiring Diagram Of Remote Central Locking With Immobilizer And Transponder - PE80.35-P-2200-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| F2 | Vehicle interior fuse and relay module | 8L |
| F2f17 | Fuse 17 | 6K |
| L11 | Transponder coil | 4A |
| N10/10 | Center SAM control unit | 3L |
| W22 | Ground point | 4E |
| Z50/64 | Circuit 30 (fused) connector sleeve | 6E |
