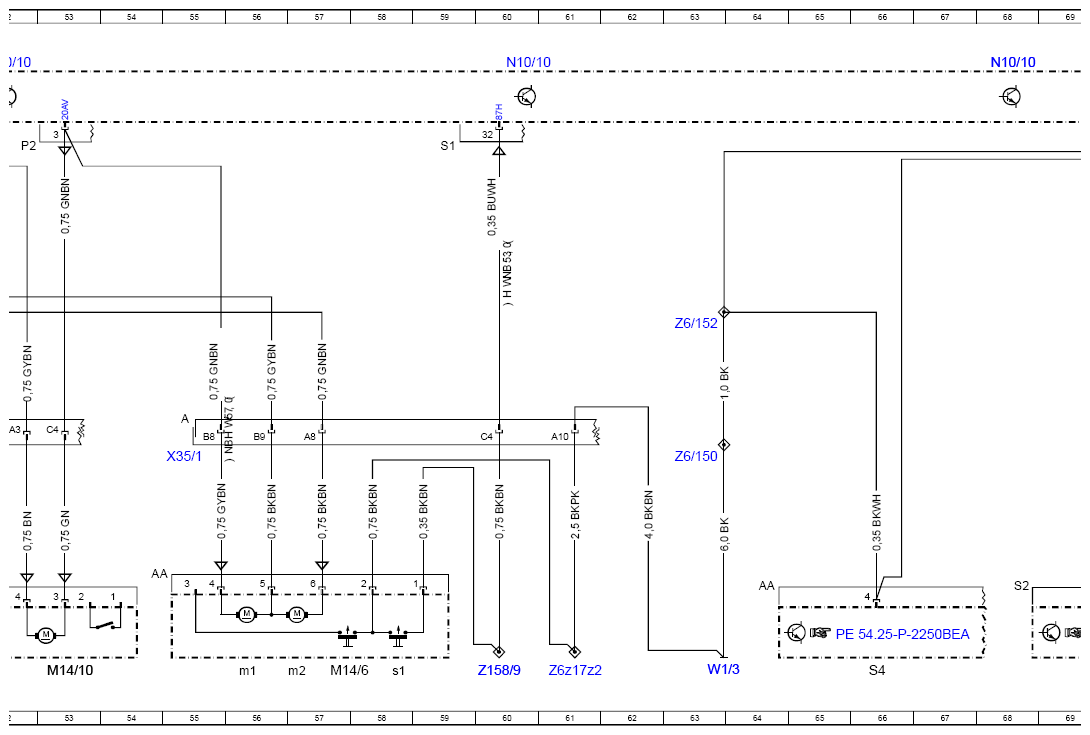

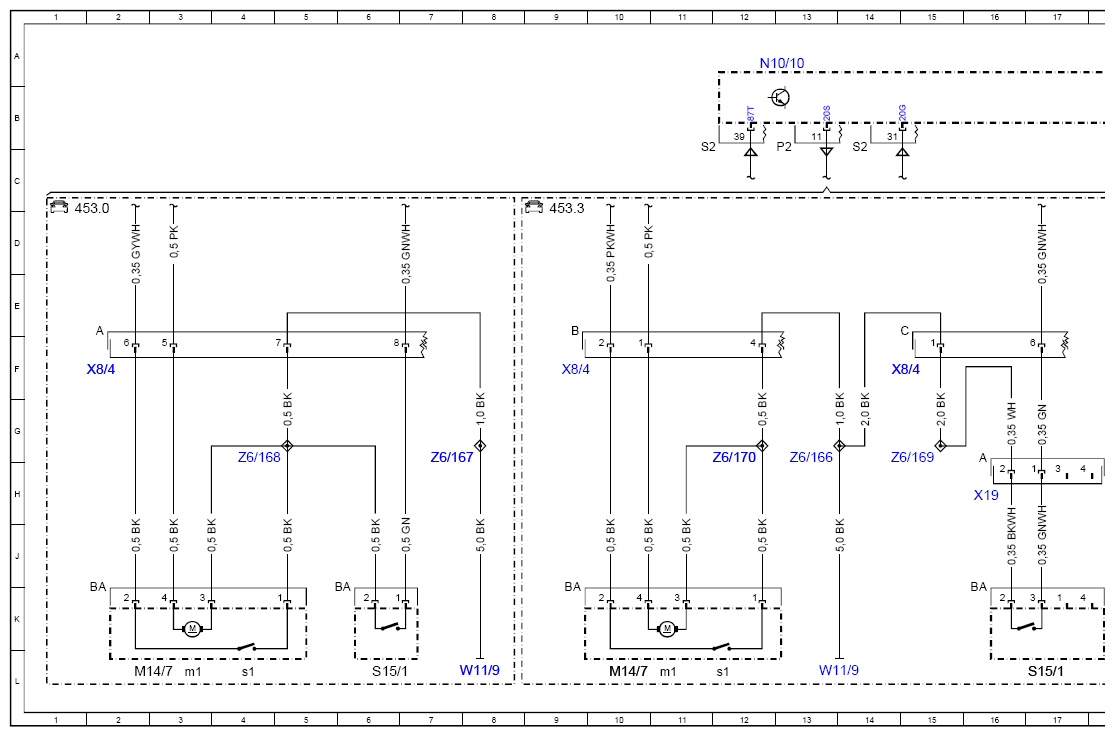

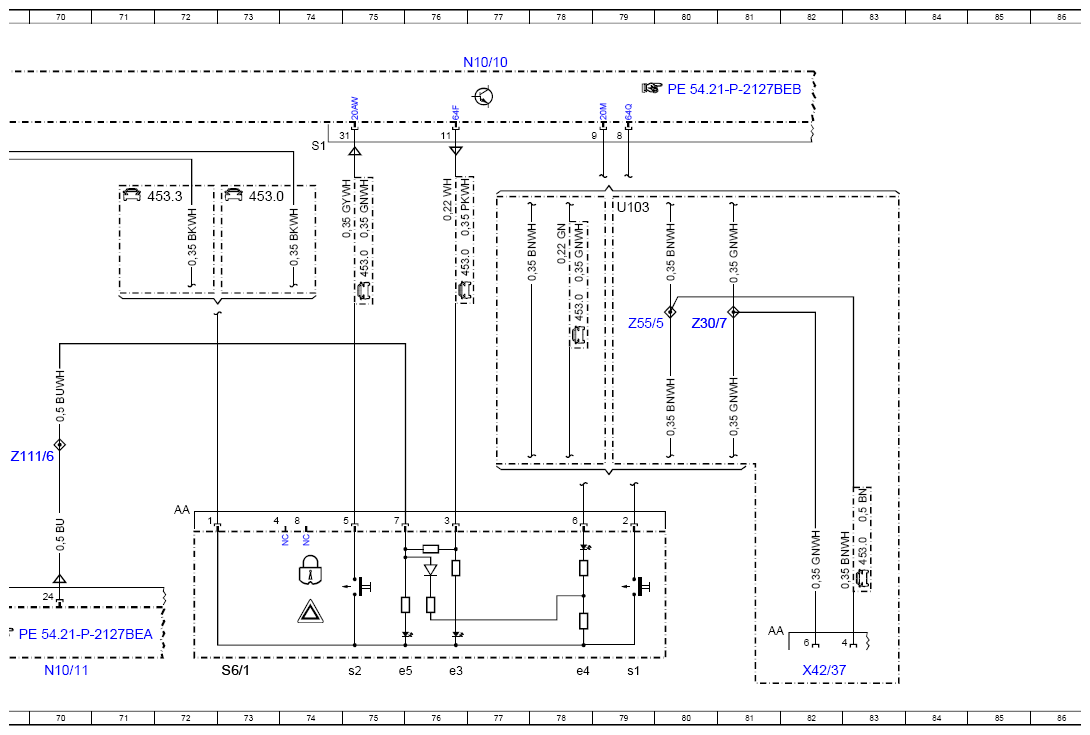

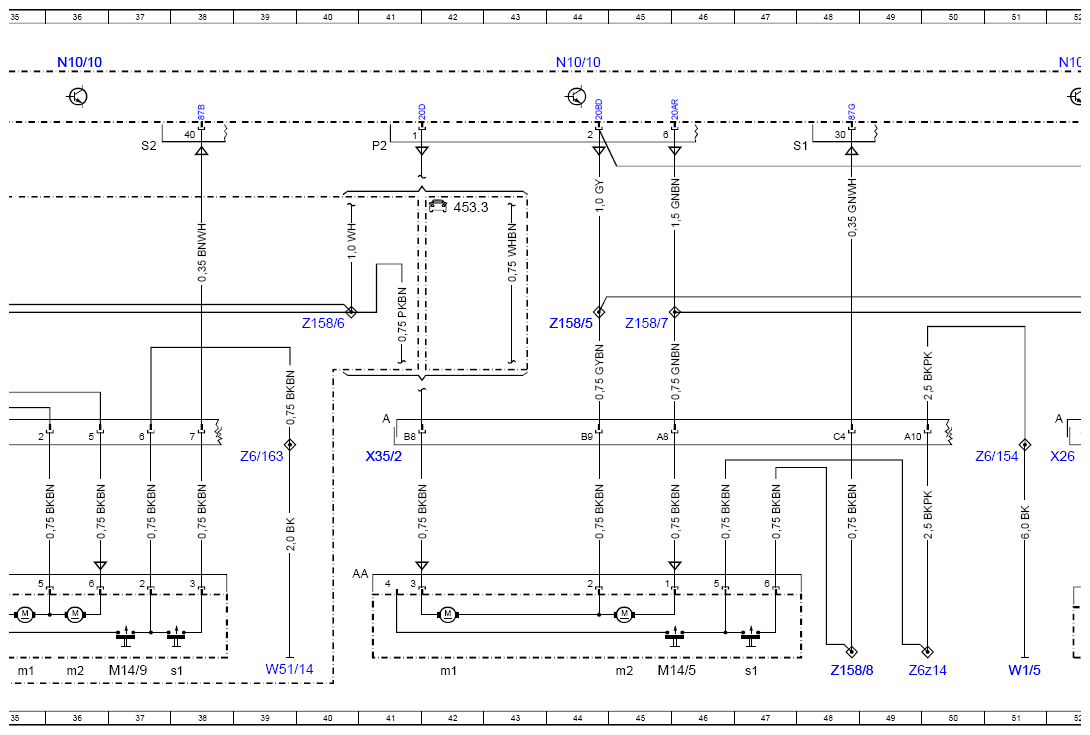

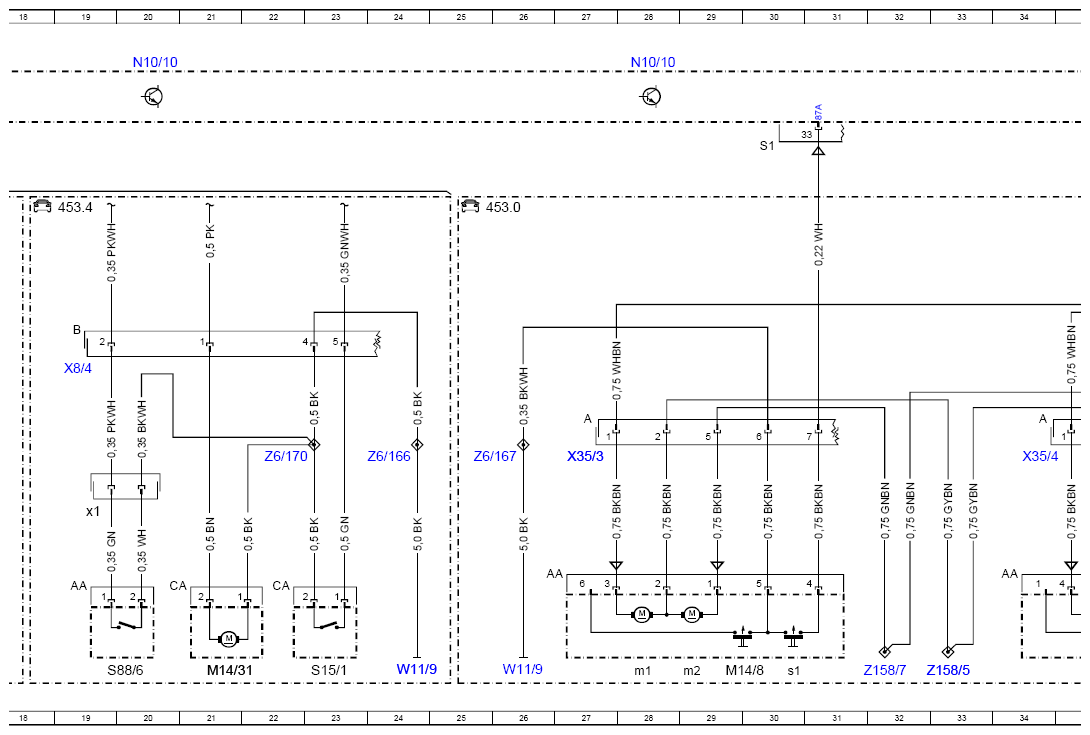

Wiring Diagram Of Central Locking (CL) - PE80.20-P-2000-97BEB
MODEL 453.091/391/491 up to model year 2020 UK version
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| M14/10 | Tank cap central locking actuator | 53L |
| M14/31 | Trunk lid/liftgate locking element | 21L |
| M14/5 | Front passenger door central locking system actuator | 45L |
| M14/5m1 | Front passenger door central locking system actuator motor | 42L |
| M14/5m2 | Front passenger door additional door lock actuator motor | 45L |
| M14/5s1 | Front passenger door central locking system microswitch | 47L |
| M14/6 | Driver door central locking system actuator | 57L |
| M14/6m1 | Driver door central locking system actuator motor | 56L |
| M14/6m2 | Driver door additional door lock actuator motor | 57L |
| M14/6s1 | Driver door central locking system microswitch | 58L |
| M14/7 | Rear-end door central locking motor | 2L |
| M14/7 | Rear-end door central locking motor | 10L |
| M14/7m1 | Liftgate central locking actuator motor | 3L |
| M14/7m1 | Liftgate central locking actuator motor | 11L |
| M14/7s1 | Liftgate central locking system microswitch | 4L |
| M14/7s1 | Liftgate central locking system microswitch | 12L |
| M14/8 | Left rear central locking actuator | 29L |
| M14/8m1 | Left rear central locking actuator motor | 28L |
| M14/8m2 | Left rear additional door lock actuator motor | 29L |
| M14/8s1 | Left rear central locking microswitch | 30L |
| M14/9 | Right rear central locking actuator | 37L |
| M14/9m1 | Right rear central locking actuator motor | 35L |
| M14/9m2 | Right rear additional door lock actuator motor | 36L |
| M14/9s1 | Right rear central locking microswitch | 38L |
| N10/10 | Center SAM control unit | 12A |
| N10/10 | Center SAM control unit | 20A |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 36A |
| N10/10 | Center SAM control unit | 44A |
| N10/10 | Center SAM control unit | 52A |
| N10/10 | Center SAM control unit | 60A |
| N10/10 | Center SAM control unit | 68A |
| N10/10 | Center SAM control unit | 77A |
| N10/11 | Driver SAM control unit | 70L |
| S15/1 | Trunk lid/liftgate release switch | 17L |
| S15/1 | Trunk lid/liftgate release switch | 6L |
| S15/1 | Trunk lid/liftgate release switch | 23L |
| S4 | Combination switch | 66L |
| S6/1 | Instrument panel switch group | 73L |
| S6/1e3 | Central locking indicator lamp | 76L |
| S6/1e4 | Hazard warning system indicator lamp | 78L |
| S6/1e5 | Instrument panel switch group symbol illumination | 75L |
| S6/1s1 | Hazard warning system switch | 79L |
| S6/1s2 | Inside door handle central locking switch | 75L |
| S88/6 | Trunk lid contact switch, right | 19L |
| S88/6x1 | Trunk lid contact switch electrical connector, right | 19H |
| U103 | Valid without code V19 | 79D |
| W1/3 | Left cockpit ground point | 63L |
| W1/5 | Right cockpit ground point | 51L |
| W11/9 | Left rear ground point | 8L |
| W11/9 | Left rear ground point | 13L |
| W11/9 | Left rear ground point | 24L |
| W11/9 | Left rear ground point | 26L |
| W51/14 | Right rear frame ground connection | 39L |
| X19 | Rear window heater electrical connector | 16H |
| X26 | Vehicle interior/engine wiring harness electrical connector | 52H |
| X35/1 | Left front door electrical connector | 55H |
| X35/2 | Right front door electrical connector | 41H |
| X35/3 | Left rear door electrical connector | 27H |
| X35/4 | Right rear door electrical connector | 34H |
| X42/37 | ATA alarm siren electrical connector | 82L |
| X8/4 | Trunk lid electrical connector | 2F |
| X8/4 | Trunk lid electrical connector | 9F |
| X8/4 | Trunk lid electrical connector | 15F |
| X8/4 | Trunk lid electrical connector | 19F |
| Z111/6 | Circuit 58 connector sleeve | 70G |
| Z158/5 | Central locking electric motors power supply connector sleeve | 33L |
| Z158/5 | Central locking electric motors power supply connector sleeve | 44E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 40E |
| Z158/7 | Central locking Super locking signal connector sleeve | 45E |
| Z158/7 | Central locking Super locking signal connector sleeve | 32L |
| Z158/8 | Central locking front passenger door signal (-) connector sleeve | 48L |
| Z158/9 | Central locking driver door signal (-) connector sleeve | 60L |
| Z30/7 | Hazard warning system connector sleeve | 80E |
| Z55/5 | Central locking warning lamp connector sleeve | 79E |
| Z6/150 | Ground connection connector sleeve | 63G |
| Z6/152 | Ground connection connector sleeve | 63E |
| Z6/154 | Ground connection connector sleeve | 51G |
| Z6/163 | Ground connection connector sleeve | 39G |
| Z6/166 | Circuit 31 connector sleeve | 13G |
| Z6/166 | Circuit 31 connector sleeve | 24G |
| Z6/167 | Circuit 31 connector sleeve | 7G |
| Z6/167 | Circuit 31 connector sleeve | 26G |
| Z6/168 | Circuit 31 connector sleeve | 4G |
| Z6/169 | Circuit 31 connector sleeve | 15G |
| Z6/170 | Ground connection connector sleeve | 12G |
| Z6/170 | Ground connection connector sleeve | 22G |
| Z6z14 | Ground connection connector sleeve | 49L |
| Z6z17z2 | Ground connection connector sleeve | 61L |
