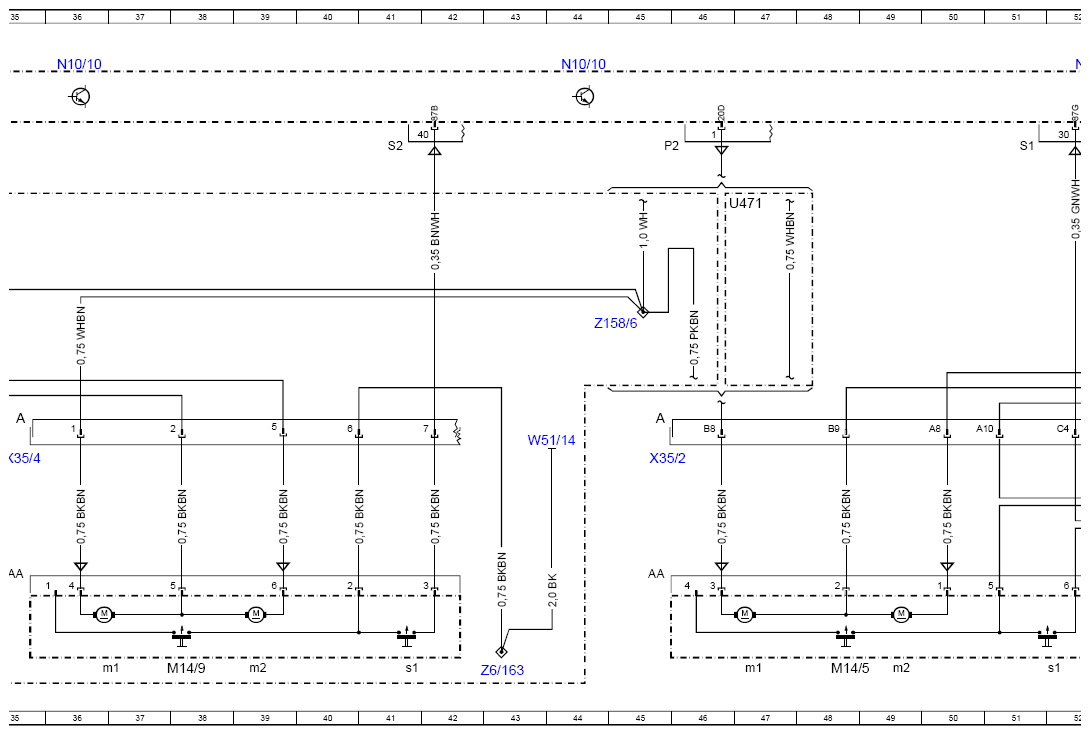

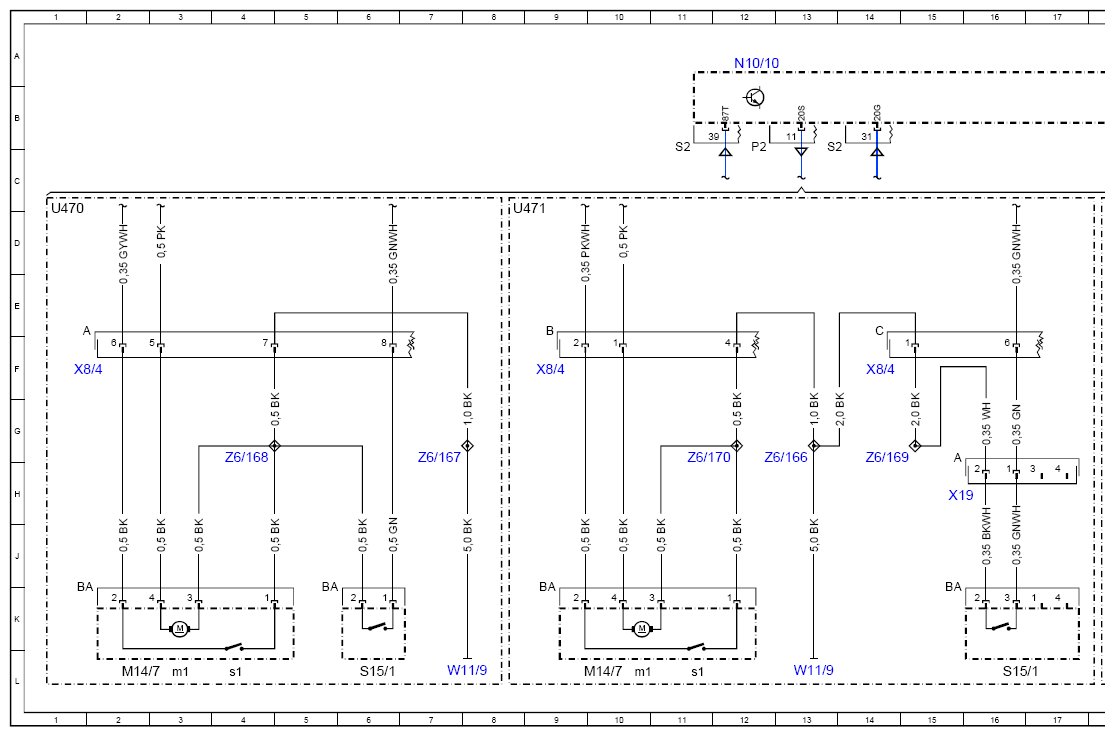

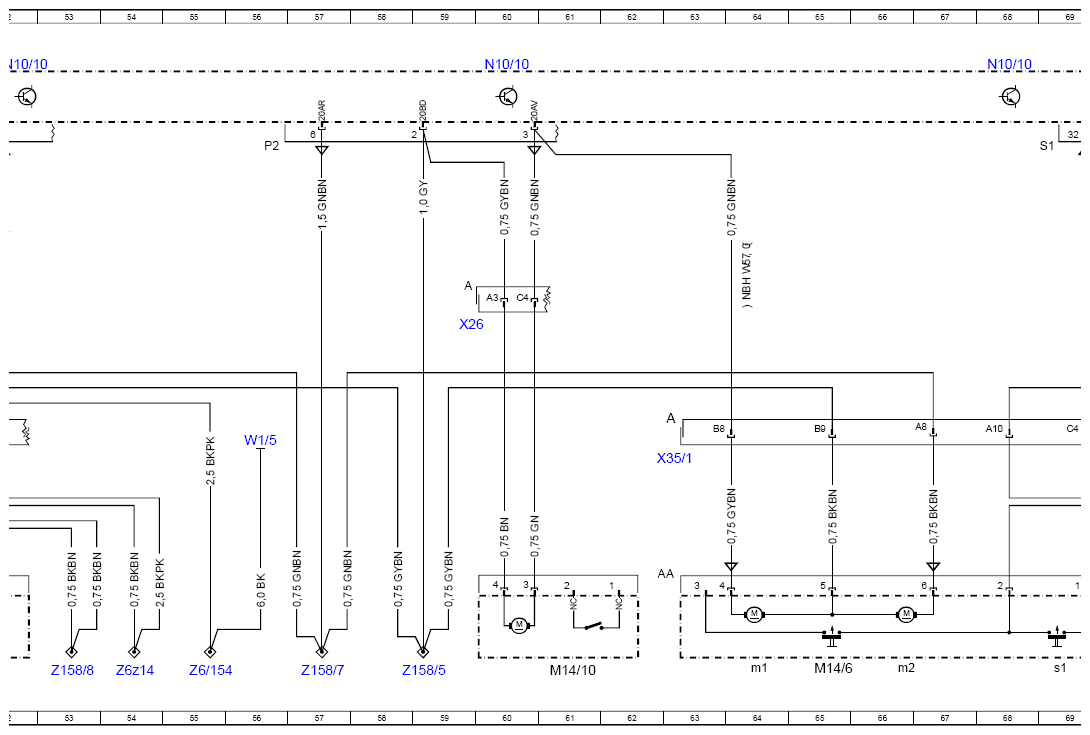

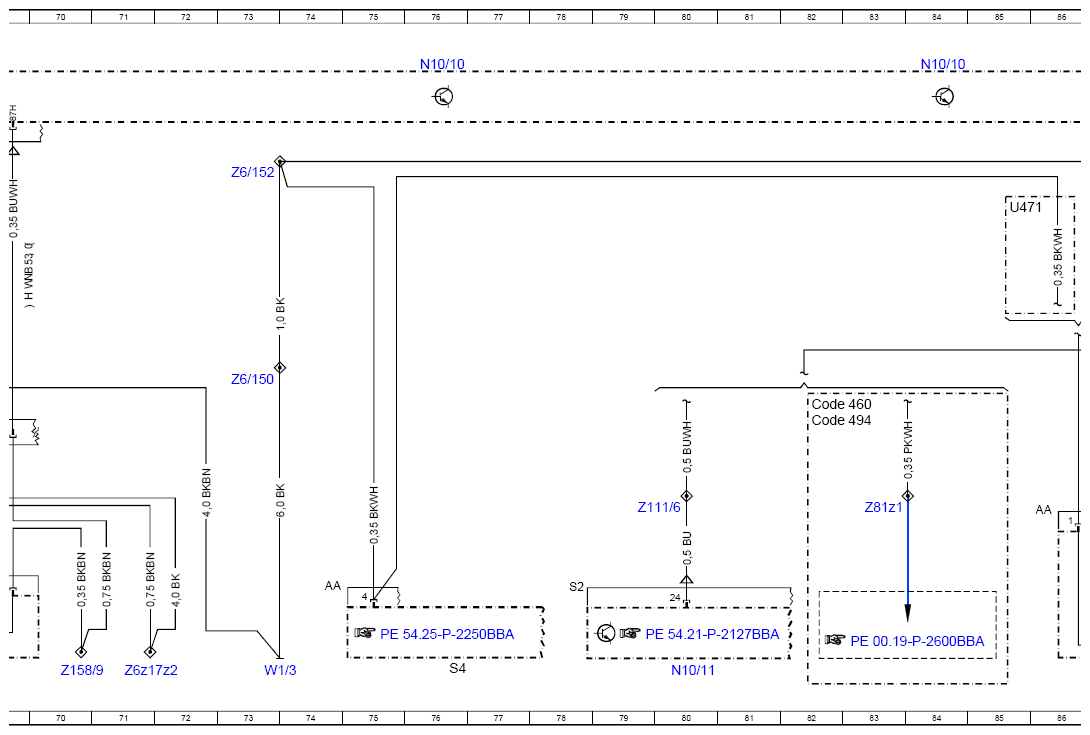

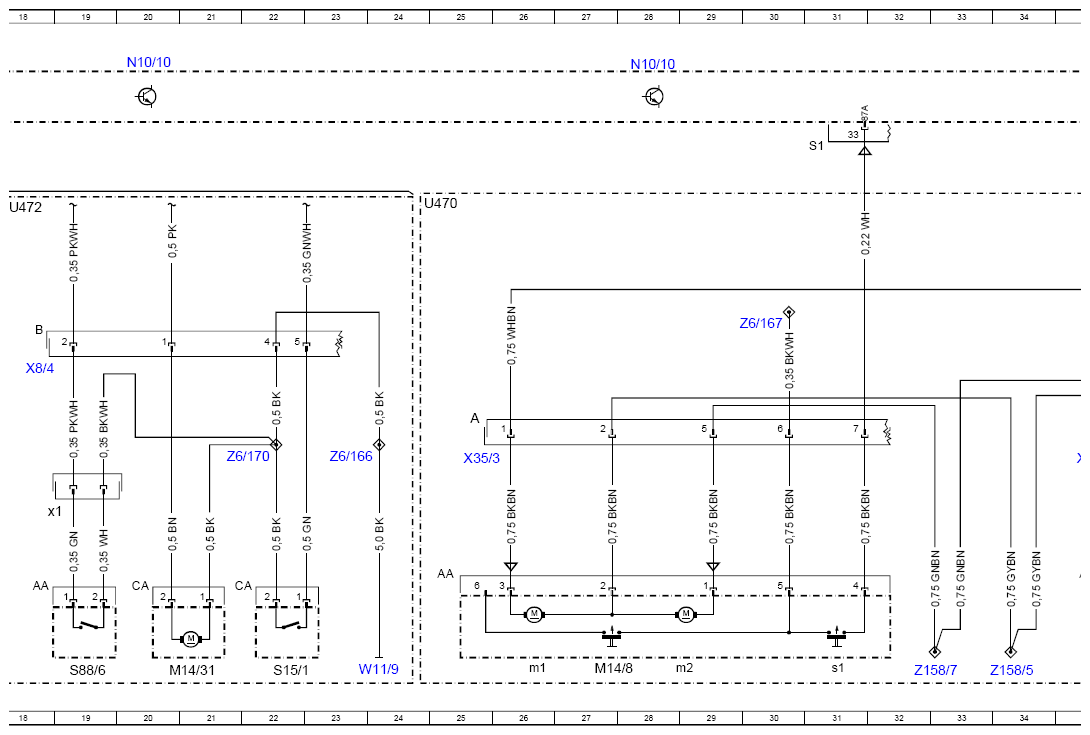

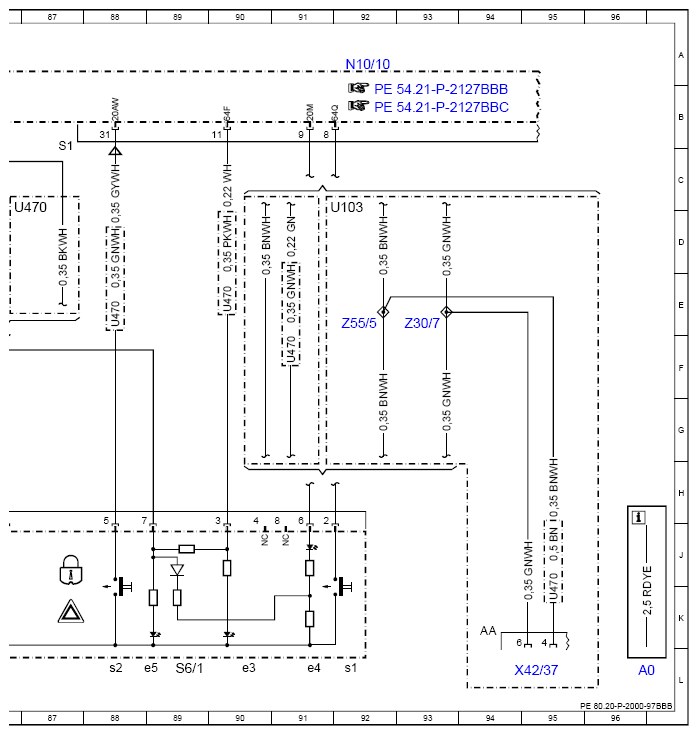

Wiring Diagram Of Central Locking (CL) - PE80.20-P-2000-97BBB
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 UK version
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| Code 460 | Canada version | 82G |
| Code 494 | USA version | 82G |
| M14/10 | Tank cap central locking actuator | 61L |
| M14/31 | Trunk lid/liftgate locking element | 21L |
| M14/5 | Front passenger door central locking system actuator | 48L |
| M14/5m1 | Front passenger door central locking system actuator motor | 47L |
| M14/5m2 | Front passenger door additional door lock actuator motor | 49L |
| M14/5s1 | Front passenger door central locking system microswitch | 52L |
| M14/6 | Driver door central locking system actuator | 65L |
| M14/6m1 | Driver door central locking system actuator motor | 64L |
| M14/6m2 | Driver door additional door lock actuator motor | 66L |
| M14/6s1 | Driver door central locking system microswitch | 69L |
| M14/7 | Rear-end door central locking motor | 2L |
| M14/7 | Rear-end door central locking motor | 10L |
| M14/7m1 | Liftgate central locking actuator motor | 3L |
| M14/7m1 | Liftgate central locking actuator motor | 10L |
| M14/7s1 | Liftgate central locking system microswitch | 4L |
| M14/7s1 | Liftgate central locking system microswitch | 11L |
| M14/8 | Left rear central locking actuator | 27L |
| M14/8m1 | Left rear central locking actuator motor | 26L |
| M14/8m2 | Left rear additional door lock actuator motor | 29L |
| M14/8s1 | Left rear central locking microswitch | 31L |
| M14/9 | Right rear central locking actuator | 38L |
| M14/9m1 | Right rear central locking actuator motor | 36L |
| M14/9m2 | Right rear additional door lock actuator motor | 39L |
| M14/9s1 | Right rear central locking microswitch | 41L |
| N10/10 | Center SAM control unit | 12A |
| N10/10 | Center SAM control unit | 20A |
| N10/10 | Center SAM control unit | 28A |
| N10/10 | Center SAM control unit | 36A |
| N10/10 | Center SAM control unit | 44A |
| N10/10 | Center SAM control unit | 52A |
| N10/10 | Center SAM control unit | 60A |
| N10/10 | Center SAM control unit | 68A |
| N10/10 | Center SAM control unit | 76A |
| N10/10 | Center SAM control unit | 84A |
| N10/10 | Center SAM control unit | 92A |
| N10/11 | Driver SAM control unit | 80L |
| S15/1 | Trunk lid/liftgate release switch | 6L |
| S15/1 | Trunk lid/liftgate release switch | 16L |
| S15/1 | Trunk lid/liftgate release switch | 22L |
| S4 | Combination switch | 76L |
| S6/1 | Instrument panel switch group | 89L |
| S6/1e3 | Central locking indicator lamp | 90L |
| S6/1e4 | Hazard warning system indicator lamp | 91L |
| S6/1e5 | Instrument panel switch group symbol illumination | 89L |
| S6/1s1 | Hazard warning system switch | 92L |
| S6/1s2 | Inside door handle central locking switch | 88L |
| S88/6 | Trunk lid contact switch, right | 19L |
| S88/6x1 | Trunk lid contact switch electrical connector, right | 18H |
| U103 | Valid without code V19 | 91D |
| U470 | Valid for model 453.0 | 1D |
| U470 | Valid for model 453.0 | 24C |
| U470 | Valid for model 453.0 | 95K |
| U470 | Valid for model 453.0 | 88E |
| U470 | Valid for model 453.0 | 91F |
| U470 | Valid for model 453.0 | 90E |
| U470 | Valid for model 453.0 | 86D |
| U471 | Valid for model 453.3 | 8D |
| U471 | Valid for model 453.3 | 46C |
| U471 | Valid for model 453.3 | 85D |
| U472 | Valid for model 453.4 | 18D |
| W1/3 | Left cockpit ground point | 73L |
| W1/5 | Right cockpit ground point | 56G |
| W11/9 | Left rear ground point | 7L |
| W11/9 | Left rear ground point | 13L |
| W11/9 | Left rear ground point | 24L |
| W51/14 | Right rear frame ground connection | 43G |
| X19 | Rear window heater electrical connector | 15H |
| X26 | Vehicle interior/engine wiring harness electrical connector | 59E |
| X35/1 | Left front door electrical connector | 63H |
| X35/2 | Right front door electrical connector | 45H |
| X35/3 | Left rear door electrical connector | 25H |
| X35/4 | Right rear door electrical connector | 35H |
| X42/37 | ATA alarm siren electrical connector | 95L |
| X8/4 | Trunk lid electrical connector | 2F |
| X8/4 | Trunk lid electrical connector | 9F |
| X8/4 | Trunk lid electrical connector | 14F |
| X8/4 | Trunk lid electrical connector | 18F |
| Z111/6 | Circuit 58 connector sleeve | 80H |
| Z158/5 | Central locking electric motors power supply connector sleeve | 34L |
| Z158/5 | Central locking electric motors power supply connector sleeve | 59L |
| Z158/6 | Central locking electric motors power supply connector sleeve | 45E |
| Z158/7 | Central locking Super locking signal connector sleeve | 32L |
| Z158/7 | Central locking Super locking signal connector sleeve | 57L |
| Z158/8 | Central locking front passenger door signal (-) connector sleeve | 53L |
| Z158/9 | Central locking driver door signal (-) connector sleeve | 70L |
| Z30/7 | Hazard warning system connector sleeve | 93E |
| Z55/5 | Central locking warning lamp connector sleeve | 92E |
| Z6/150 | Ground connection connector sleeve | 73F |
| Z6/152 | Ground connection connector sleeve | 73C |
| Z6/154 | Ground connection connector sleeve | 55L |
| Z6/163 | Ground connection connector sleeve | 43L |
| Z6/166 | Circuit 31 connector sleeve | 13G |
| Z6/166 | Circuit 31 connector sleeve | 23G |
| Z6/167 | Circuit 31 connector sleeve | 7G |
| Z6/167 | Circuit 31 connector sleeve | 30E |
| Z6/168 | Circuit 31 connector sleeve | 4G |
| Z6/169 | Circuit 31 connector sleeve | 14G |
| Z6/170 | Ground connection connector sleeve | 11G |
| Z6/170 | Ground connection connector sleeve | 22G |
| Z6z14 | Ground connection connector sleeve | 54L |
| Z6z17z2 | Ground connection connector sleeve | 71L |
| Z81z1 | Circuit 58d connector sleeve | 83H |
