Remove/Install Windshield Washer System Pump - AR82.35-P-6002SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Remove/install

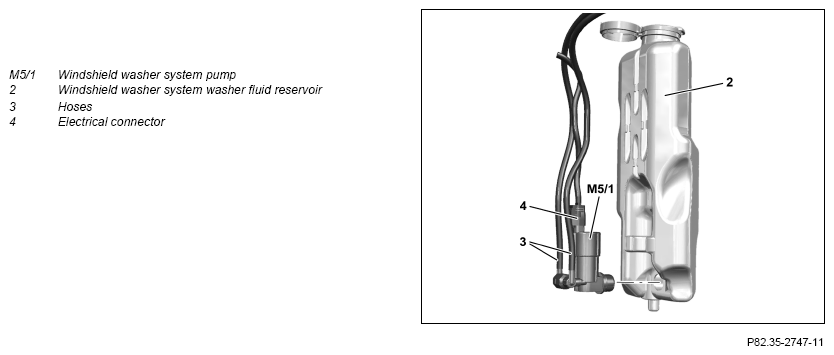

1	Remove washer fluid reservoir from windshield washer system (2) and disconnect electrical connector (4)		AR82.35-P-6000SR
2	Drain washer fluid reservoir for windshield washer system (2)
3	Unclip pump for windshield washer system (M5/1) from washer fluid reservoir (2) and pull out seal	Do not mix up hoses (3) on pump for windshield washer system (M5/1). : Ensure that seal is correctly seated between pump for windshield washer system (M5/1) and washer fluid reservoir for windshield washer system (2), check seal, replace if necessary. Mounting wedge	Fig 1
4	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
