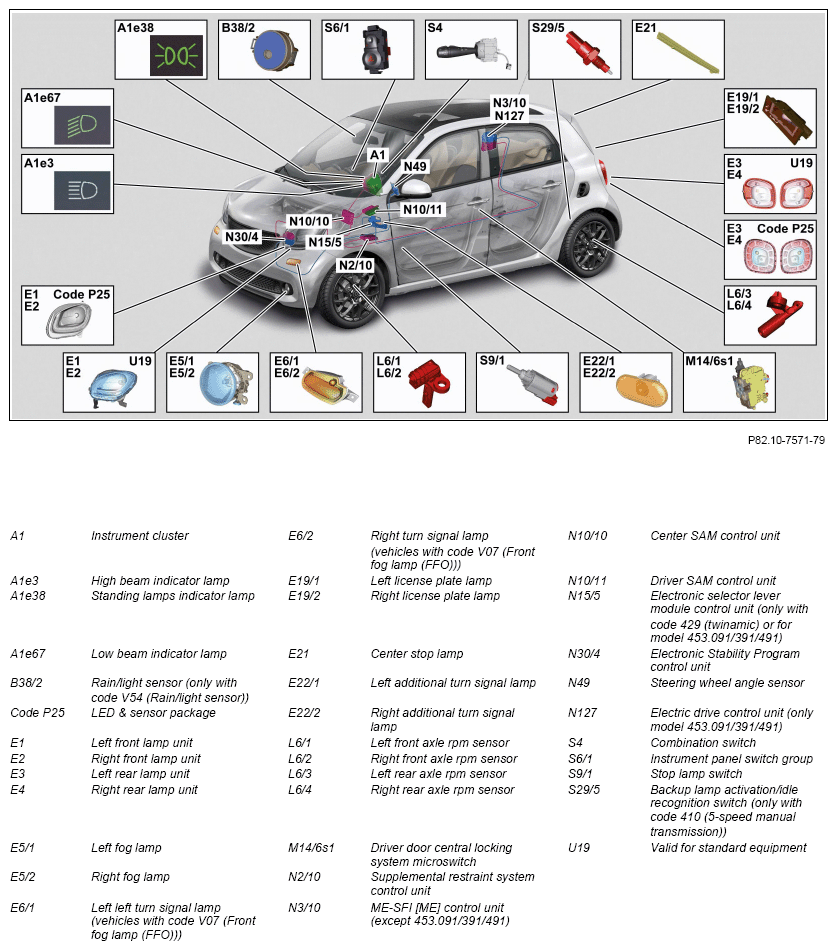

Overview Of Exterior Lights System Components - GF82.10-P-9998KJ
MODEL 453.0/3/4
Show here is Model 453.0

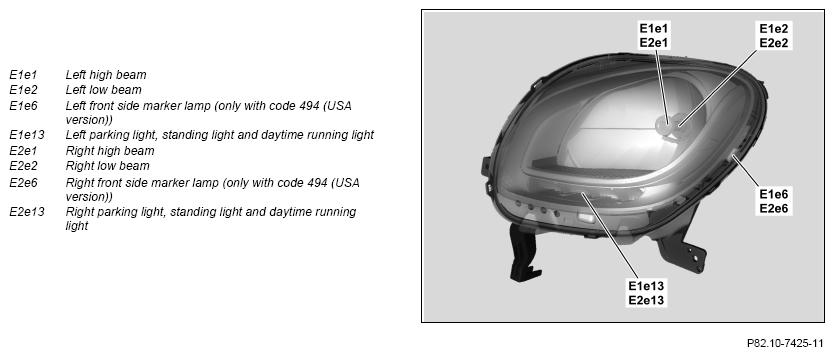

Front lamp unit, standard equipment
Vehicles with code 460 (Canada version) are always assigned code 494 (USA version) at the same time and therefore they have the same lighting equipment.

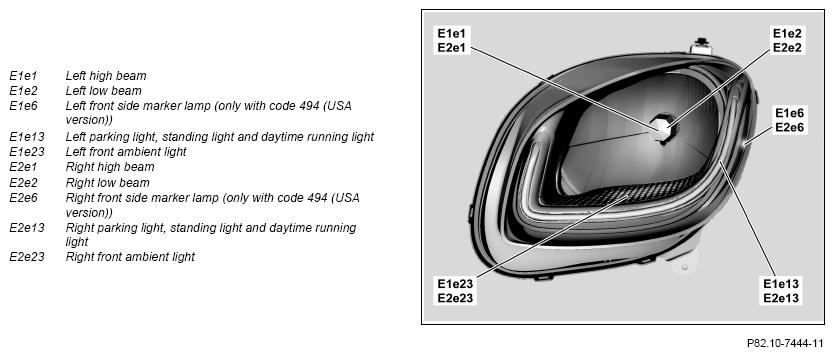

Front lamp unit (with code P25 (LED & sensor package))

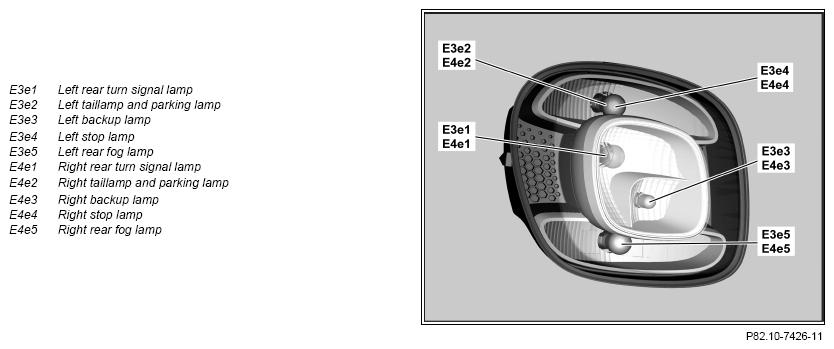

Rear lamp unit, standard equipment (except code 494 (USA version))

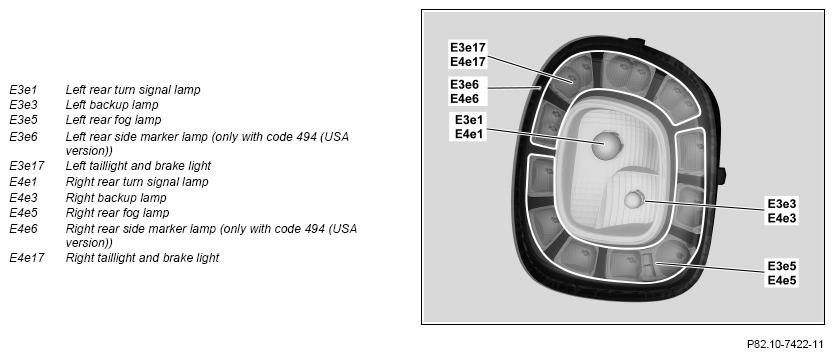

Rear lamp unit (with code (P25) LED & sensor package or with code 494 (USA version))
Not with code 494 (USA version)
Not with code 494 (USA version)
| Component description for instrument cluster | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJ | |
| Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJE | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Component description for electronic selector lever module control unit | Model 453.0/3/4 with transmission 700.4 N15/5 Model 453.091/391/491 |
GF27.60-P-5163KJ GF27.60-P-5163KJE |
|
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Steering angle sensor, component description | N49 | GF42.45-P-5107KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Table of contents for function description of exterior lights | GF82.10-P-0999KJ |
