Remove/Install Instrument Panel Switch Group - AR54.25-P-1003SR
MODEL 453
| Remove/install | |||
| 1.1 | Remove stowage compartment from instrument panel | Model 453 with code C08 (Basic fittings f. radio) |
|
| 1.2 | Remove radio | Model 453 with code 537 (smart Audio system) |
AR82.60-P-7502SR |
| 1.3 | Remove communication unit | Model 453 with code 535 (smart Media system) |
AR82.85-P-2000SR |
| 2 | Remove trim piece from center of instrument panel | ||

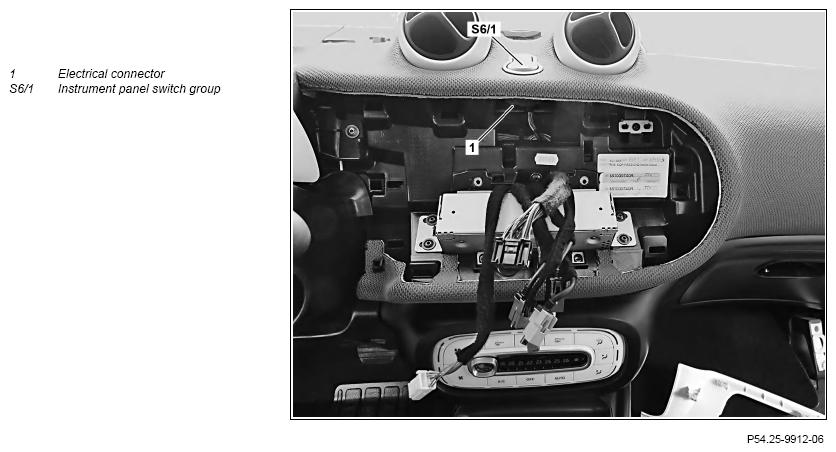

| 3 | Disconnect electrical connection (1) | ||
| 4 | Unclip instrument panel switch group (S6/1) | Fig 1 | |
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check instrument panel switch group (S6/1) for proper operation |
