Remove/Install Wiper System - AR82.30-P-6400SR
MODEL 453
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Remove/install | |||

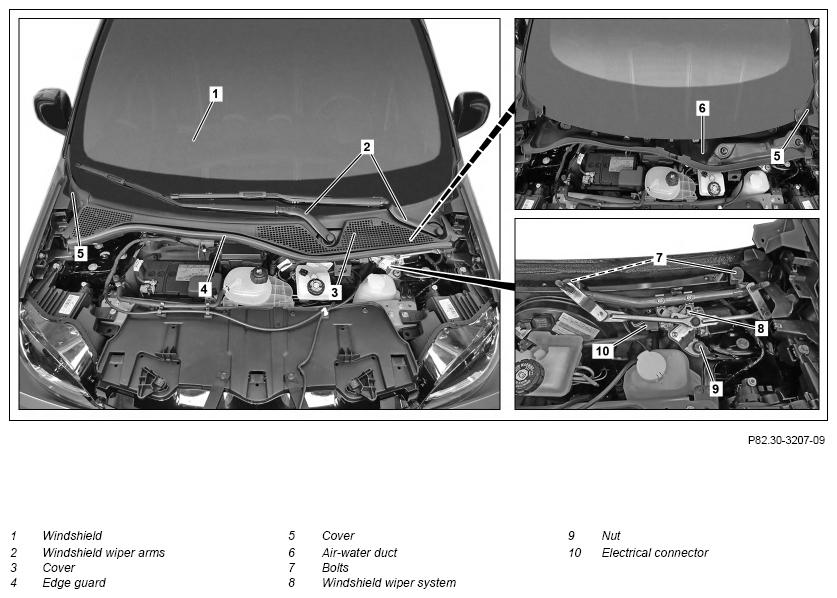

| 1 | Open maintenance flap | ||
| 2 | Remove wiper arms (2) | AR82.30-P-6100SR | |
| 3 | Detach cover (5) under windshield at left and right | ||
| 4 | Remove cover (3) under windshield | ||
| 5 | Remove edge guard (4) from cover (3) | ||
| 6 | Remove air/water duct (6) | ||
| 7 | Disconnect electrical connector (10) | ||
| 8 | Remove screw/bolts (7) | Model 453.3 Screw/bolt/nut, wiper system to body |
*BA82.30-P-1002-01SR |
| 9 | Unscrew nut (9) and remove windshield wiper system (8) | Model 453.3 Screw/bolt/nut, wiper system to body |
*BA82.30-P-1002-01SR |
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Perform function check of windshield wiper system (8) |
WINDSHIELD WIPER
| Number | Designation | Model 453.0 | Model 453.3 | |
|---|---|---|---|---|
| BA82.30-P-1002-01SR | Screw/bolt/nut, wiper system to body | Nm | 21 | 21 |
