Remove/Install Feed Socket Charge Indicator Lamp - AR54.10-P-0023SRE
MODEL 453.091/391/491
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
| 1 | Detach charging cable from high-voltage onboard electrical system on both sides. | If the charging cable is connected. | |

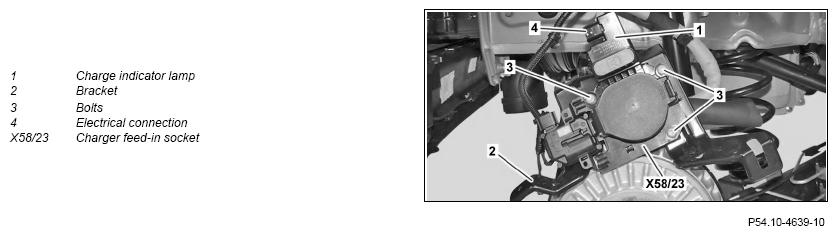

| 2 | Release charger feed socket (X58/23) with holder (2) far enough to gain access to the bolts (3). | AR54.10-P-5109SRE | |
| 3 | Disconnect electrical connector from electrical connection (4). | ||
| 4 | Unscrew bolts (3). | ||
| 5 | Remove charge indicator lamp (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Connect charging cable of high-voltage onboard electrical system on both sides and check display of charge indicator lamp (1) during the charging procedure. |
