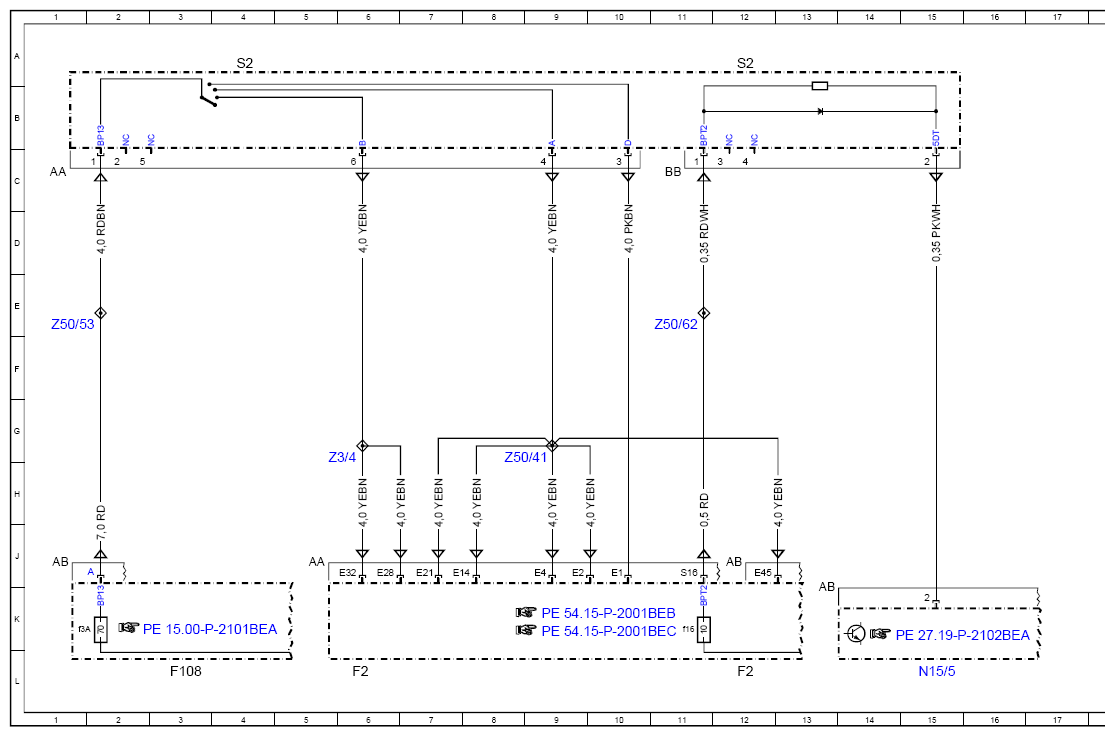

Wiring Diagram For Ignition Lock - PE54.21-P-2135-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| F108 | Battery clamp fuse | 3L |
| F108f3A | Electrical fuse 3A | 1K |
| F2 | Vehicle interior fuse and relay module | 6L |
| F2 | Vehicle interior fuse and relay module | 12L |
| F2f16 | Fuse 16 | 11K |
| N15/5 | Electronic selector lever module control unit | 15L |
| S2 | Ignition lock | 4A |
| S2 | Ignition lock | 12A |
| Z3/4 | Tml. 15 connector sleeve | 6G |
| Z50/41 | Voltage supply connector sleeve | 9G |
| Z50/53 | Circuit 30 (fused) connector sleeve | 1E |
| Z50/62 | Circuit 30 (fused) connector sleeve | 11E |
