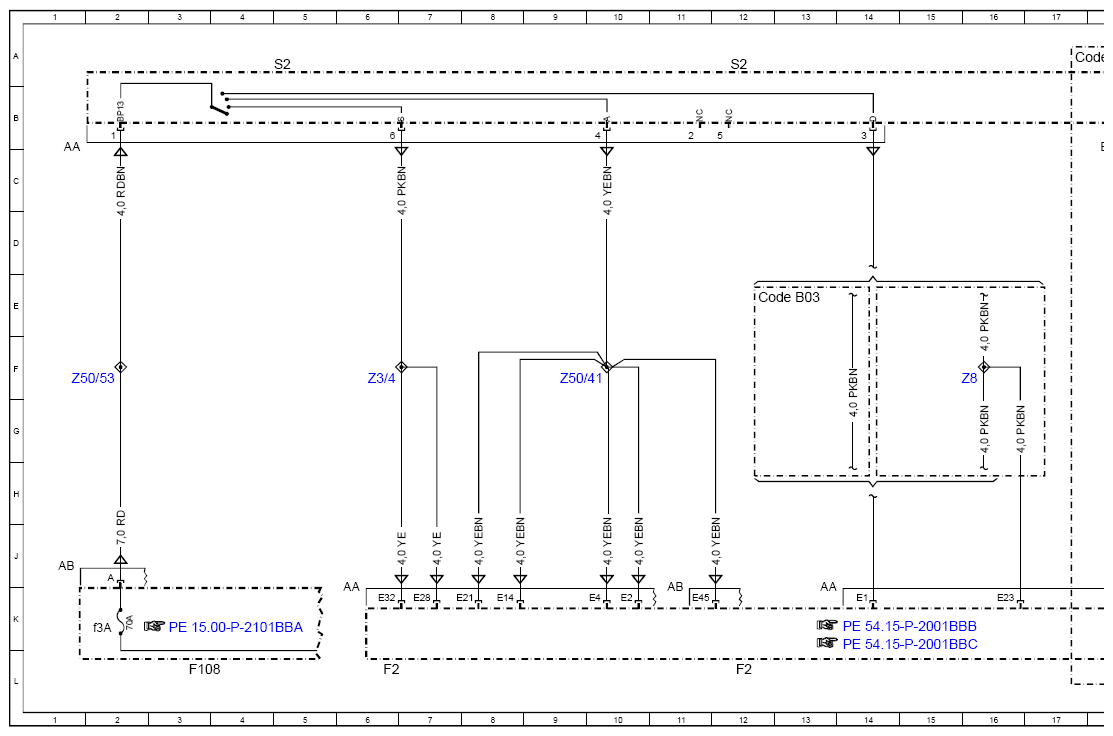

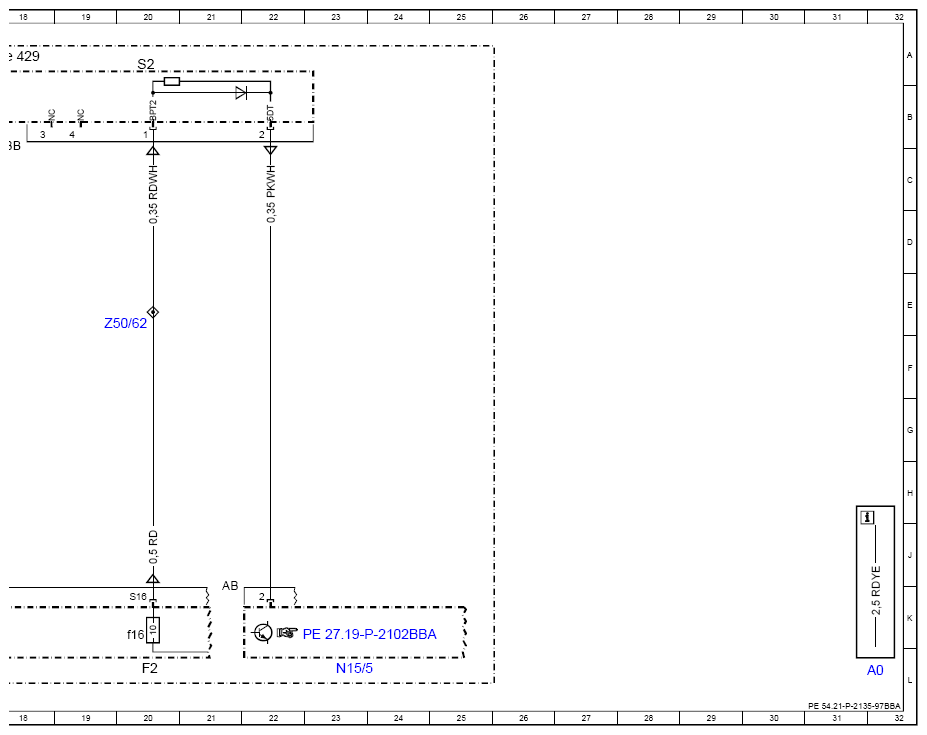

Wiring Diagram For Ignition Lock - PE54.21-P-2135-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code 429 | twinamic | 17A |
| Code B03 | Direct starting | 12E |
| F108 | Battery clamp fuse | 3L |
| F108f3A | Electrical fuse 3A | 2K |
| F2 | Vehicle interior fuse and relay module | 6L |
| F2 | Vehicle interior fuse and relay module | 12L |
| F2 | Vehicle interior fuse and relay module | 20L |
| F2f16 | Fuse 16 | 20K |
| N15/5 | Electronic selector lever module control unit | 23L |
| S2 | Ignition lock | 5A |
| S2 | Ignition lock | 12A |
| S2 | Ignition lock | 20A |
| Z3/4 | Tml. 15 connector sleeve | 6F |
| Z50/41 | Voltage supply connector sleeve | 9F |
| Z50/53 | Circuit 30 (fused) connector sleeve | 2F |
| Z50/62 | Circuit 30 (fused) connector sleeve | 20E |
| Z8 | Circuit 50 connector sleeve | 16F |
