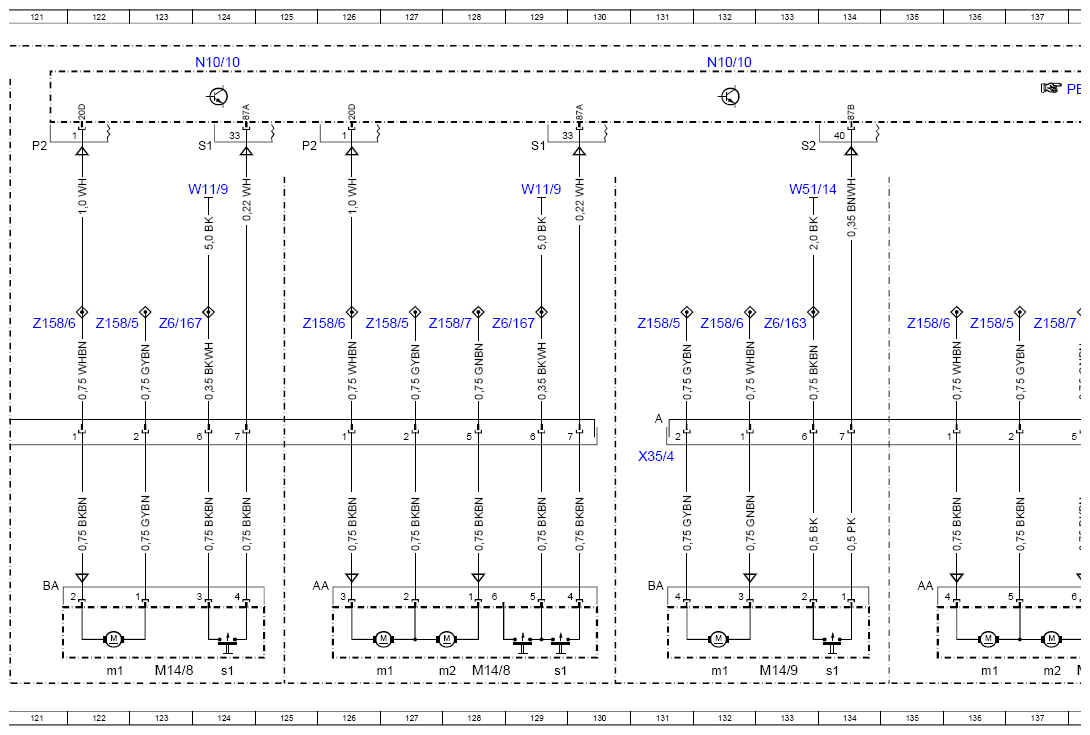

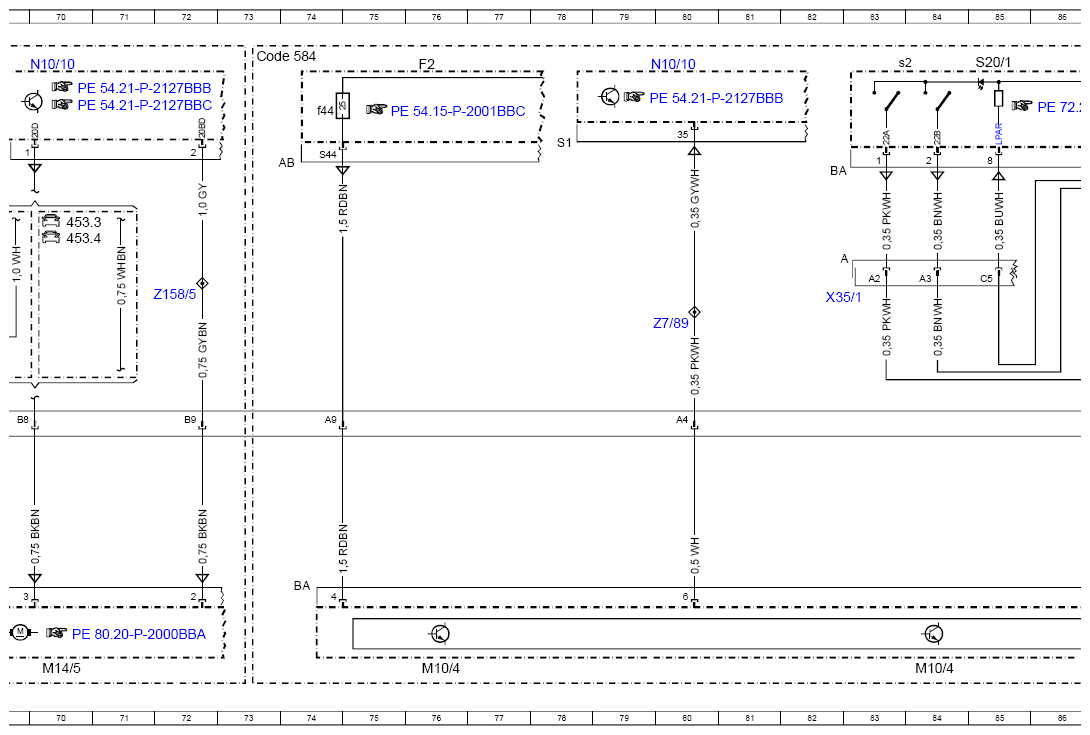

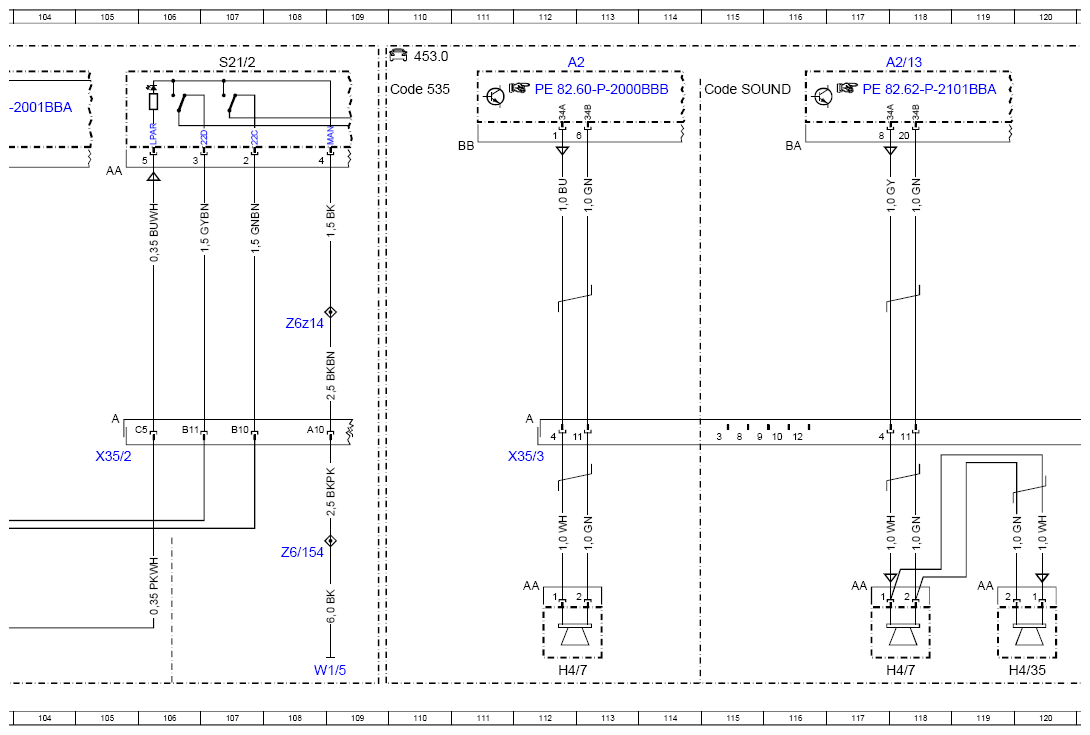

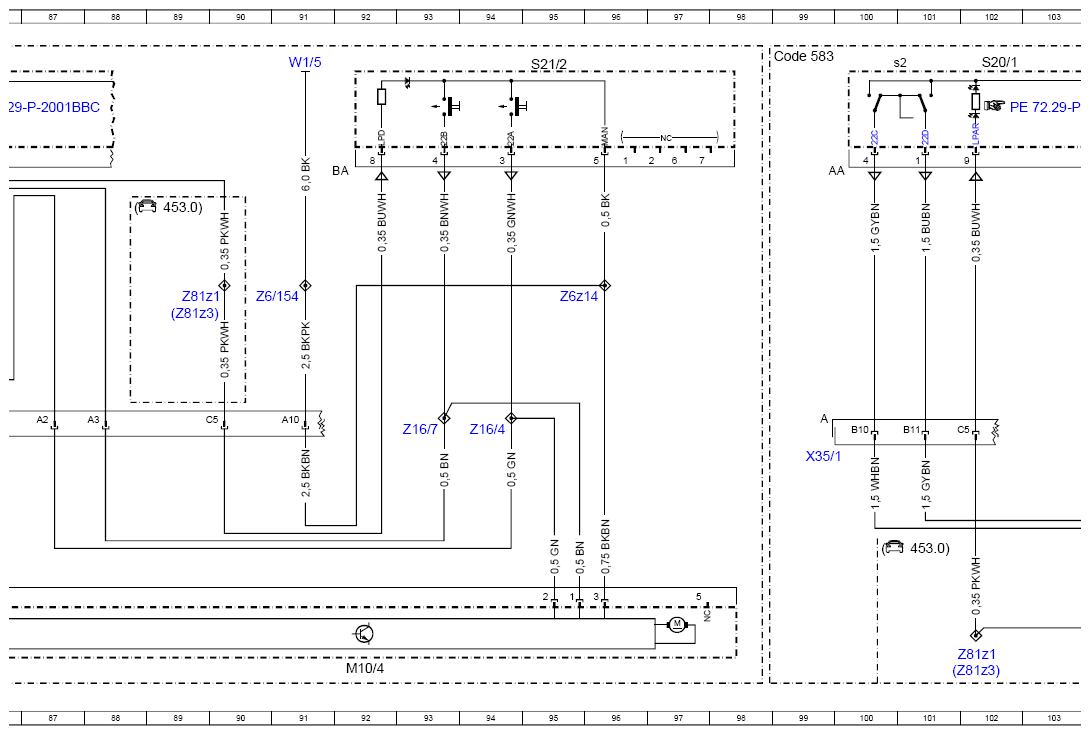

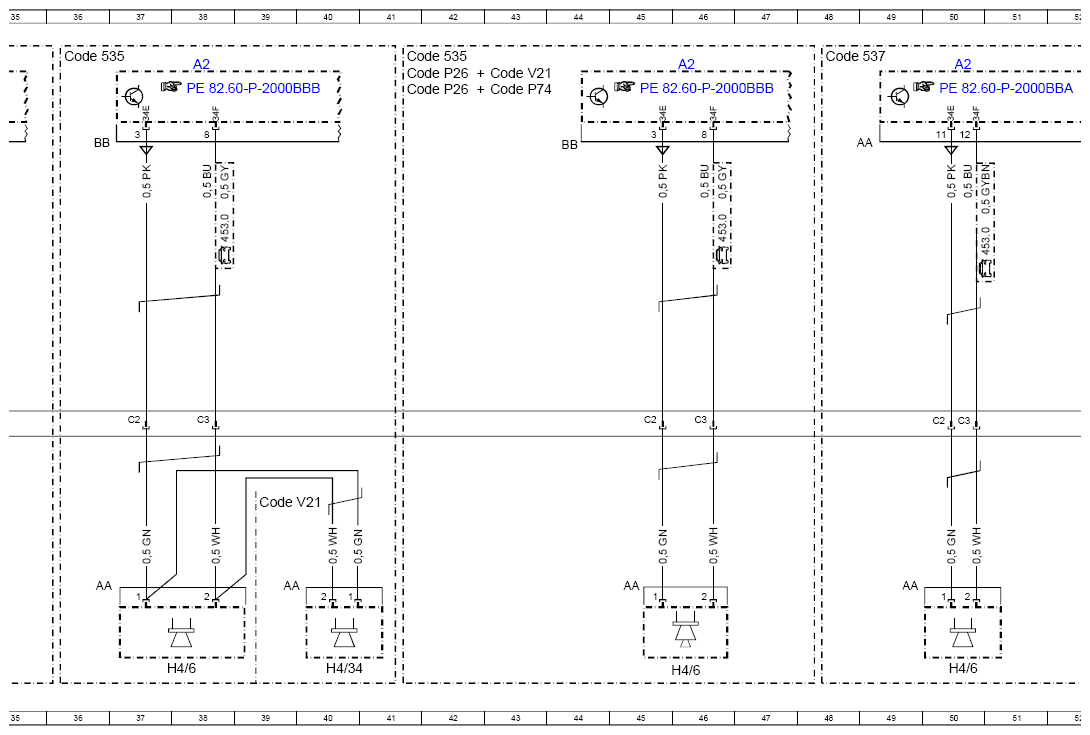

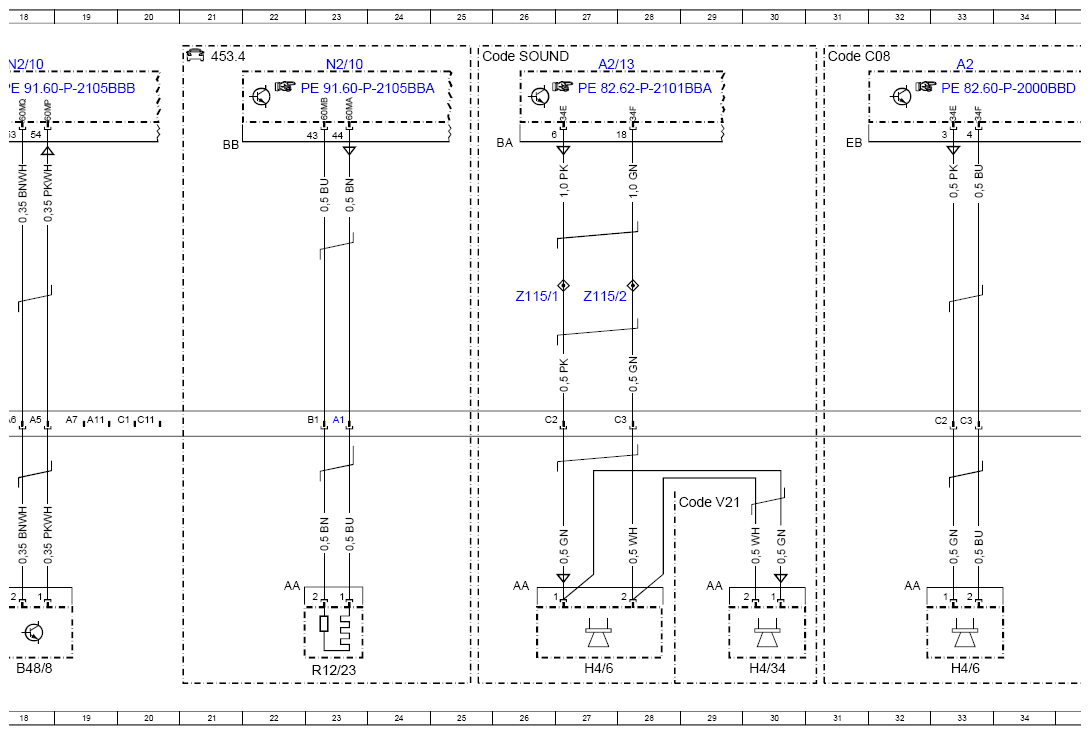

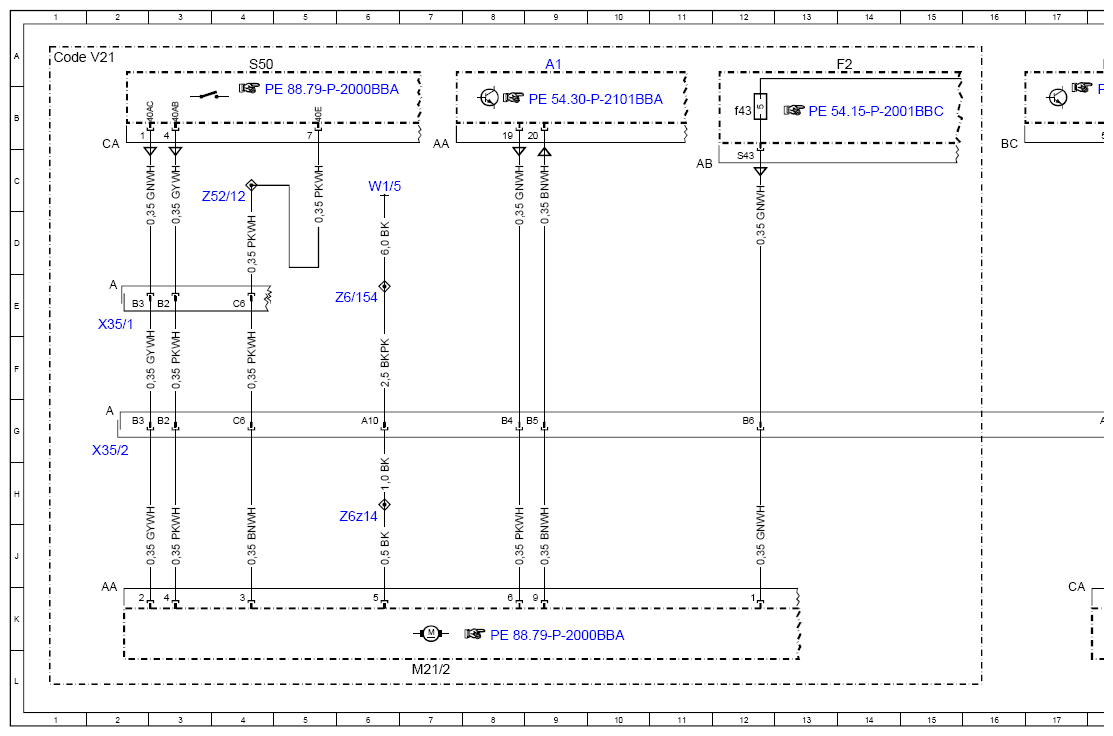

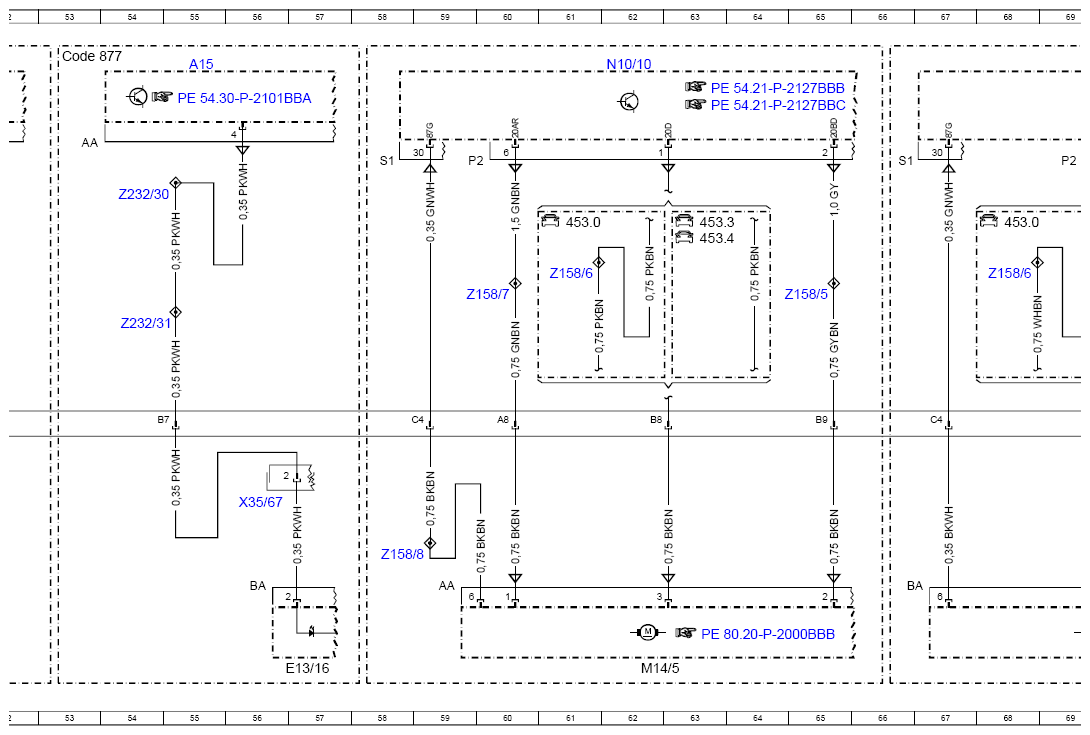

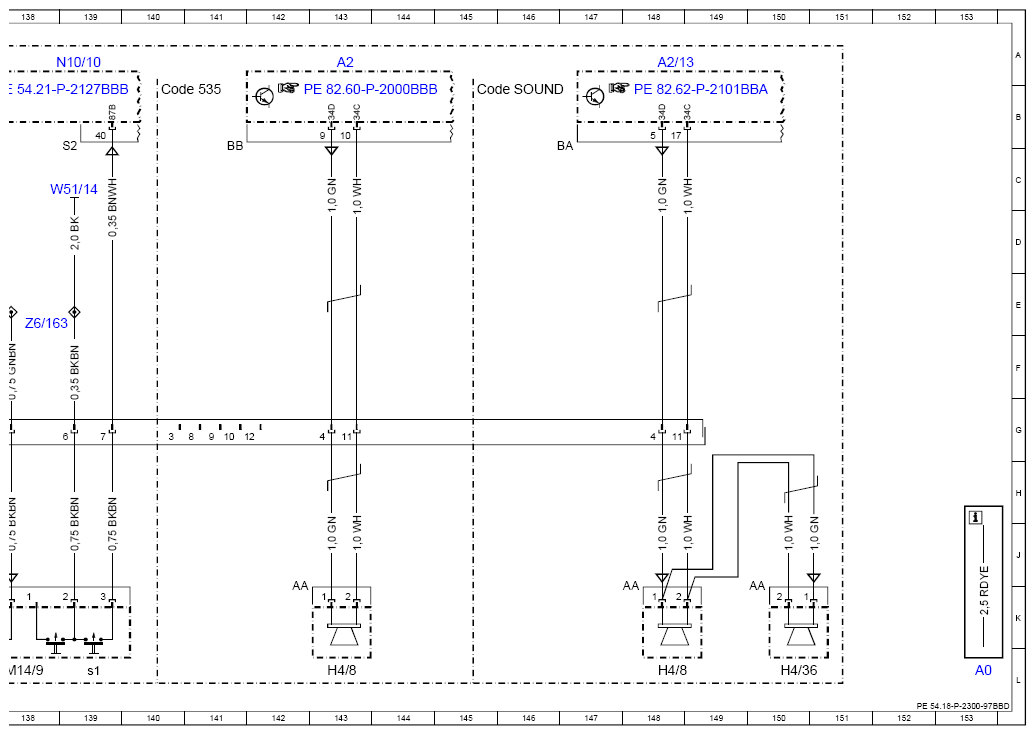

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97BBD
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 Sheet 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A1 | Instrument cluster | 9A |
| A15 | Additional instruments | 55A |
| A2 | Radio | 33A |
| A2 | Radio | 38A |
| A2 | Radio | 46A |
| A2 | Radio | 50A |
| A2 | Radio | 112A |
| A2 | Radio | 143A |
| A2/13 | Sound system amplifier control unit | 27A |
| A2/13 | Sound system amplifier control unit | 118A |
| A2/13 | Sound system amplifier control unit | 148A |
| B48/8 | Right front door pressure sensor | 18L |
| Code 535 | Smart Media System | 36A |
| Code 535 | Smart Media System | 41A |
| Code 535 | Smart Media System | 110B |
| Code 535 | Smart Media System | 140B |
| Code 537 | Smart Audio System | 48A |
| Code 583 | Power windows | 99A |
| Code 584 | Power windows with convenience feature and reversing function | 73A |
| Code 877 | Ambiance illumination | 53A |
| Code C08 | Audio preinstallation incl. rod antenna | 31A |
| Code P26 | Cool & Media Package | 41A |
| Code P26 | Cool & Media Package | 41B |
| Code P74 | Comfort package | 43B |
| Code SOUND | JBL sound system | 25A |
| Code SOUND | JBL sound system | 115B |
| Code SOUND | JBL sound system | 145B |
| Code V21 | Electrically adjustable and heated outside mirror | 28H |
| Code V21 | Electrically adjustable and heated outside mirror | 39H |
| Code V21 | Electrically adjustable and heated outside mirror | 1A |
| Code V21 | Electrically adjustable and heated outside mirror | 43A |
| E13/16 | Right front door ambiance illumination | 57L |
| F2 | Vehicle interior fuse and relay module | 14A |
| F2 | Vehicle interior fuse and relay module | 76A |
| F2f43 | Fuse 43 | 12B |
| F2f44 | Fuse 44 | 74B |
| H4/34 | Right mirror triangle tweeter | 40L |
| H4/34 | Right mirror triangle tweeter | 30L |
| H4/35 | Left rear tweeter | 120L |
| H4/36 | Right rear tweeter | 150L |
| H4/6 | Right front door speaker | 27L |
| H4/6 | Right front door speaker | 38L |
| H4/6 | Right front door speaker | 33L |
| H4/6 | Right front door speaker | 50L |
| H4/6 | Right front door speaker | 46L |
| H4/7 | Left rear speaker | 112L |
| H4/7 | Left rear speaker | 118L |
| H4/8 | Right rear speaker | 148L |
| H4/8 | Right rear speaker | 143L |
| M10/4 | Right front power window motor | 76L |
| M10/4 | Right front power window motor | 84L |
| M10/4 | Right front power window motor | 92L |
| M14/5 | Front passenger door central locking system actuator | 62L |
| M14/5 | Front passenger door central locking system actuator | 70L |
| M14/8 | Left rear central locking actuator | 123L |
| M14/8 | Left rear central locking actuator | 128L |
| M14/8m1 | Left rear central locking actuator motor | 122L |
| M14/8m1 | Left rear central locking actuator motor | 126L |
| M14/8m2 | Left rear additional door lock actuator motor | 128L |
| M14/8s1 | Left rear central locking microswitch | 124L |
| M14/8s1 | Left rear central locking microswitch | 129L |
| M14/9 | Right rear central locking actuator | 138L |
| M14/9 | Right rear central locking actuator | 133L |
| M14/9m1 | Right rear central locking actuator motor | 136L |
| M14/9m1 | Right rear central locking actuator motor | 132L |
| M14/9m2 | Right rear additional door lock actuator motor | 137L |
| M14/9s1 | Right rear central locking microswitch | 134L |
| M14/9s1 | Right rear central locking microswitch | 139L |
| M21/2 | Right electrically adjustable and heated outside mirror | 7L |
| N10/10 | Center SAM control unit | 62A |
| N10/10 | Center SAM control unit | 70A |
| N10/10 | Center SAM control unit | 80A |
| N10/10 | Center SAM control unit | 124A |
| N10/10 | Center SAM control unit | 132A |
| N10/10 | Center SAM control unit | 139A |
| N2/10 | Supplemental restraint system control unit | 23A |
| N2/10 | Supplemental restraint system control unit | 18A |
| R12/23 | Right windowbag squib | 23L |
| S20/1 | Power window switch group, driver side | 85A |
| S20/1 | Power window switch group, driver side | 102A |
| S20/1s2 | Right front power window switch | 83A |
| S20/1s2 | Right front power window switch | 100A |
| S21/2 | Passenger-side power window switch | 95A |
| S21/2 | Passenger-side power window switch | 107A |
| S50 | Outside mirror adjustment switch | 4A |
| W1/5 | Right cockpit ground point | 6C |
| W1/5 | Right cockpit ground point | 108L |
| W1/5 | Right cockpit ground point | 91A |
| W11/9 | Left rear ground point | 124C |
| W11/9 | Left rear ground point | 129C |
| W51/14 | Right rear frame ground connection | 133C |
| W51/14 | Right rear frame ground connection | 139C |
| X35/1 | Left front door electrical connector | 2E |
| X35/1 | Left front door electrical connector | 99H |
| X35/1 | Left front door electrical connector | 82E |
| X35/2 | Right front door electrical connector | 2G |
| X35/2 | Right front door electrical connector | 105H |
| X35/3 | Left rear door electrical connector | 112H |
| X35/4 | Right rear door electrical connector | 131H |
| X35/67 | Front passenger door electrical connector | 56H |
| Z115/1 | Right front speaker connector sleeve (+) | 26E |
| Z115/2 | Right front speaker connector sleeve (-) | 27E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 65E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 72E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 122E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 127E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 131E |
| Z158/5 | Central locking electric motors power supply connector sleeve | 136E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 61E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 68E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 126E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 121E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 132E |
| Z158/6 | Central locking electric motors power supply connector sleeve | 135E |
| Z158/7 | Central locking Superlocking signal connector sleeve | 60E |
| Z158/7 | Central locking Superlocking signal connector sleeve | 128E |
| Z158/7 | Central locking Superlocking signal connector sleeve | 137E |
| Z158/8 | Central locking front passenger door signal (-) connector sleeve | 58J |
| Z16/4 | Passenger-side power window motor "RAISE" signal connector sleeve | 94G |
| Z16/7 | Passenger-side power window motor "LOWER" signal connector sleeve | 93G |
| Z232/30 | Ambiance illumination power supply connector sleeve | 54C |
| Z232/31 | Ambiance illumination power supply connector sleeve | 54E |
| Z52/12 | Outside mirror electric motors power supply connector sleeve | 4C |
| Z6/154 | Ground connection connector sleeve | 6E |
| Z6/154 | Ground connection connector sleeve | 108J |
| Z6/154 | Ground connection connector sleeve | 91E |
| Z6/163 | Ground connection connector sleeve | 133E |
| Z6/163 | Ground connection connector sleeve | 138E |
| Z6/167 | Circuit 31 connector sleeve | 123E |
| Z6/167 | Circuit 31 connector sleeve | 129E |
| Z6z14 | Ground connection connector sleeve | 6H |
| Z6z14 | Ground connection connector sleeve | 95E |
| Z6z14 | Ground connection connector sleeve | 108E |
| Z7/89 | Line signal connector sleeve | 80E |
| Z81z1 | Circuit 58d connector sleeve | 102L |
| Z81z1 | Circuit 58d connector sleeve | 89E |
| Z81z3 | Circuit 58d connector sleeve | 102L |
| Z81z3 | Circuit 58d connector sleeve | 89E |
